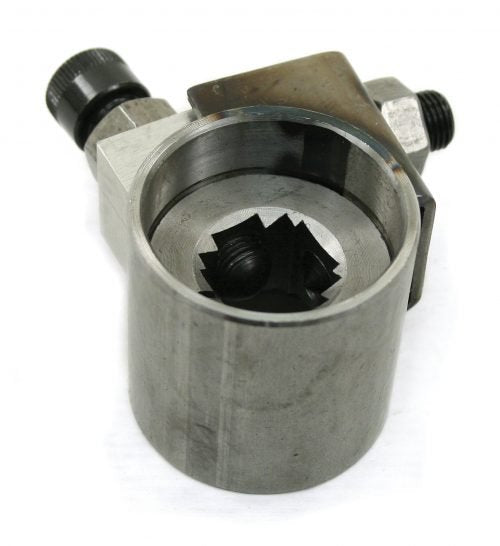

Ball Joint Beam Adjuster — Steel Weld-In Height Control, VW Type 1 1966–1977 (22-2801-0)

Steel weld-in ball joint beam adjuster for VW Type 1 ball joint front suspension. Cut the center section of your front beam and weld this adjuster in to gain full, infinite ride-height adjustability without permanently committing to a single drop or lift setting. EMPI part #22-2801-0.

What a beam adjuster does and why builders install one

The factory VW front beam uses pre-set torsion leaves that lock the ride height at the factory setting (or whatever drop spindle / dropped beam configuration you've installed). Once it's set, changing the ride height means tearing the beam apart again.

A weld-in adjuster replaces a small section of the torsion tube with an adjustable mechanism that lets you turn a center stop, which rotates the inner ends of the torsion leaves and changes the resting angle of the trailing arms — and therefore the ride height — by anywhere from a couple inches of drop to a slight lift, all with a wrench and a few minutes under the car.

This is the standard upgrade for builders who want to dial in the perfect stance, change ride height for shows vs. driving, run dropped spindles plus adjustable drop, or build a custom suspension where you don't yet know the final ride height you'll want.

Specifications

• Material: Steel
• Installation: Weld-in (replaces a center section of the torsion tube)
• Adjustment: Continuous, infinite within the adjustment range
• Application: Ball joint front beam only
• Sold as: Single adjuster (you need one — they fit the center of the beam)
• Part number: 22-2801-0

Fitment

• VW Beetle (Standard, ball joint front): 1966–1977
• VW Karmann Ghia (ball joint front): 1966–1974
• Dune buggies, sand rails, kit cars using a 1966+ VW ball joint front beam

Will NOT fit: Link pin front beams (1965 and earlier Beetles use the older link pin front end with different beam geometry — order the link-pin-specific adjuster instead). Also will not fit Super Beetles, which use a MacPherson strut front suspension, not a torsion beam.

FAQ

Do I need one adjuster or two?
The factory VW front beam has two horizontal torsion tubes (upper and lower). A complete adjustable beam typically uses an adjuster in each tube. Check whether you want to make both adjustable or just one — many builders adjust only the lower tube, leaving the upper at factory setting, which still gives plenty of adjustment range.

Can I install this myself?
Only if you're comfortable cutting and welding a structural suspension component. The beam has to be cut precisely, the adjuster welded in perpendicular to the tube axis, and the surrounding metal preserved. A bad weld here is a serious safety issue. If you're not experienced, take it to a qualified VW shop or fab shop.

How much can I lower my car with this?
The adjuster itself gives you continuous adjustment within a range. The total drop available depends on how the rest of your front end is set up (stock vs dropped spindles, stock vs trimmed torsion leaves, etc.). For a typical Cal-look slammed stance, builders combine the adjuster with dropped spindles and modified leaves. For a mild 1–2" drop, the adjuster alone is usually enough.

Will I lose alignment when I change ride height?
Yes, somewhat. Adjusting ride height changes camber and caster. Plan to re-align the front end after any significant adjustment. For show-vs-drive height changes, many builders find a compromise alignment that works at both settings.

Is this safe for street driving?
A properly-welded, properly-installed adjuster is fully street safe — this is a standard, decades-old upgrade in the VW world. The key word is "properly" — the welds and installation have to be done correctly. Don't compromise on either.

Does this work with my bare R51 German beam?
Yes. Pairing this adjuster with a bare, refurbished German beam is the ideal starting point for a custom Cal-look or resto-mod front end build.
