Washburn Windows Large | VW Beetle Carb Access Panels 11x7.75" | Dual Carb / Big Engine

VW Beetle Extra Large Engine Carburetor Access Panels (11" x 7.75") | Laser Cut

Simplify your engine tuning and maintenance with the largest VW Beetle Carburetor Access Panels available on the market. Designed and manufactured by Washburn's Metal, these heavy-duty panels are the ultimate solution for owners running dual carburetors or high-performance "big engine" builds.

Measuring a generous 11" x 7.75", these access doors provide the maximum clearance possible for syncing carbs, swapping spark plugs, or performing routine maintenance without the struggle of working in a cramped engine bay. We specifically engineered these to cover the largest surface area possible while maintaining the integrity of your factory engine seal trays, ensuring your cooling system remains efficient.

Vehicle Fitment

• VW Beetle (Type 1): All years (1949–1979), Standard and Super

• Best for engines running: Dual Weber IDF/IDA, Dell'Orto, Kadron, HPMX, or other dual carburetor setups; high-displacement "big engine" builds (1776cc+) where engine bay clearance is tight

Note: These panels are intended for use with a tinware-equipped engine bay (i.e., engine still uses seal trays). Open engine bays / pure race applications don't need access panels.

Why Choose Washburn's Metal Access Panels?

• Maximum Clearance: Our "Big Engine" panels offer a massive 11" x 7.75" opening — the largest we make — giving you unparalleled access to your dual-carb setup.

• Precision Engineering: Every panel is laser-cut for a perfect, burr-free fit and a clean, professional appearance in your engine compartment.

• Premium Hardware: Each kit includes high-quality stainless steel button head hardware for a sleek, rust-resistant finish that stands up to heat and vibration.

• Service-Friendly Design: Makes jetting changes, spark plug service, and general top-end adjustments significantly faster and easier.

• Seal Tray Compatible: Designed to provide maximum access without interfering with your rear engine tin or seal trays.

Technical Specifications

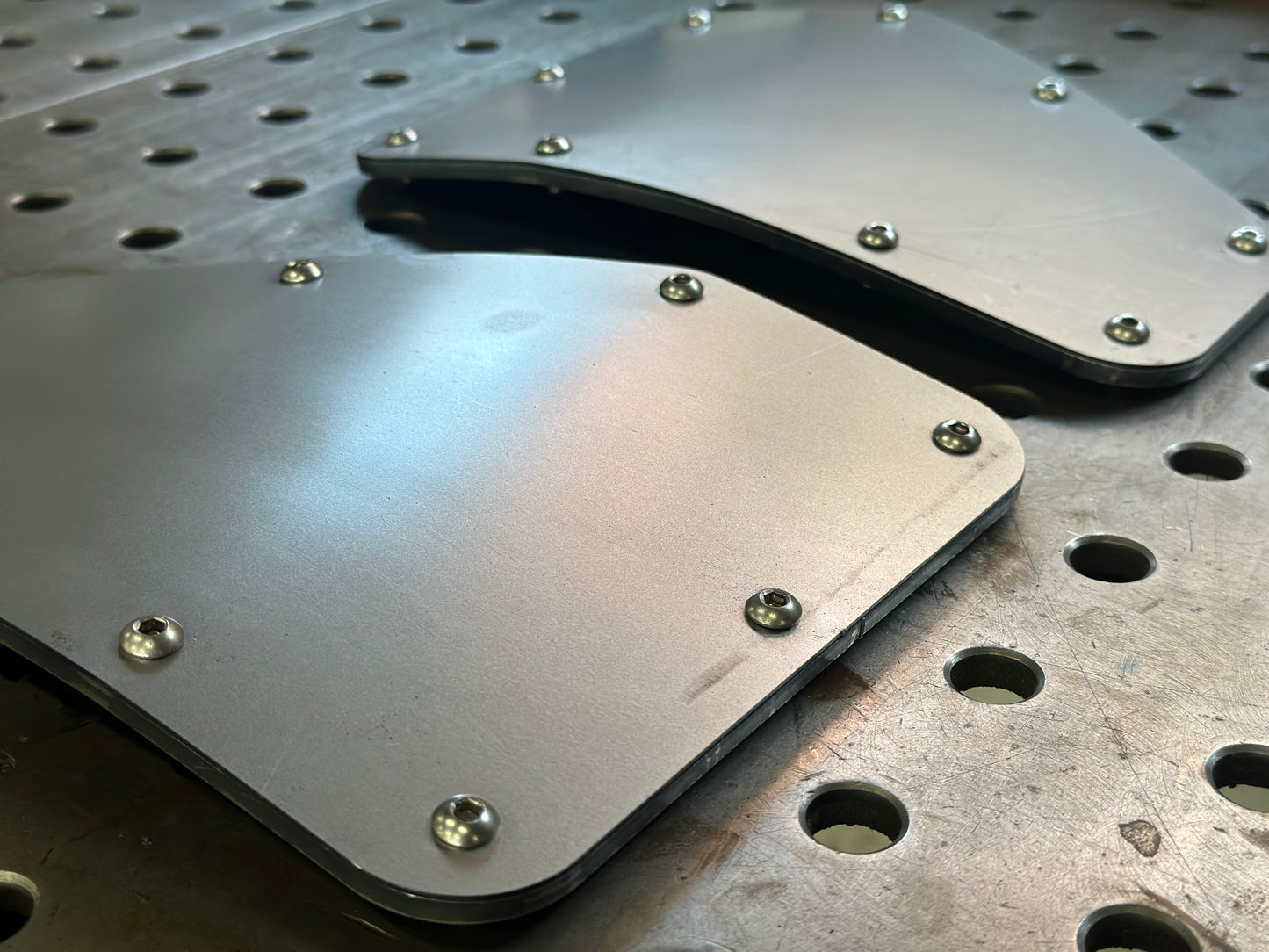

• Dimensions: 11" x 7.75" (sold as a pair — left + right)

• Material: Precision Laser-Cut Steel

• Hardware: Stainless Steel Button Head Bolts included

• Manufacturer: Washburn's Metal (Orange, CA)

• Part Number: #BY01

Frequently Asked Questions

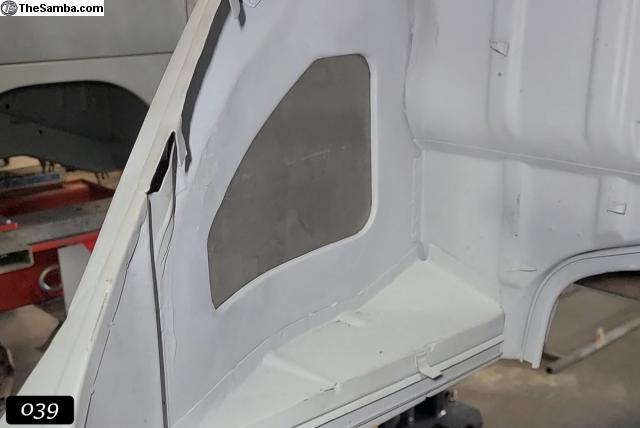

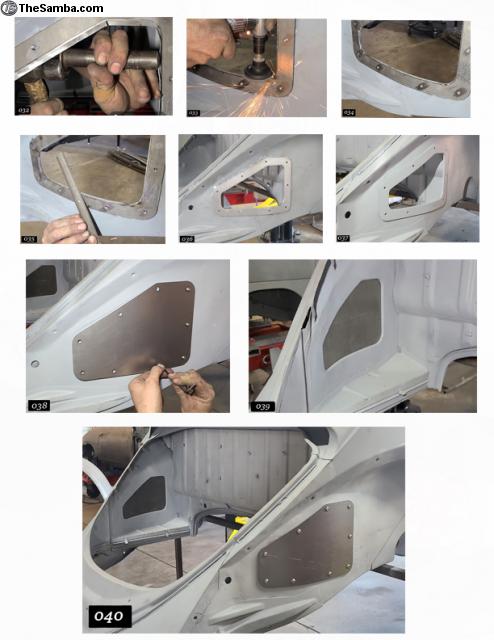

• Do I need to cut my body to install these? Yes — these are weld-in / cut-in panels. You cut a matching opening in the seal trays and weld the panel frames in place. Templates are included.

• What's the difference between the Large and standard Washburn Windows? The Large (this listing) at 11" x 7.75" is sized for dual-carb / big-engine builds. The standard size is smaller and fits stock single-carb engines.

• Will these fit a stock single-carb engine? Yes, but they're overkill. For a stock 1600cc with one carb, our standard-size Washburn Windows give you plenty of access.

• Do these come painted or coated? No — supplied in bare laser-cut steel. Paint, powder coat, or leave raw depending on your build.

• How are they sealed? The flush-fit design seals against the seal tray. We recommend a thin bead of high-temp RTV around the panel edges if you're chasing the last bit of cooling efficiency.

• Will these fit a Super Beetle? Yes — Standard and Super Beetles use the same engine tin layout.
