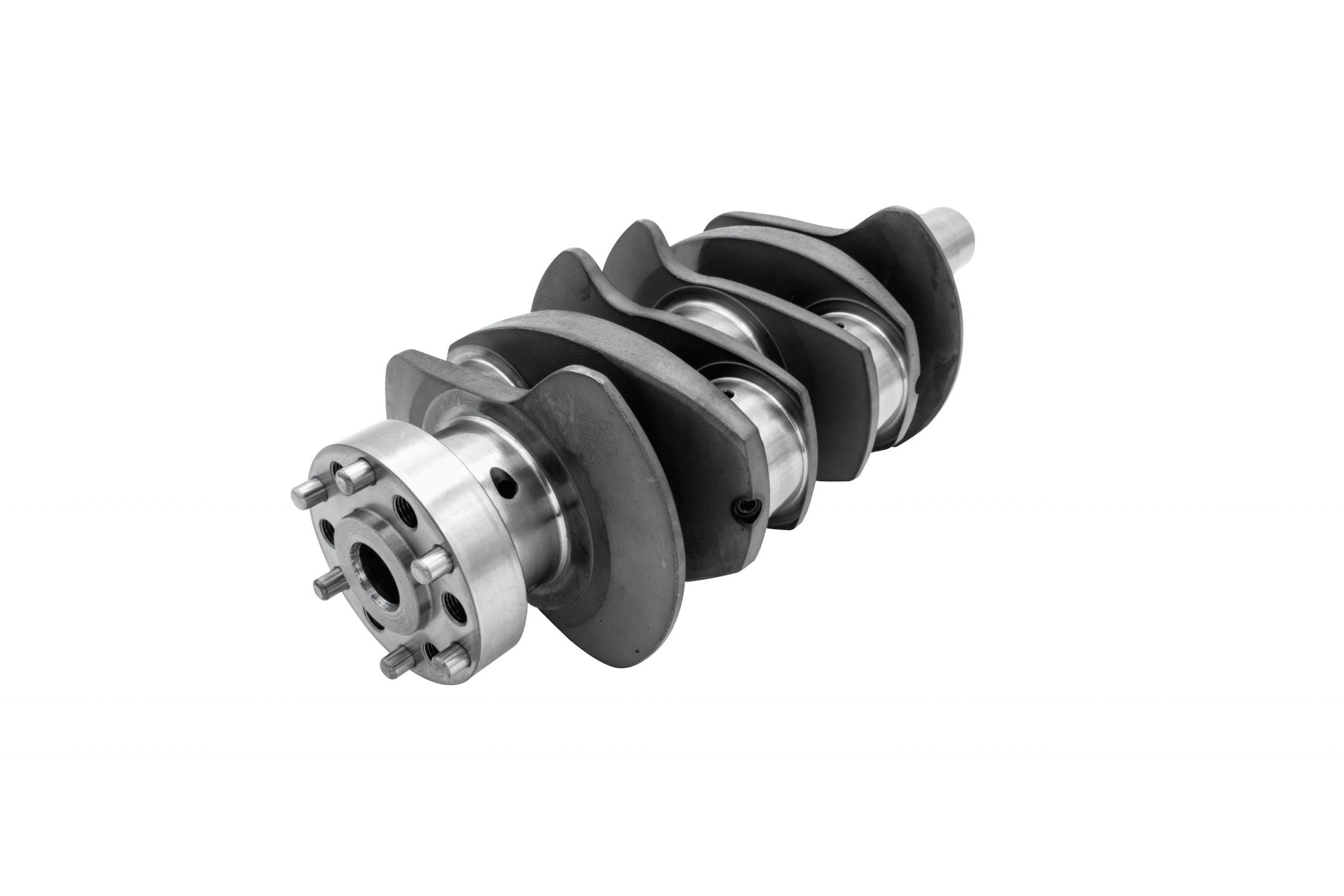

BUGPACK forged flanged crankshaft for high-horsepower air-cooled VW engine builds — forged from 4340 chromoly steel with nitrided Type-IV main journals and Chevy rod journals. The 6-bolt, 6-pin flange eliminates flywheel-to-crank movement that costs power and durability at high RPM. Select your stroke from the dropdown.
Application
High-horsepower air-cooled VW engine builds requiring a forged crank
Builds spec'd for Chevy rod journals (2.000" small-block Chevy)
Type-IV main journal compatibility
Flange-style flywheel mounting (6-bolt, 6-pin)
Why a forged crank
Cast cranks fail at high RPM and high load. A forged 4340 chromoly crank, properly nitrided and balanced, is the foundation for any engine making real power. The Chevy journal allows use of a far wider range of high-end aftermarket rods (Carrillo, Eagle, Manley, Scat, etc.) than the OEM VW journal sizes permit — cost-effective compared to building around custom VW-journal rods.
Stroke options
78mm — B4-0002-5
82mm — B4-0003-1
84mm — B4-0002-6 (big-stroke option)
Specifications
Material: 4340 chromoly forged
Main journals: Nitrided, Type-IV
Rod journals: Chevy (2.000")
Flywheel flange: 6-bolt, 6-pin
Sold as: Each
Weight: ~24 lb (shipping)
About BUGPACK
BUGPACK is EMPI's high-performance engine and chassis line for the air-cooled VW community. The forged crank program targets serious horsepower builds where stock or cast components won't survive.
