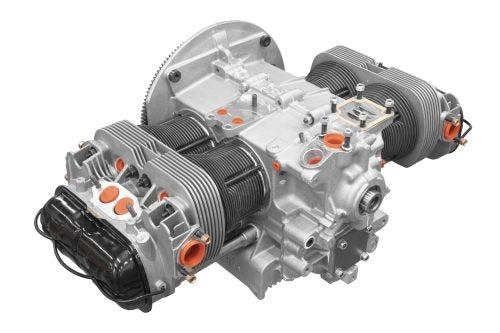

EMPI Long Block Engines are hand assembled in Southern California with ALL NEW ALL EMPI matched and approved components by VW racing legend Jack Sacchette. Available in three standard configurations for Type 1 or 2 applications. No core required, no long lead times-get your Classic VW back on the road today!

Every EMPI Long Block comes with a 12 month Unlimited Miles warranty.

EMPI Long Blocks are assembled with name brand components from AA Performance Products, AutoLinea, Elring, EMPI, OSVAT, Mahle, Manton, Silverline and Schadek

1776cc Long Blocks include new AutoLinea-EMPI HD aluminum cases and EMPI High Performance cylinder heads with S/S valves, chromoly retainers and EMPI proprietary 3 angle valve job performed on a Rottler valve machine at EMPI in Anaheim, California.

All EMPI Long Blocks are palletized, shrink-wrapped, crated and ready to ship.

NOTE: Aluminum Cases must use a steel hub pulley or an aluminum Bolt-in Sand Seal Pulley Kit.

*Pictures shown are for illustration purposes only

*Special Freight policies apply. See your sales rep for details.

*Actual component selection may vary based on worldwide availability.

EMPI PART NUMBER- 98-0482-B

ENGINE CASE- AutoLinea-EMPI, H.D. “Bubble Top” Engine Case

CRANKSHAFT- Direct Drilled, 69mm Stroke

RODS- OE Specification

CAMSHAFT- Stock Cam, .334" Lift, 250º Duration

LIFTERS- Precision Ground and Heat Treated, 28mm

FLYWHEEL- Stock Style, 4 Dowel Pin, 200mm

GLAND NUT- Chromoly, Heavy Duty

MAIN BEARINGS- Standard, Steel Center

ROD BEARINGS- Standard

CAM BEARINGS- Standard Thrust

OIL PUMP- Schadek, 26mm with Cover

HEAD STUDS- Chromoly, 8mm with Nuts

PISTONS & CYLINDERS- OE Specification, 90.5mm Bore, 7.2:1 Compression Ratio

PUSHROD TUBES- Stock Style

HEADS- EMPI High Performance Dual Port Cylinder Head, 90.5 / 92mm Bore, 35.5 Intake x 32mm Exhaust S/S Valves, Single Hi-Rev Valve Springs, Chromoly Retainers, 3 Angle Valve Job Completed on Precision Rottler Seat & Guide Machine at EMPI Anaheim

PUSHRODS- Manton 11.500" OAL x 3/8" Diameter x .035" Wall Thickness

ROCKERS- High Performance, Stock 1.1:1 Ratio

VALVE COVER- Stock Steel Style, Black

GASKETS- Elring Engine Gasket Set

EMPI Long Block Basic Set-Up and Brake In Procedure
