EMPI Competition Merged Exhaust System — 1-5/8\" Mandrel-Bent Header | VW Type 1 (3699)

EMPI Competition Merged Exhaust System — 1-5/8" Type 1

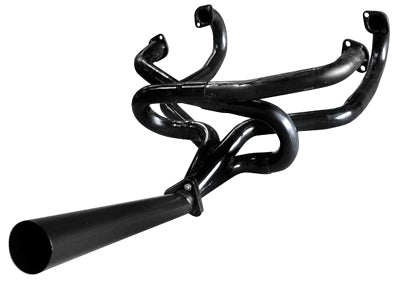

Built for serious performance. The EMPI Competition Merged Header features 1-5/8" mandrel-bent tubing with a hand-cut and fitted longer collector that maximizes exhaust scavenging and unlocks top-end power. Designed for dual-carb performance builds, this header eliminates heater boxes for maximum airflow.

Comes with a non-baffled black stinger and all the gaskets and hardware needed for the stinger. For a quieter setup, add an EMPI merged-compatible muffler (part numbers 3700, 55-3700, 3701, 3702, or 3703).

Highlights:

• 1-5/8" mandrel-bent tubing
• Hand-cut, hand-fitted long collector for maximum scavenging
• No heater boxes — pure performance setup
• Includes non-baffled black stinger
• Includes flange gaskets and stinger mounting hardware

Specifications:

• Part #: 3699
• Engine Fit: Type 1 air-cooled engines (1300-1600cc base, dual carb)
• Vehicle Fit: VW Beetle, Karmann Ghia, Type 3
• Finish: Black (paint burns off after install — recommend stripping and re-coating with high-temp paint)

Important Notes:

• Not for use with single carburetors — the exhaust has no heat riser attachments
• If using black paint, strip it before install or it will burn off in the first few hours
• Compatible muffler must be purchased separately for street use

Compatible Mufflers (sold separately):

• EMPI #3700 — Standard merged muffler
• EMPI #55-3700 — Stainless merged muffler
• EMPI #3701 / 3702 / 3703 — Premium quiet pack options
