EMPI Deluxe GT-5 Camshaft Kit | VW Type 1, 2 & 3 | Cam, Lifters & Gear Set (77-3102-0)

EMPI Deluxe GT-5 Camshaft Kit — Cam, Lifters & Gear | VW Type 1, 2 & 3 (.458" Lift, 270°)

EMPI takes the guesswork out of matching a cam to its lifters and gear. The Deluxe GT-5 Camshaft Kit (77-3102-0) bundles the GT-5 profile with the exact lifters, gear, and hardware it was designed to run with — so your build or rebuild goes together right the first time.

The GT-5 delivers high lift with shorter duration for strong mid-range torque, making it well suited to larger-displacement air-cooled builds.

Vehicle Fitment

• VW Type 1, Type 2 (pre-1971) & Type 3: 1200–1600cc air-cooled engines — Beetle, Super Beetle, Karmann Ghia, Bus (pre-71), Type 3, Thing, Buggy, Baja

• Not confirmed for: 1971-and-later Type 2 and Type 4 / 914 (different cam/case), or engines needing a stock-replacement-only profile

Why Choose EMPI?

EMPI matches every component in this kit to work together — the lifter face is ground to the GT-5 lobe taper, and the cam, gear, and hardware are supplied as a single engineered package for a correct, repeatable valvetrain setup.

Key Features & Benefits

• GT-5 Camshaft: New chilled cast-iron billet, Parkerized for trouble-free break-in and stroker-clearanced out of the box

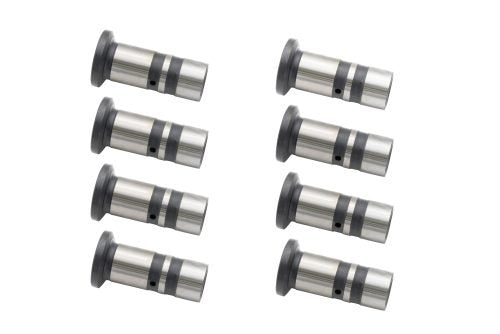

• Matched Lifters: 8 phosphate-treated 28mm convex-face lifters in heat-treated 4130 chromoly, matched to the GT-5 lobe taper

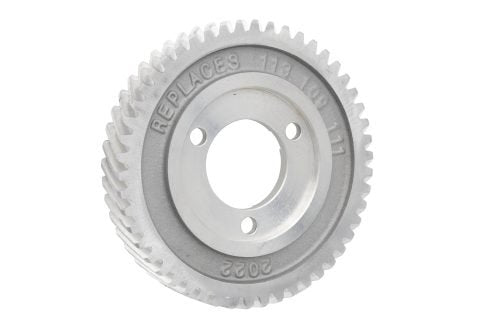

• Precision Cam Gear: CNC-machined T6 aluminum gear for accurate timing

• Complete Kit: Grade 8 hardware, timing card, and assembly lube included

• Mid-Range Power: High lift with shorter duration for strong mid-range torque on larger-displacement builds

Technical Specifications

• Profile: GT-5

• Valve Lift: .458" @ 1.1:1 rocker ratio

• Cam Lift (gross): .416"

• Advertised Duration: 270°

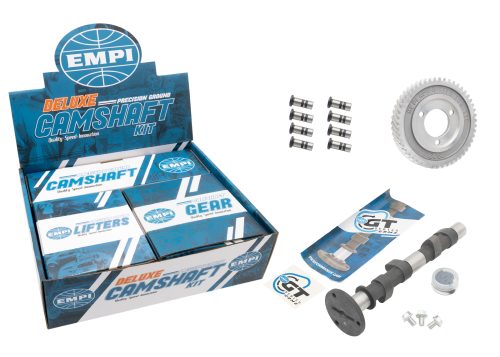

• Includes: Camshaft, 8 lifters, cam gear, Grade 8 hardware, timing card, assembly lube

• Brand: EMPI

• Part Number: 77-3102-0

• UPC: 707924305470

Frequently Asked Questions

• What's in the kit? The GT-5 cam, 8 matched phosphate lifters, a T6 aluminum cam gear, Grade 8 hardware, a timing card, and assembly lube.

• Does it fit my engine? Type 1, pre-1971 Type 2, and Type 3, 1200-1600cc. Not for 1971+ Type 2 or Type 4.

• Do I need to run EMPI lifters? Yes — they're included, and the lifter face is matched to this cam's lobe taper. Don't substitute generic lifters.

• What oil should I use? A break-in oil with ZDDP/ZDTP (or an additive), required for any flat-tappet cam.

• What's the part number? EMPI 77-3102-0 (UPC 707924305470).
