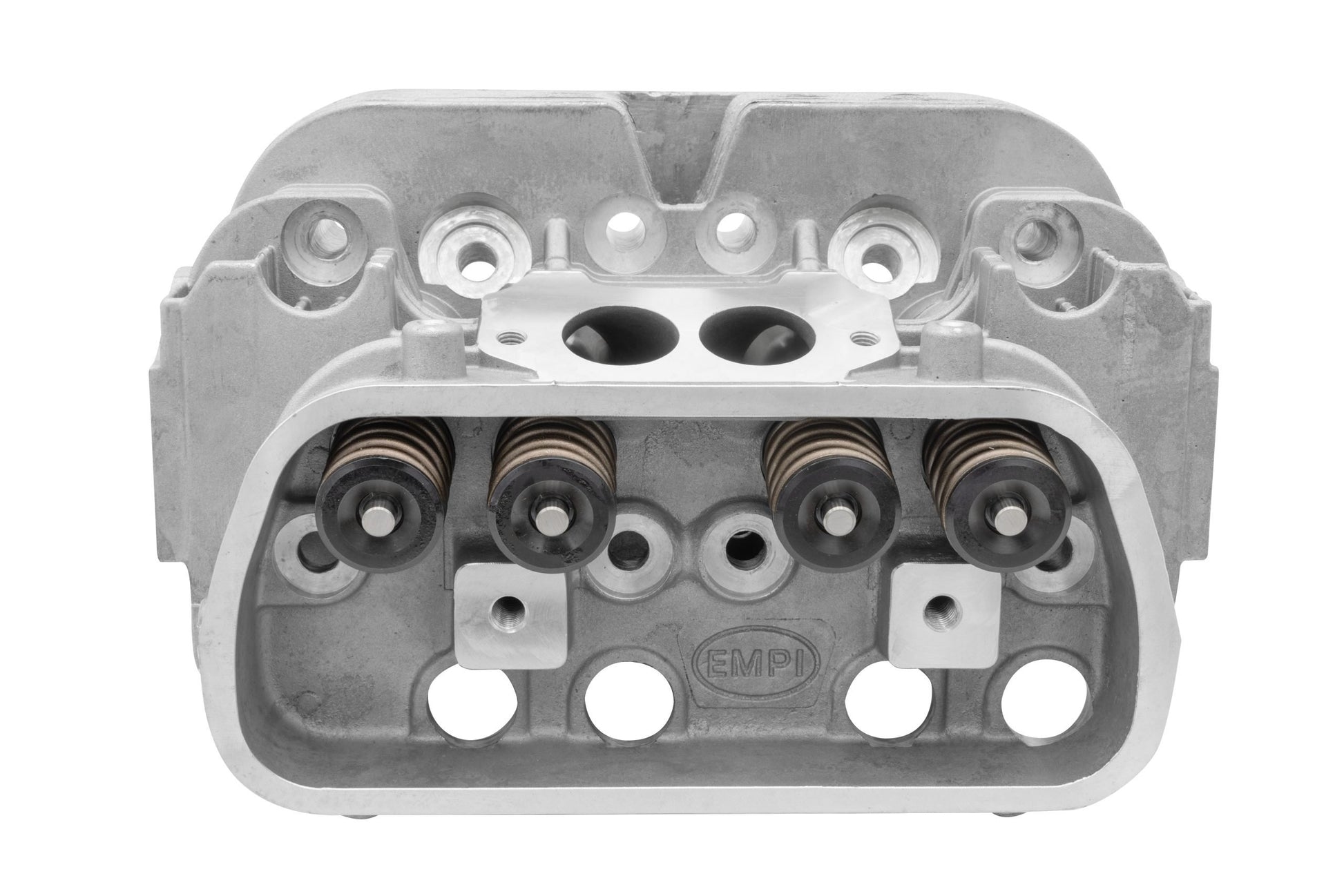

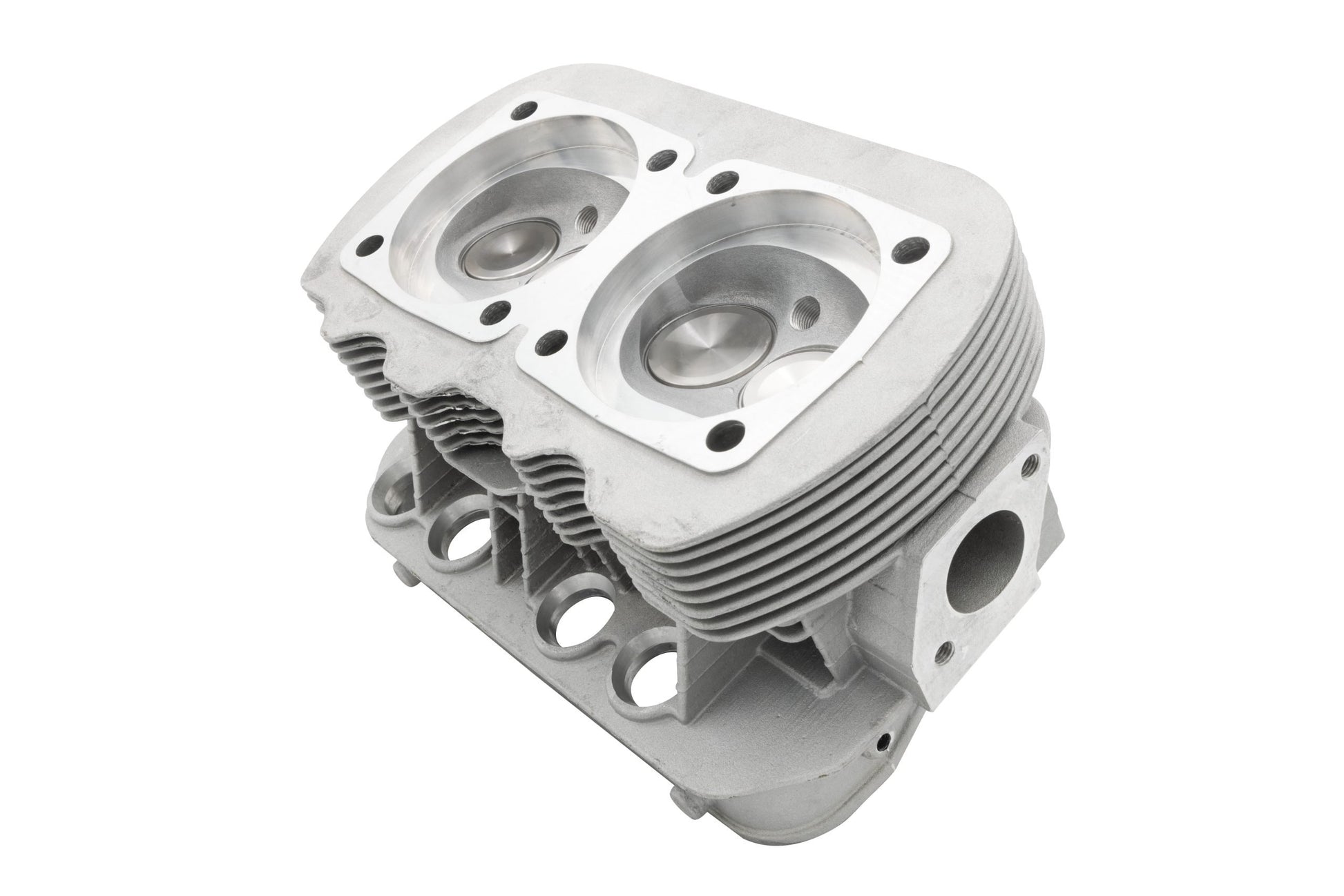

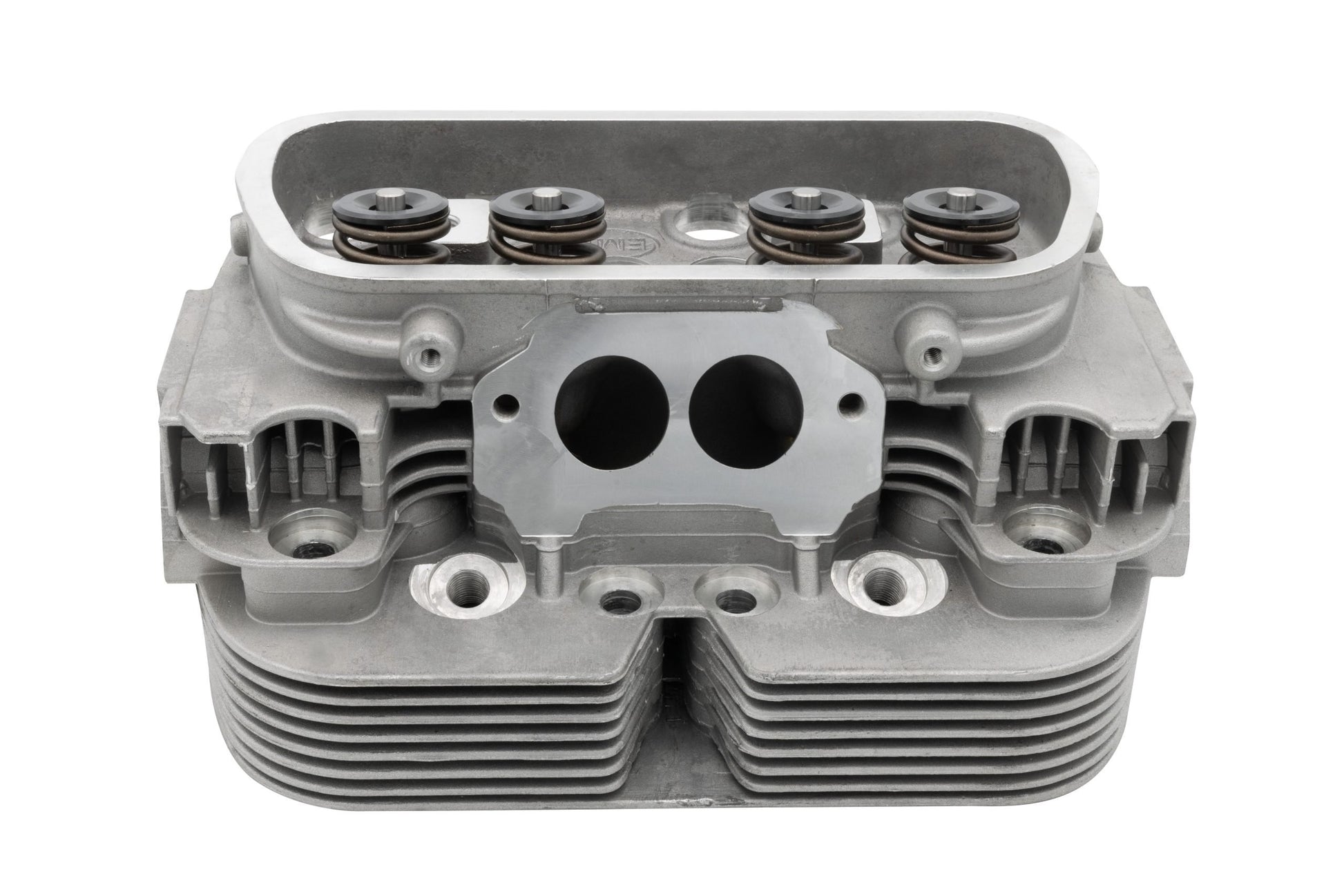

GTV-2 Dual Port Cylinder Head : 40 x 35.5 S/S Valves : Single Springs : 85.5mm Bore : EMPI

The EMPI GTV-2 Cylinder head casting out-classes all the competition! Beefed-up intake and exhaust ports allow massive porting without the need for welding. Made from a special aluminum alloy for strength and durability, and fully repairable. Intake and exhaust ports are 20% larger than stock, with added material around the combustion chamber for deep fly cutting and thick interior walls for porting.

The GTV-2 casting allows you to run as-is for an exceptional performance head, or hand/CNC port it from mild to wild. Machined for 12mm 3/4" reach plugs.

Features

• 85.5mm bore, GTV-2 dual port casting
• 40mm intake / 35.5mm exhaust stainless steel Manley valves
• Single hi-rev valve springs
• Chromoly retainers and hardened keepers
• Bronze valve guides
• 20% larger intake and exhaust ports than stock

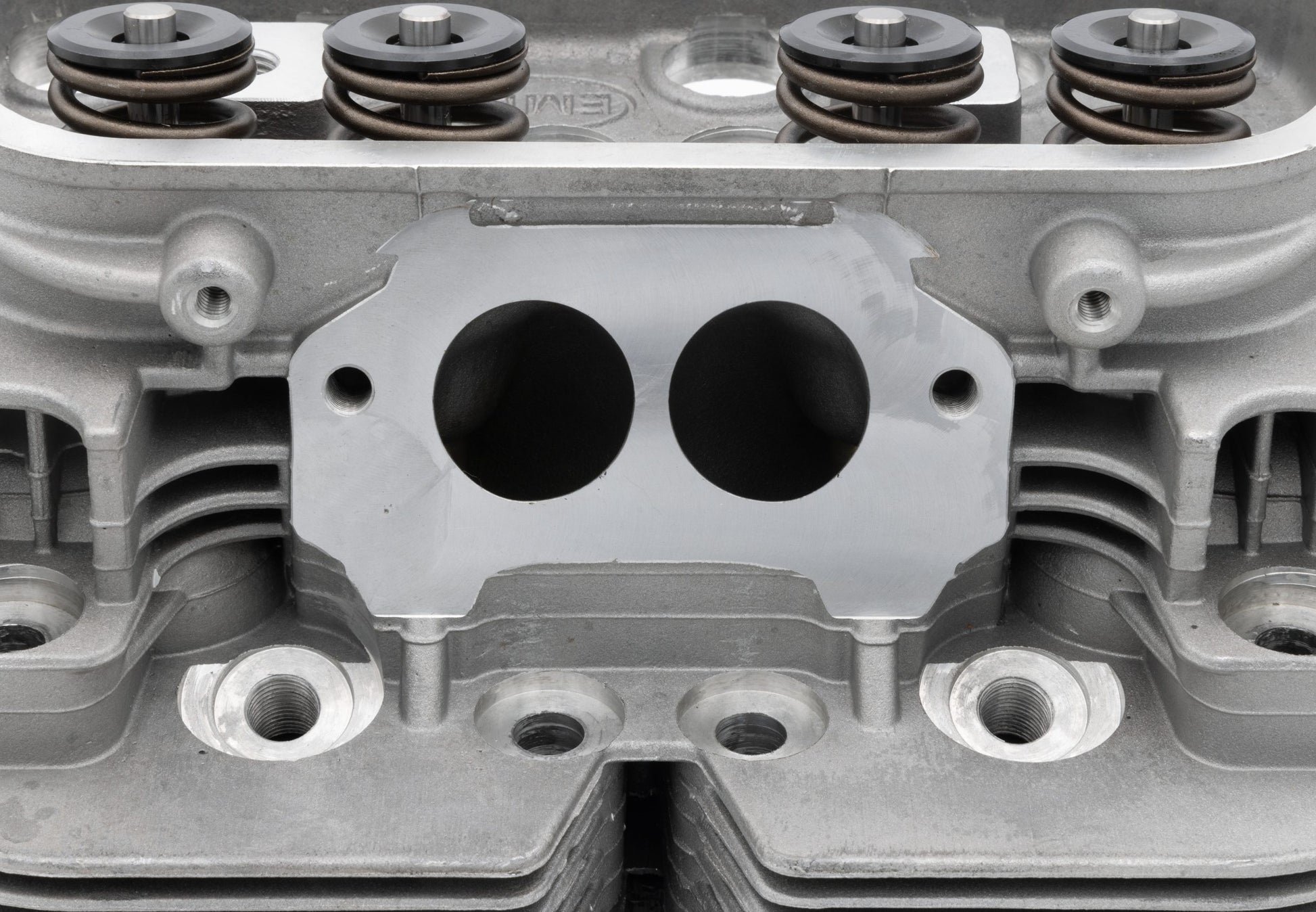

• Added material around combustion chamber for deep fly cutting
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• 3-angle performance valve job
• Sold each

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs (e.g., NGK D8EA) must be used in place of stock Bosch plugs.

Fitment

• Type 1 Beetle dual port (1971-1979)
• Type 2 Bus dual port (1971+)
• Karmann Ghia dual port (1971-1974)
• Type 3 / Thing dual port
• Compatible with 85.5mm or 87mm pistons & cylinders

Shipping Information

• Shipping Weight: 14 lbs
• Shipping Box Dimensions: 12 x 9 x 7 in
