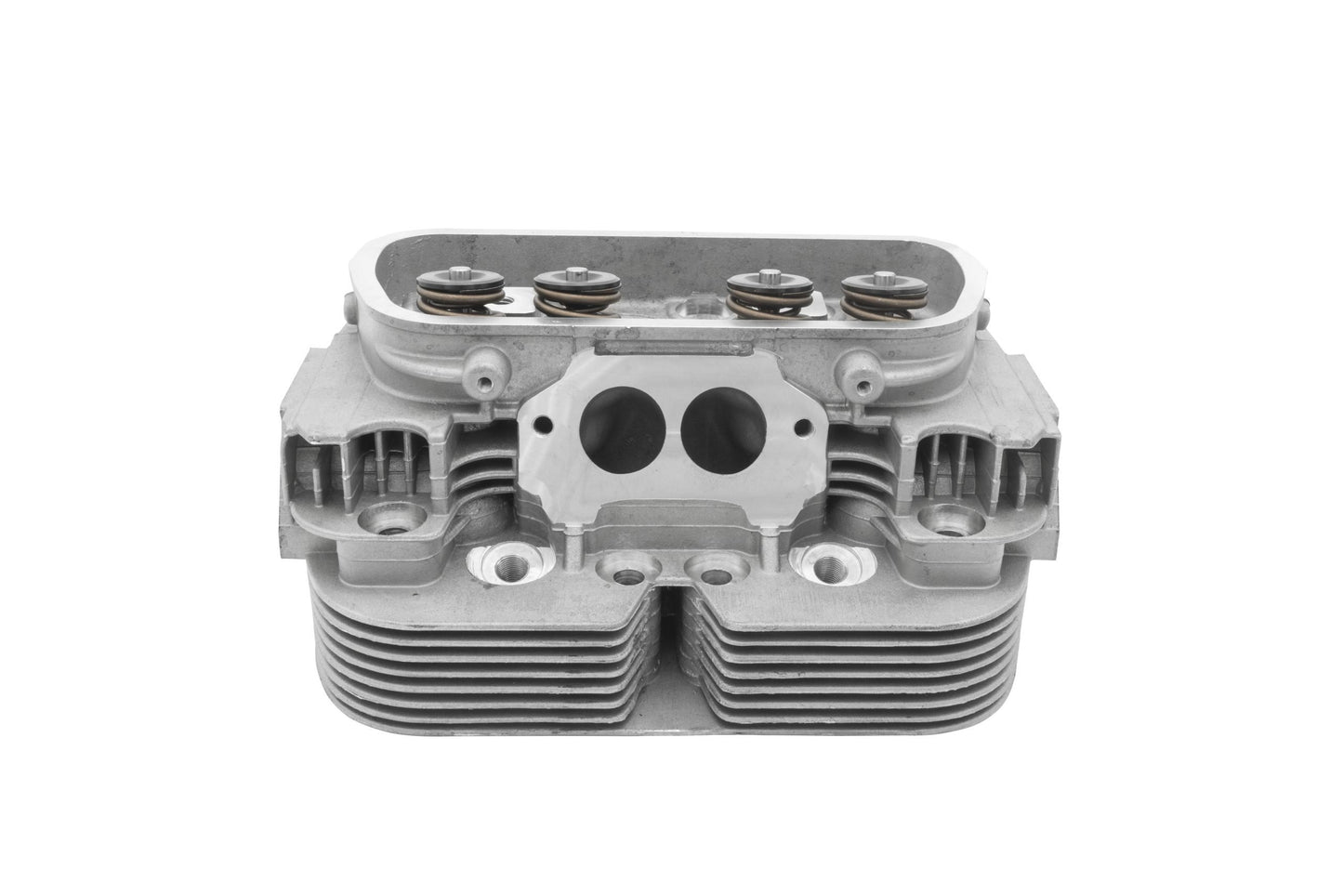

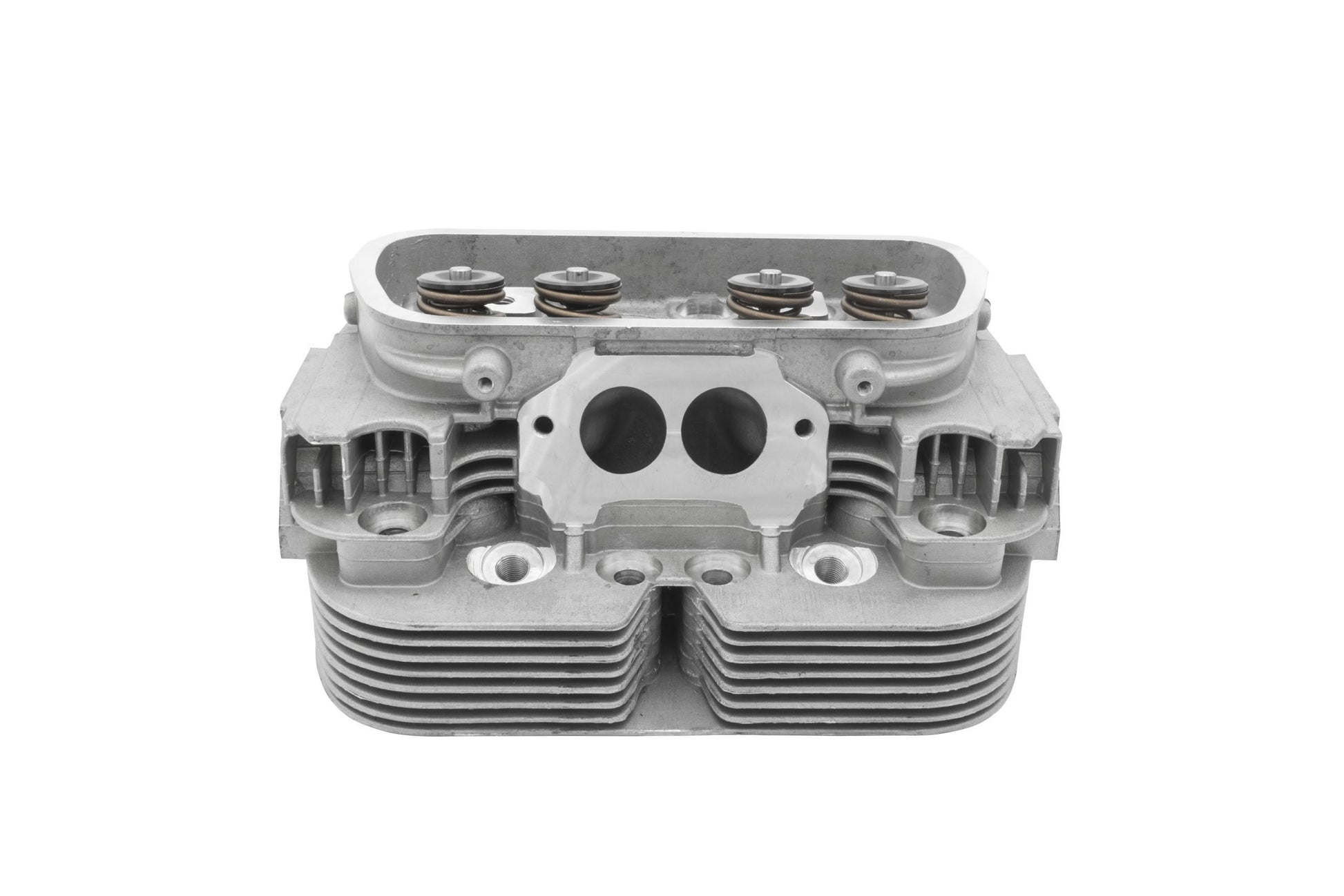

GTV-2 Dual Port Cylinder Head : 42 x 37.5 S/S Valves : Dual Springs : 94mm Bore : EMPI

EMPI GTV-2 Complete Racing Cylinder Head for air-cooled VW. Built on the proven GTV-2 casting and machined for 94mm pistons, then assembled with massive 42mm intake and 37.5mm exhaust stainless steel Manley valves and dual hi-rev springs for serious high-RPM performance. The extra-large valves require the dual-spring valvetrain to keep up with high-lift cams.

The GTV-2 casting features 20% larger intake and exhaust ports than stock, with added material around the combustion chamber for deep fly cutting and thick interior walls for porting.

Features

• 94mm bore, GTV-2 dual port casting
• 42mm intake / 37.5mm exhaust stainless steel Manley valves (3-groove)
• Dual hi-rev valve springs
• Chromoly retainers and hardened keepers
• Bronze valve guides

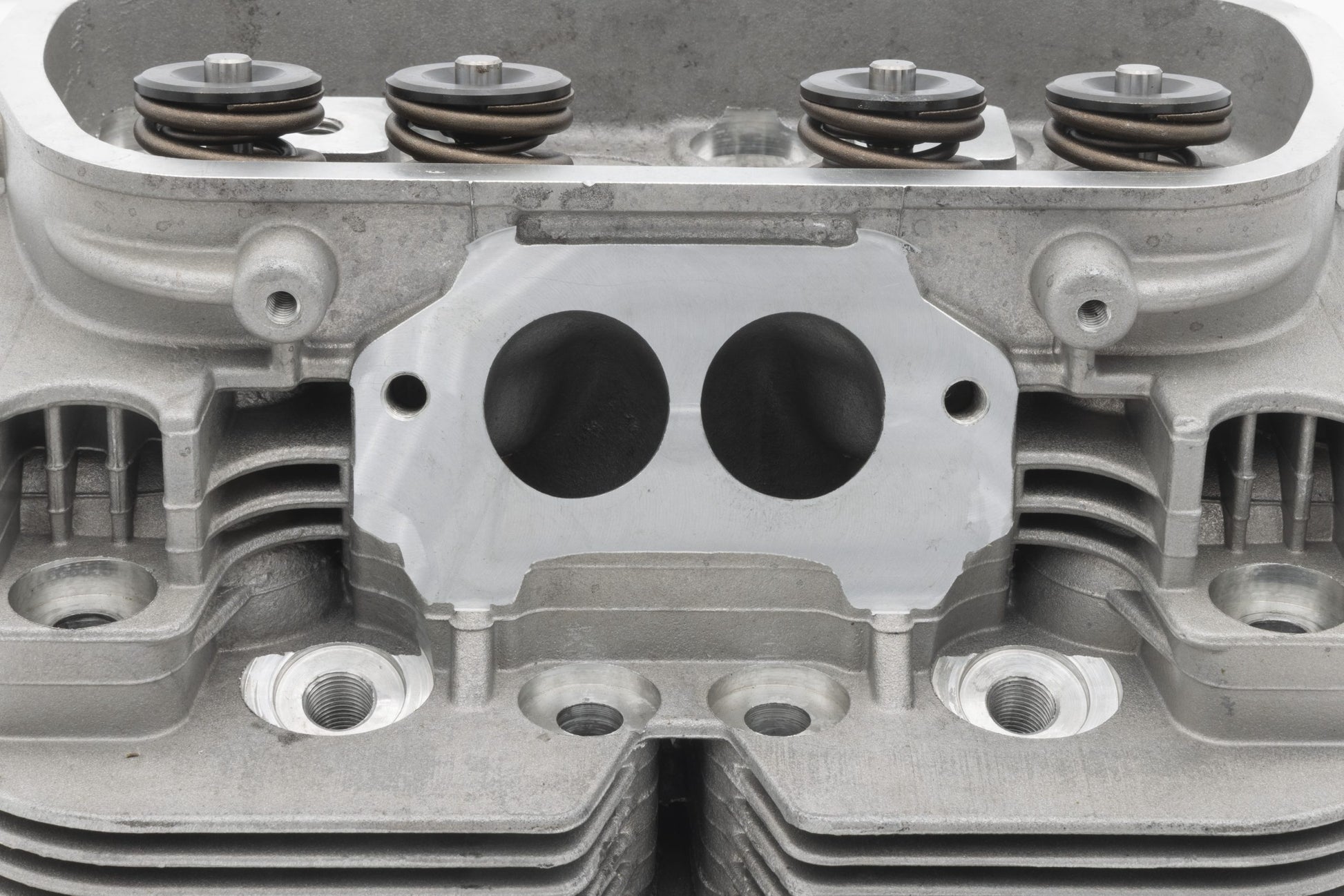

• 57cc combustion chamber
• 20% larger intake and exhaust ports than stock
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• Competition 3-angle valve job
• Sold each

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs (e.g., NGK DCPR8E) must be used in place of stock Bosch plugs.
• Verify rocker arm geometry and check for coil bind with dual springs.

Fitment

• Compatible with 1914cc / 2110cc / 2276cc / 2332cc stroker builds (94mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port performance builds
• Recommended for high-lift / high-RPM racing camshafts

Specifications

• Combustion Chamber: 57cc
• Cylinder Head Material: Special Aluminum Alloy

Shipping Information

• Shipping Weight: 14 lbs
• Shipping Box Dimensions: 12 x 9 x 7 in

WARNING: This product can expose you to chemicals including Lead known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov. All parts legal for use on pre-pollution controlled vehicles only.
