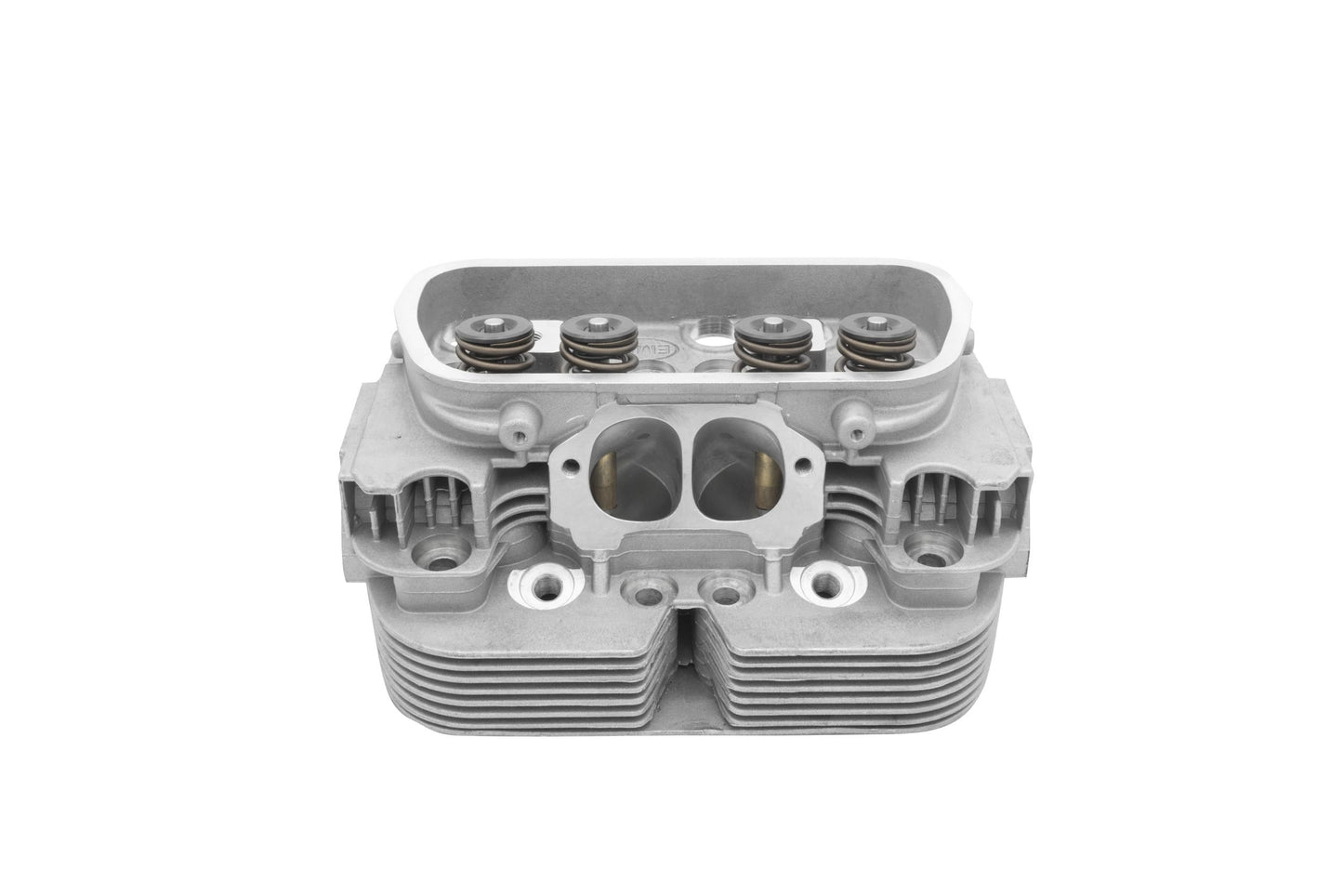

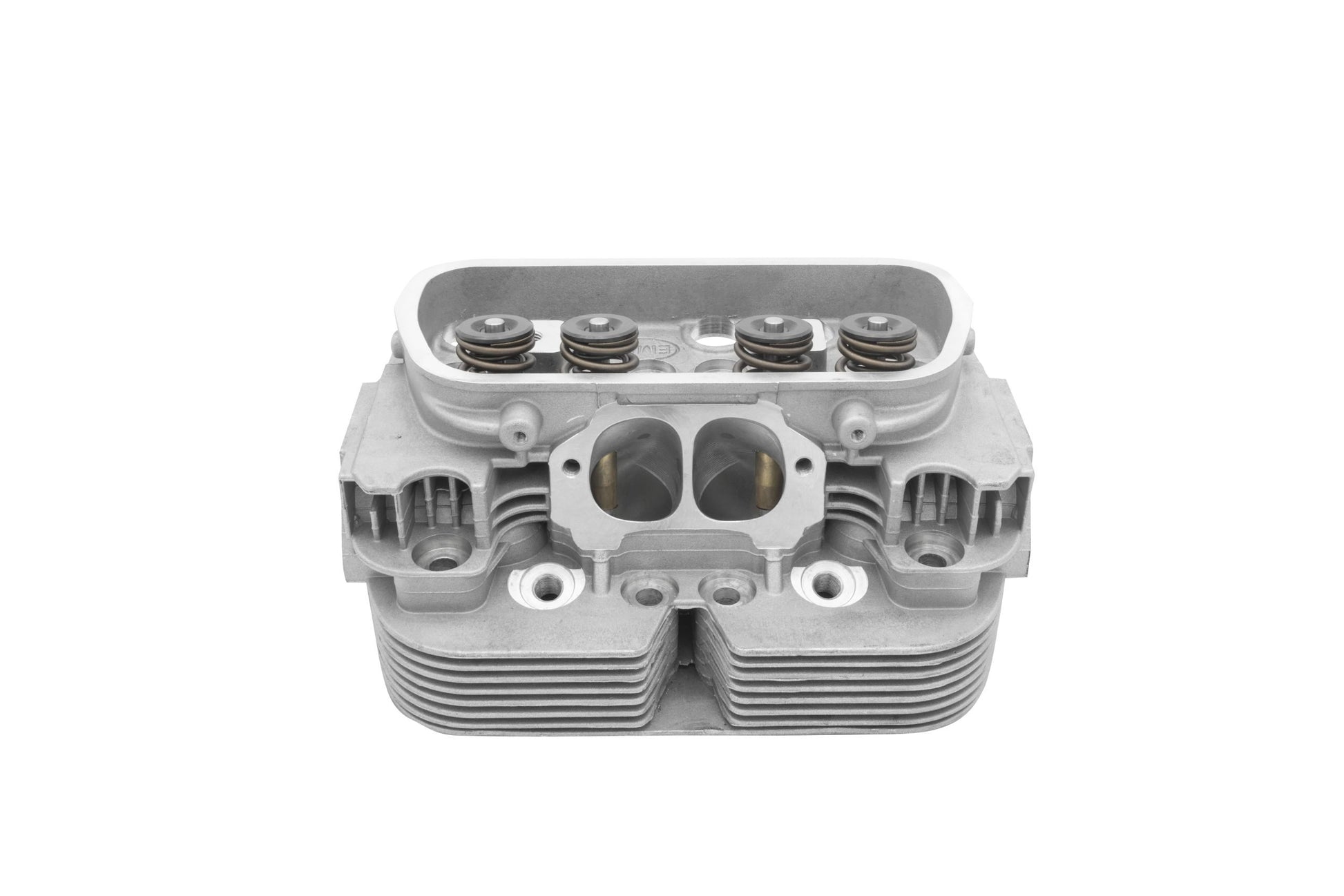

GTV-2 Stage 3 CNC Wedge Ported Cylinder Heads : 44 x 37.5 S/S Valves : Dual Springs : 94mm Bore : Pair : EMPI

The pinnacle of the EMPI GTV-2 wedge-port lineup. These Stage 3 heads start as a pair of GTV-2 castings, machined to 94mm bore, then CNC-ported to the massive Stage 3 wedge port design and cut for huge 44mm intake and 37.5mm exhaust valves. Flows up to 210 CFM out of the box for serious bolt-on horsepower.

The GTV-2 castings feature additional material around the combustion chambers to allow for deep fly cutting, and the spark plug is positioned away from the valve seats to eliminate stress cracks.

Features

• 94mm bore, GTV-2 dual port casting
• Stage 3 Wedge-Port CNC machining — flows 210 CFM
• 5-axis CNC mill for repeatable, consistent porting
• 44mm intake / 37.5mm exhaust stainless steel Manley Race Master valves
• Dual hi-rev valve springs
• Chromoly retainers and hardened Manley valve locks
• Bronze valve guides
• 64cc combustion chamber volume
• 80cc intake volume / 75cc exhaust volume
• 20% larger than stock intake and exhaust ports
• Custom intake gasket included
• 12mm 3/4" reach spark plug holes (recommend NGK DCPR8E)
• Rocker, exhaust, and intake studs included
• Competition 3-angle valve job

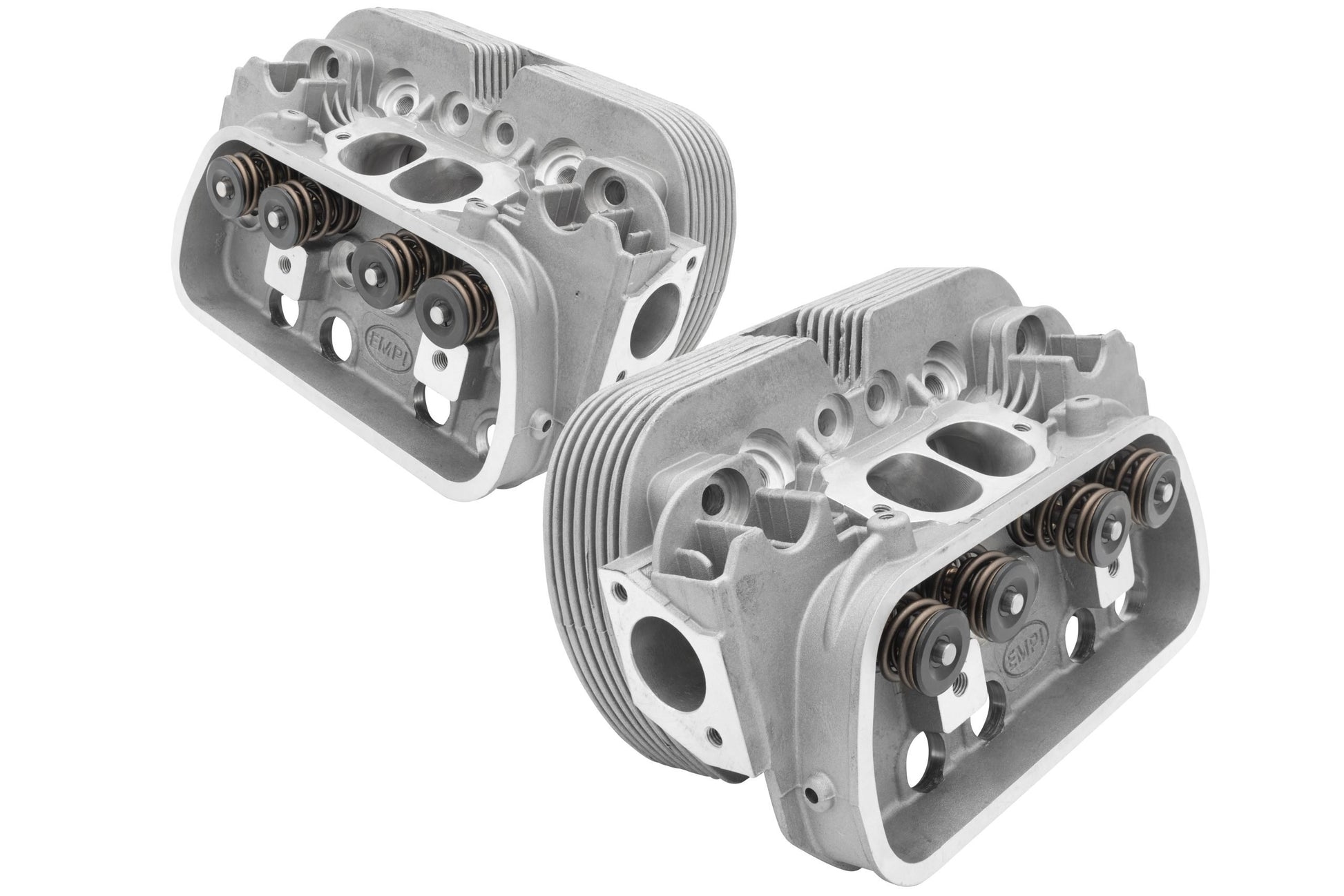

• Sold as a matched pair

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs (NGK DCPR8E recommended) must be used in place of stock Bosch plugs.
• Verify rocker arm geometry and check for coil bind with dual springs.

Fitment

• Compatible with 1914cc / 2110cc / 2276cc / 2332cc stroker builds (94mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port high-performance builds
• Recommended for high-lift / high-RPM racing camshafts

Specifications

• Combustion Chamber: 64cc
• Intake Volume: 80cc
• Exhaust Volume: 75cc
• Flow: 210 CFM @ .650" lift

Shipping Information

• Shipping Weight: 28 lbs (pair)
• Shipping Box Dimensions: 18 x 12 x 9 in
