EMPI Oil Change Gasket Kit — Complete Service Set | VW Type 1, 2, 3 Air-Cooled (00-9909-B)

EMPI Oil Change Gasket Kit - VW Air-Cooled Type 1 / Type 2 / Type 3

Part Number: 00-9909-B | Alternative P/N: 113-198-031 | UPC: 707924343588 | Sold: Each

The most-used gasket kit in the air-cooled world. Every Type 1, Type 2, and Type 3 oil change needs fresh gaskets to seal properly — reusing an old, compressed strainer plate gasket is the fastest way to leave a puddle in your driveway. This complete EMPI Oil Change Gasket Kit gives you everything required for a clean, leak-free oil service in one inexpensive package.

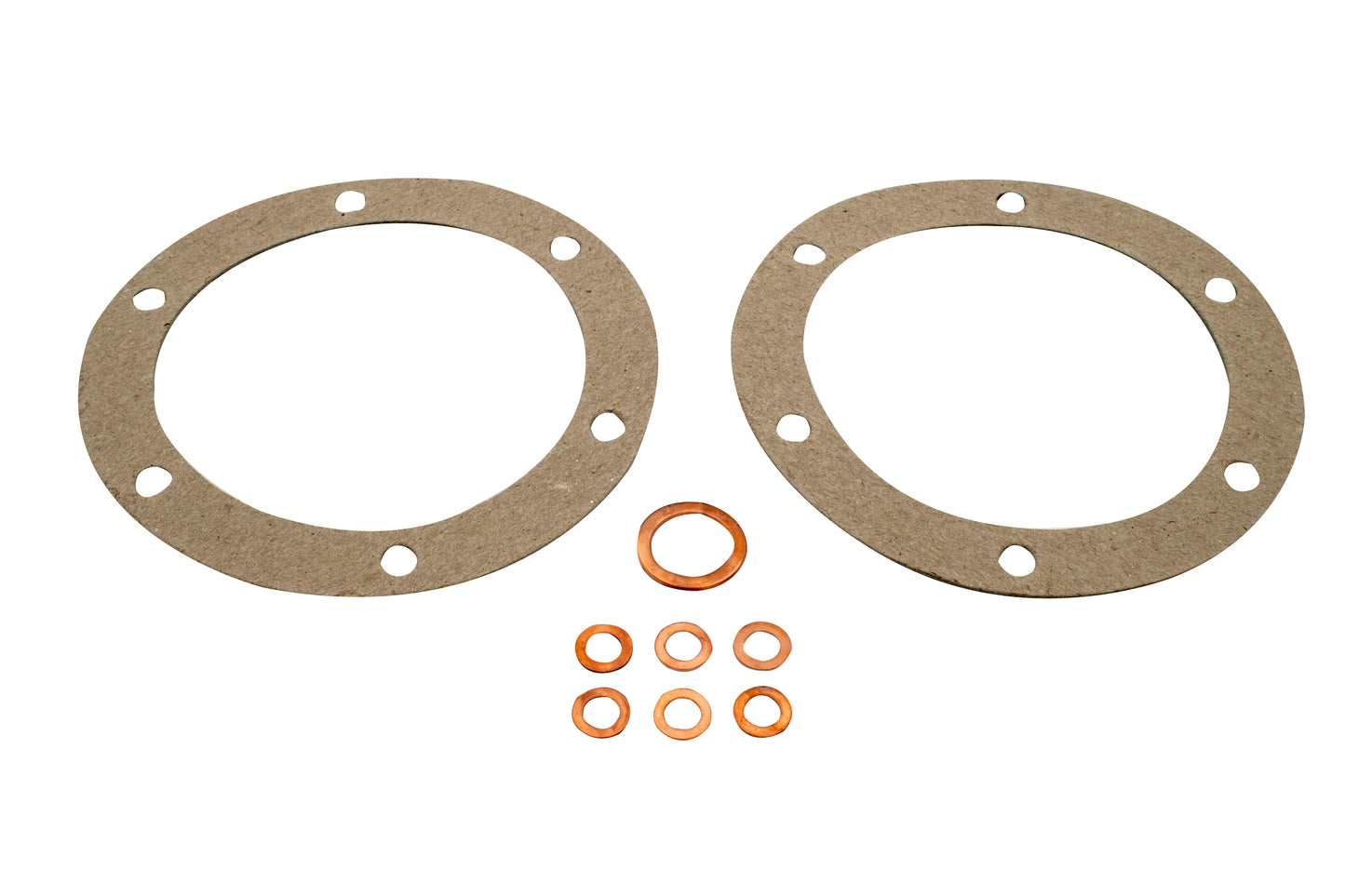

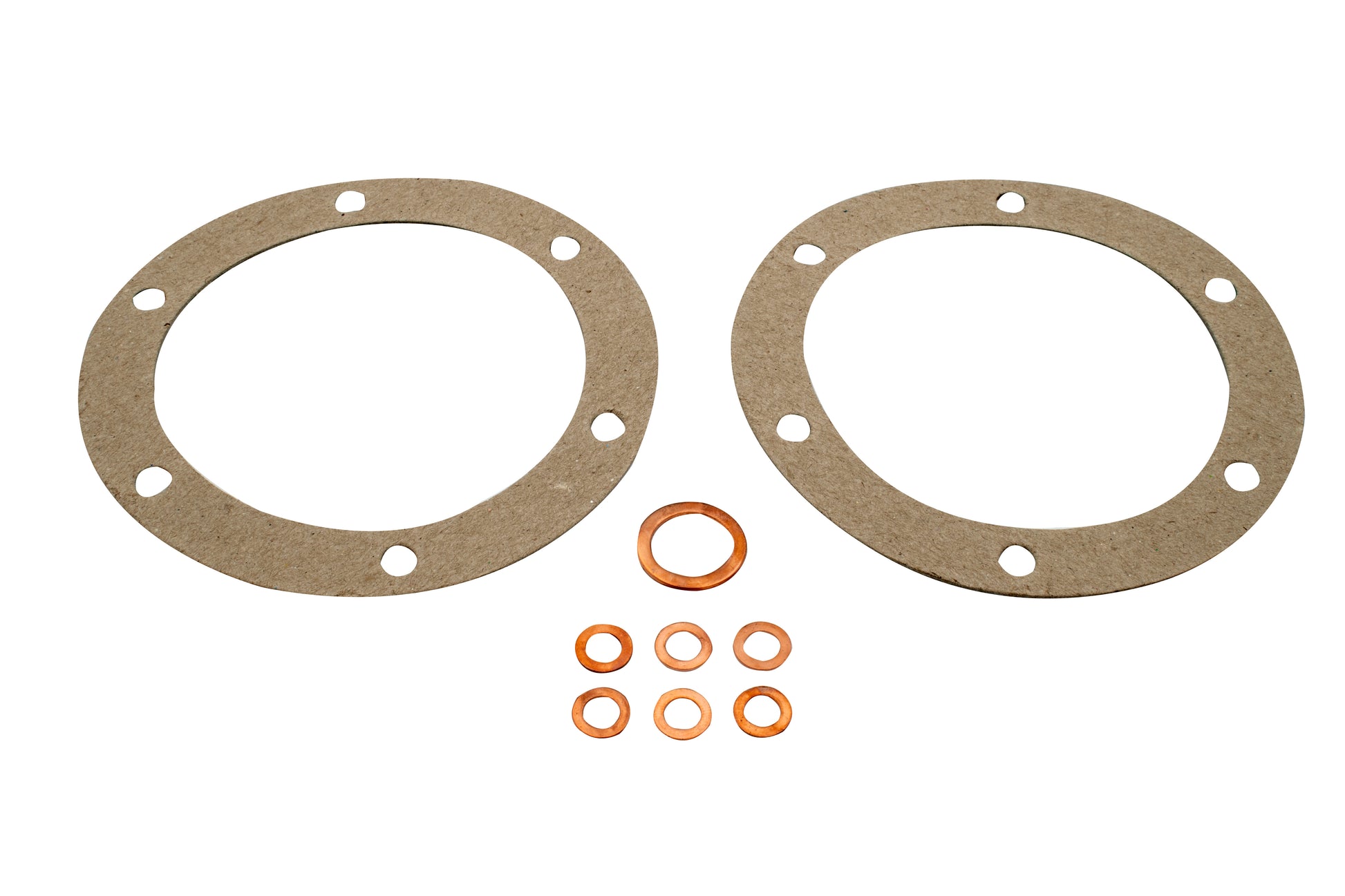

What's Included

• Oil strainer plate gasket (top — case to plate)
• Oil strainer cover gasket (bottom — plate to cover)
• Drain plug sealing washer / crush washer
• Strainer screen retainer hardware sealing components

Engine Fitment

• VW 1200cc, 1300cc, 1500cc, and 1600cc air-cooled (single port and dual port)
• All Type 1, Type 2 (upright), and Type 3 air-cooled engines using the standard sump-style oil strainer

Vehicle Applications

• 1949-1979 VW Beetle / Super Beetle
• 1950-1971 VW Type 2 Bus / Transporter / Kombi (upright engines)
• 1956-1974 Karmann Ghia
• 1962-1973 VW Type 3 Notchback / Squareback / Fastback
• 1973-1974 VW Thing (Type 181)

Why You Need This Kit

The factory paper gaskets compress significantly the first time they're torqued. Once they've been compressed and heat-cycled, they will not seal properly a second time — and the failure mode is a slow oil leak from the bottom of the engine that's a pain to track down. Every oil change should include fresh gaskets. At a few dollars each, there's no reason to skip them.

Installation Notes

• Always replace both strainer gaskets together. Don't reuse one and replace the other.
• Install gaskets dry — no sealant or RTV is required or recommended.
• Clean both sealing surfaces thoroughly before installation. Old gasket residue is a common cause of leaks.
• Torque the strainer plate nuts to factory spec — over-tightening will crush the gasket and cause leaks rather than prevent them. Recommended: 5 ft-lbs.
• Replace the drain plug crush washer every time. It's a single-use part.

Maintenance Recommendation

Air-cooled VW engines should have their oil changed every 3,000 miles. Keep a few of these kits in the shop or garage so you're never tempted to skip them at service time.
