Hastings Ring Set — 92mm, 2×2×4 Cast Iron | VW Type 1 Big-Bore 1835cc (98-1226-B)

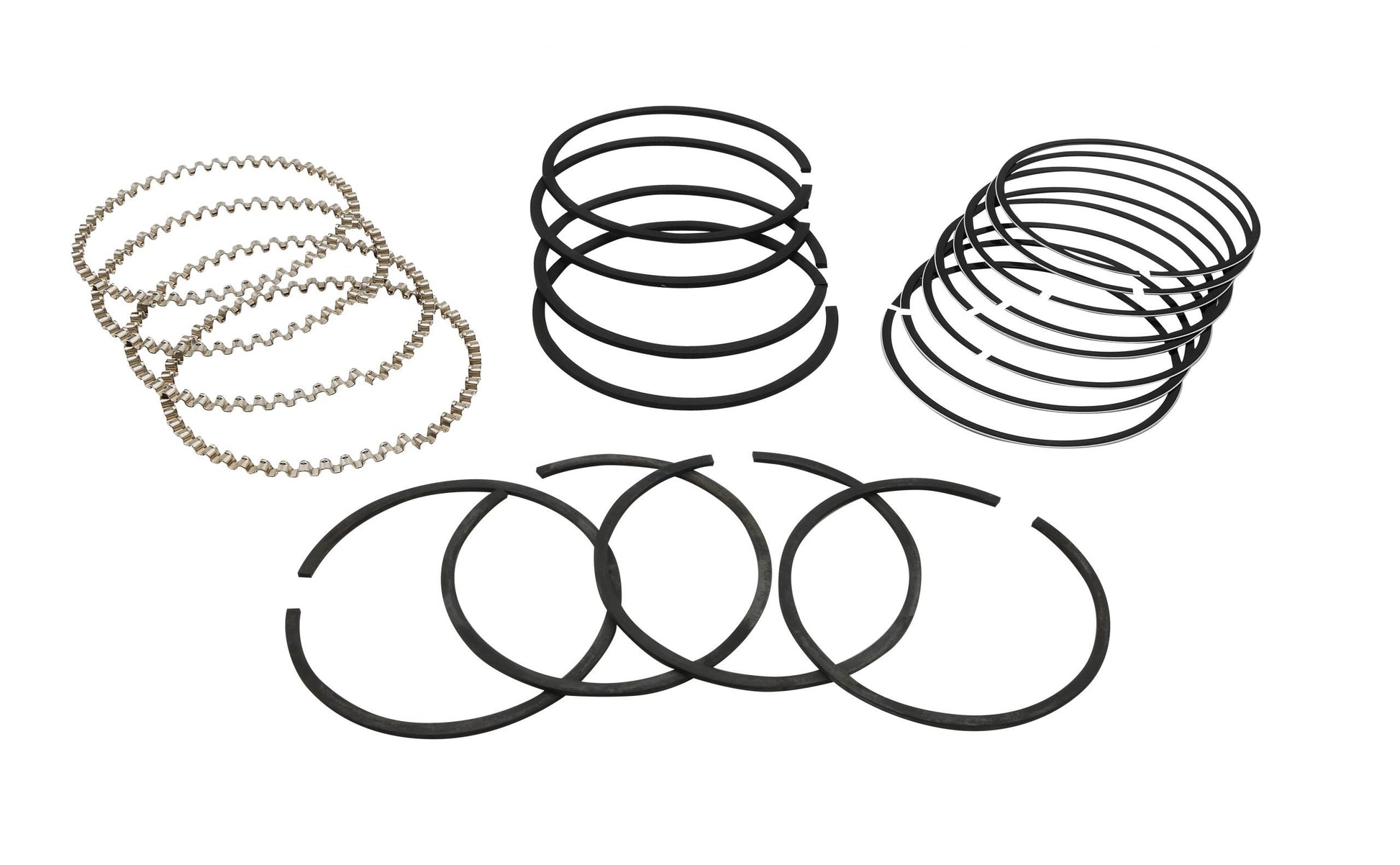

Hastings piston ring set for 92 mm bore VW Type 1 big-bore air-cooled engines. Cast iron compression rings — Hastings' standard street-quality material. The 2×2×4 stack identifies this as a Type 1 big-bore application (not Type 4). Complete set for a 4-cylinder engine.

Application

• 92 mm bore Type 1 big-bore (≈1835cc on stock 69 mm stroke, ≈1914cc on 76 mm stroker)
• The most popular street/strip displacement upgrade for Type 1 engines
• Pair with matching 92 mm Type 1 pistons during a rebuild

Ring Stack — read before ordering

Hastings rings are specified by their groove widths in millimeters, in the order top compression / second compression / oil control:

• Top compression: 2 mm
• Second compression: 2 mm
• Oil control: 4 mm
• Material: Cast iron compression rings

Confirm the ring groove widths cut into your pistons match this stack before ordering. Mismatched ring stacks will not seat properly.

Specifications

• EMPI Part #: 98-1226-B
• Set covers 4 cylinders (one complete engine)

About Hastings

Hastings has been making piston rings in the United States since 1915. Their cast iron and chrome ring sets are a long-standing standard for air-cooled VW engine rebuilds — known for consistent quality and tight gap tolerances out of the box.
