Premium Titanium Complete Chassis & Fender Kit | Air-Cooled VW

Premium Grade 5 Titanium Complete Chassis & Fender Kit | Air-Cooled VW

Transform your air-cooled VW restoration or performance build with the ultimate lightweight, high-strength hardware upgrade. Engineered from premium Grade 5 titanium, this comprehensive kit replaces your heavy, corrosion-prone factory chassis, suspension, beam, pan, and fender hardware with race-grade components. Experience superior structural strength, lifelong rust resistance, and a striking show-quality finish.

Why Choose Grade 5 Titanium?

• Maximum Strength, Minimal Weight: Drastically lighter than standard steel without sacrificing structural integrity.

• Precision Engineered: Features hot-forged construction and rolled threads for unmatched durability and fatigue resistance.

• Corrosion Proof: Impervious to rust, road salt, and moisture—perfect for elite show cars and high-performance builds.

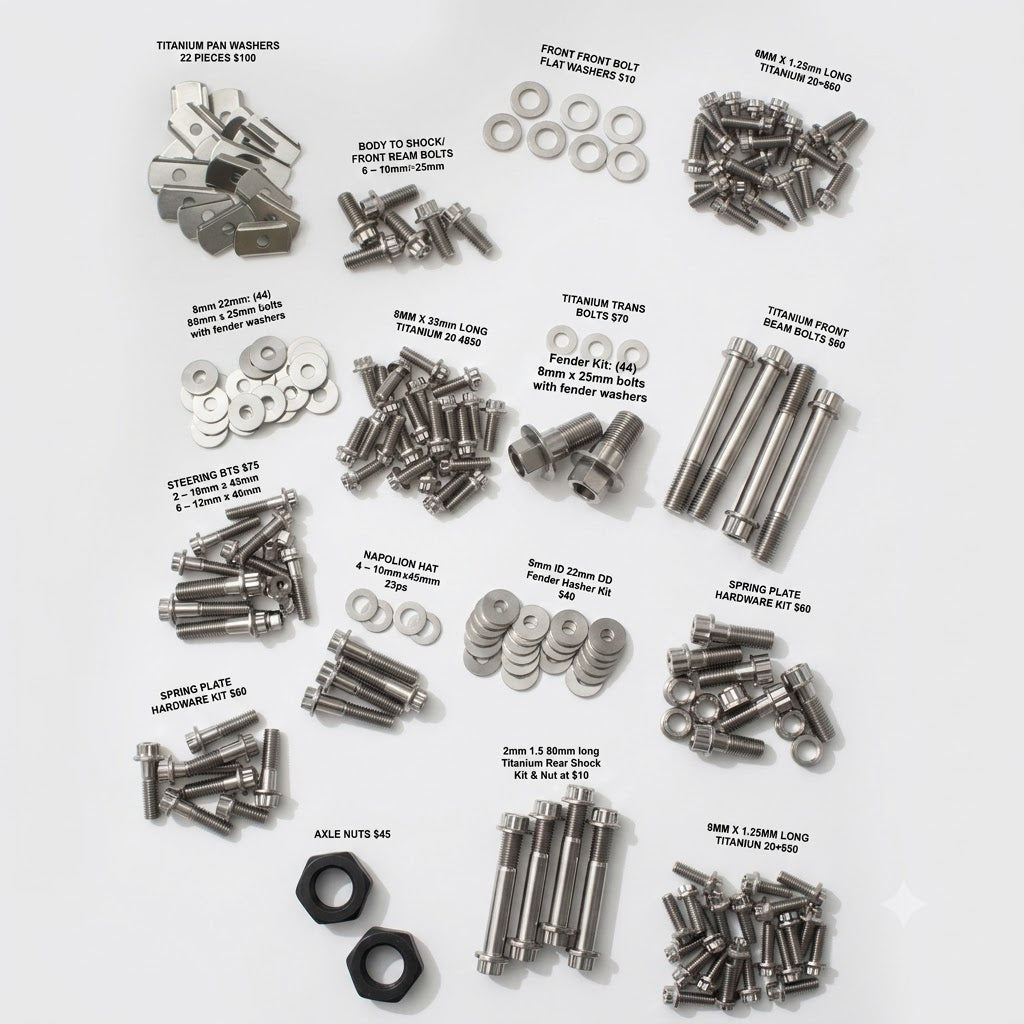

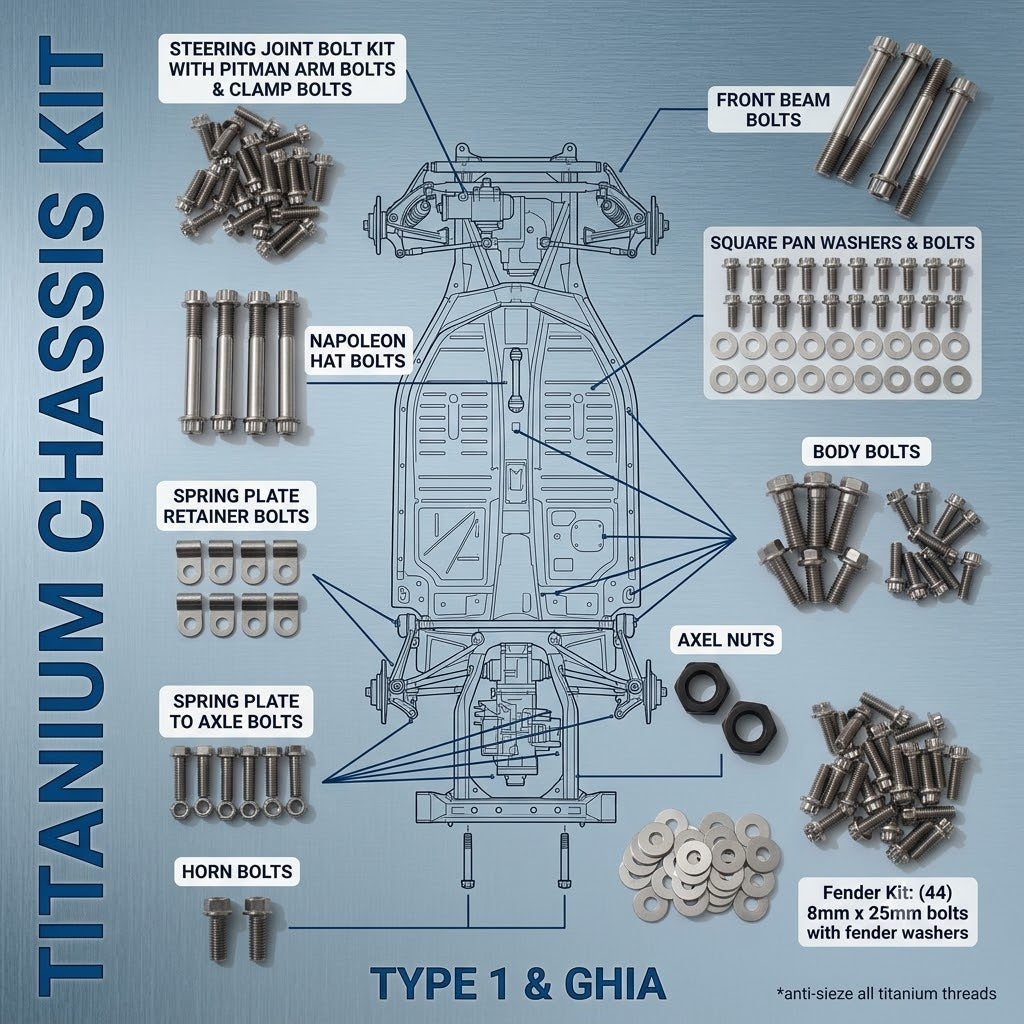

What’s Included

Chassis & Suspension Hardware

• (4) Front beam bolts ($12\text{mm} \times 95\text{mm}$)

• (4) Heavy-duty flat washers ($12\text{mm}$, $3\text{mm}$ thick)

• (9) Steering box, rag joint, and pitman arm hardware pieces

• (4) Napoleon hat bolts

• (22) Pan bolts ($8\text{mm} \times 25\text{mm}$) & (22) Square pan washers

• (6) Shock tower / top beam bolts ($10\text{mm} \times 25\text{mm}$)

• (8) Spring plate retainer hardware components ($1/2''$ thick)

• (6) Spring plate to axle tube bolts & nuts

• (2) Premium PVD-coated axle nuts

• (2) Transmission horn bolts

• (4) Rear shock bolts & nuts ($12\text{mm} \times 80\text{mm}$)

Fender Hardware

• (44) Fender bolts ($8\text{mm} \times 25\text{mm}$) with matching fender washers

Key Features

• Material: Premium Grade 5 Titanium Alloy ($Ti\text{-}6Al\text{-}4V$)

• Manufacturing: Hot-forged heads with precision-rolled threads for enhanced thread strength and longevity.

• Aesthetics: Sleek, high-end metallic finish featuring custom PVD-coated axle nuts.

⚠️ Important Installation Note: Titanium threads can gall if installed dry. Always apply a high-quality anti-seize compound to all threads during assembly to ensure proper torque and smooth installation.
