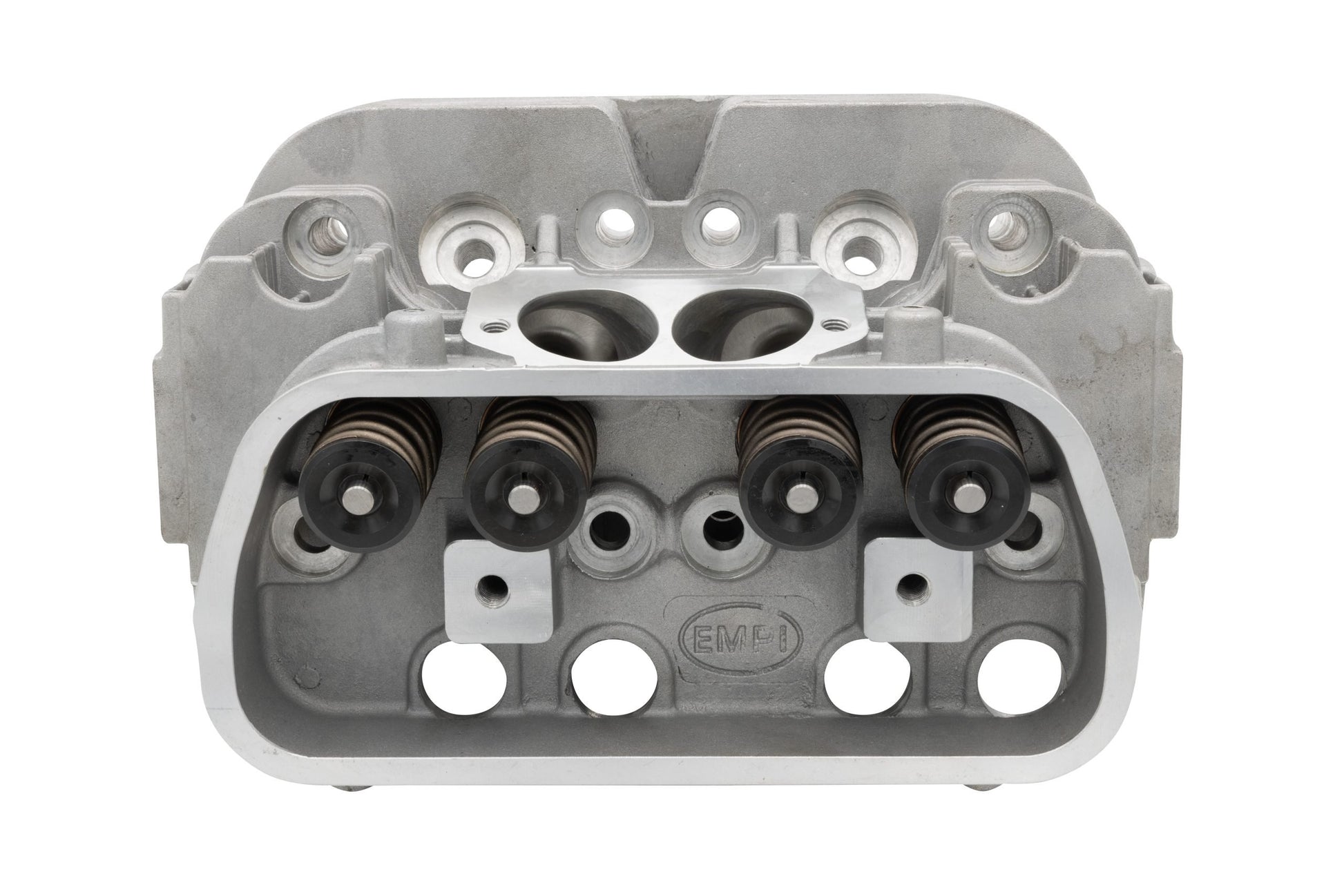

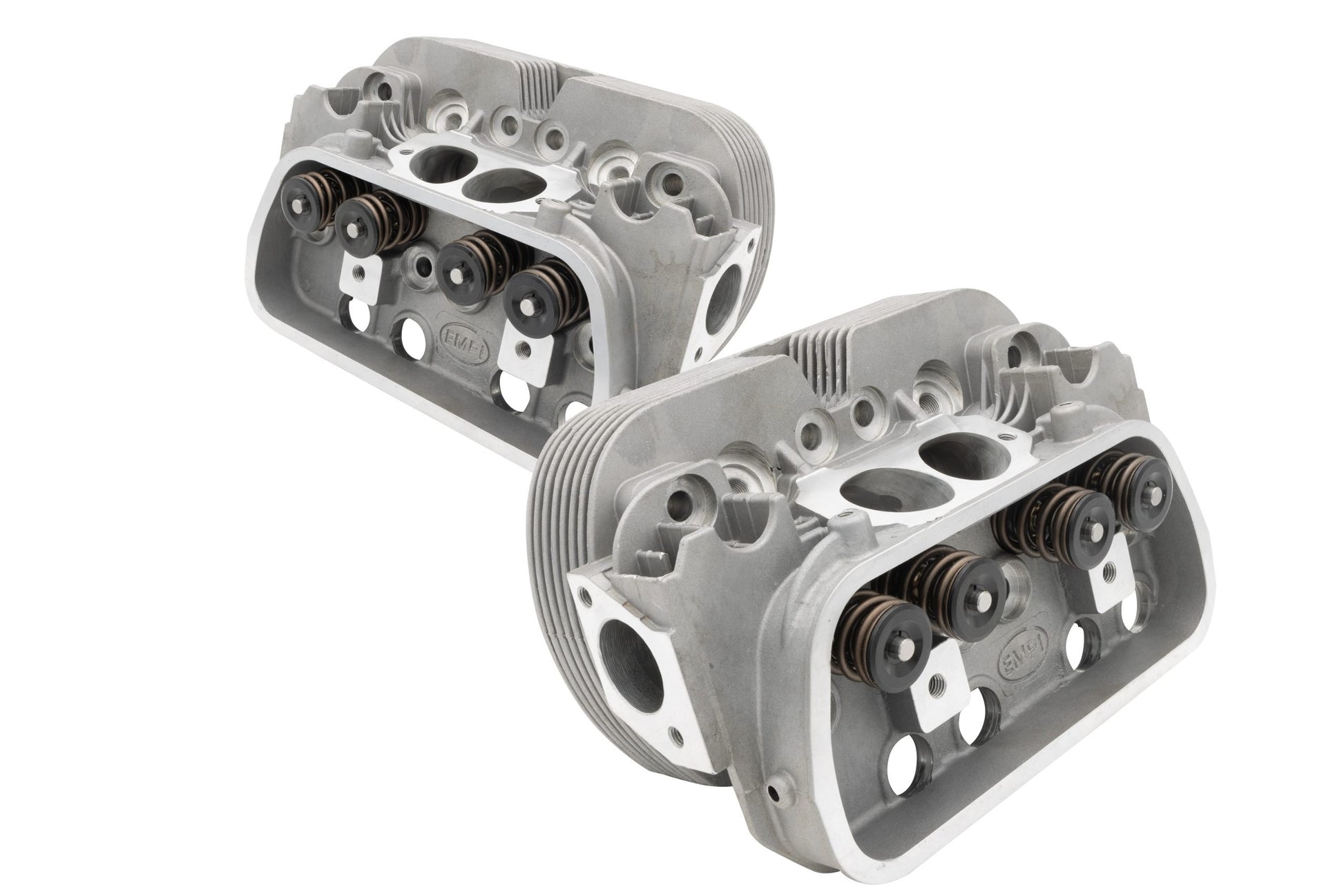

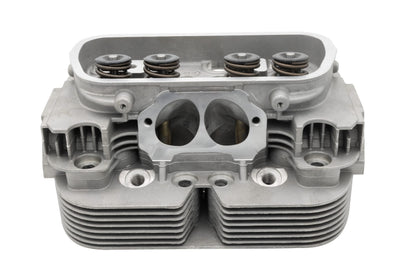

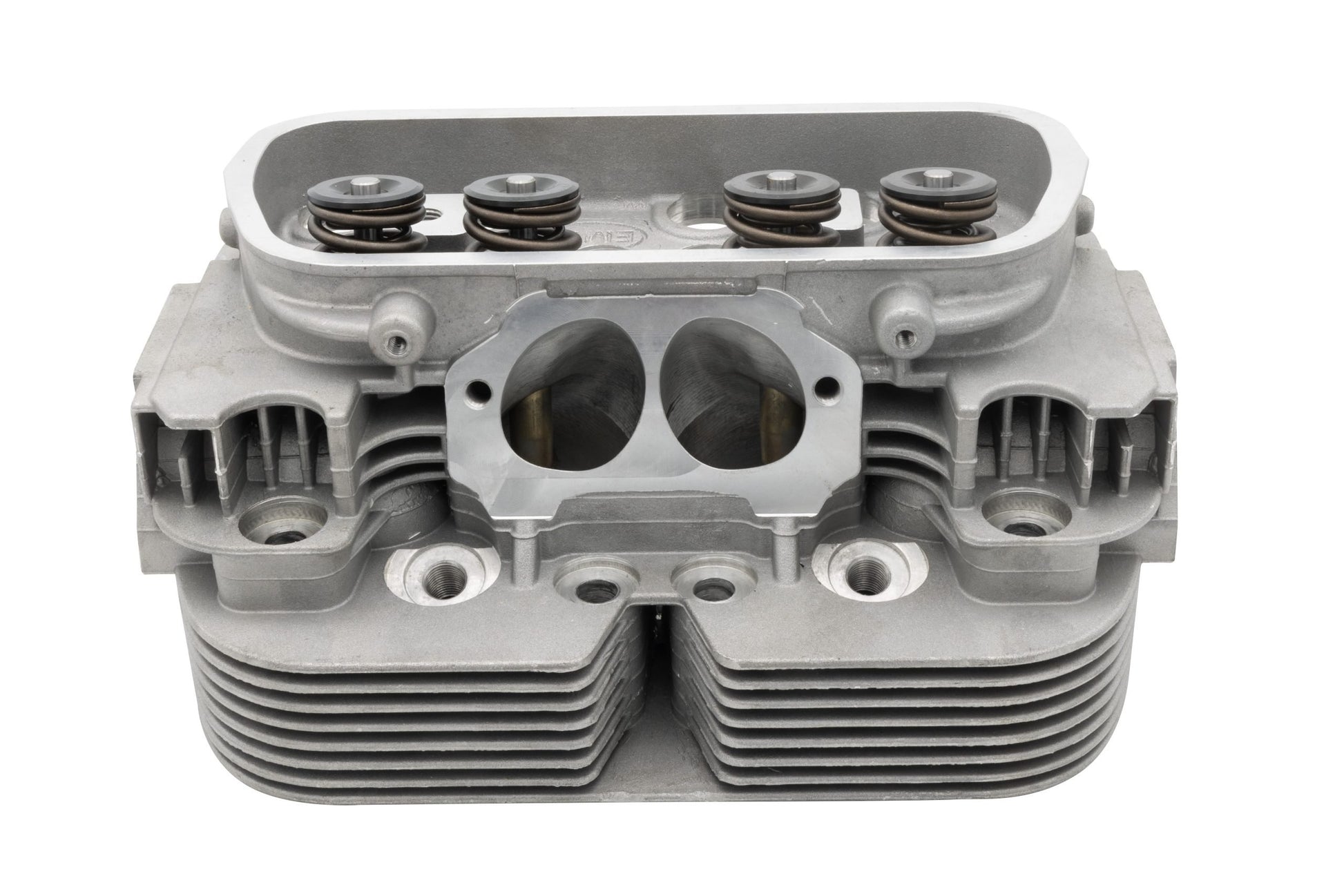

GTV-2 D7000 CNC Ported Cylinder Heads : 44 x 37.5 S/S Valves : Dual Springs : 90.5/92mm Bore : Pair : EMPI

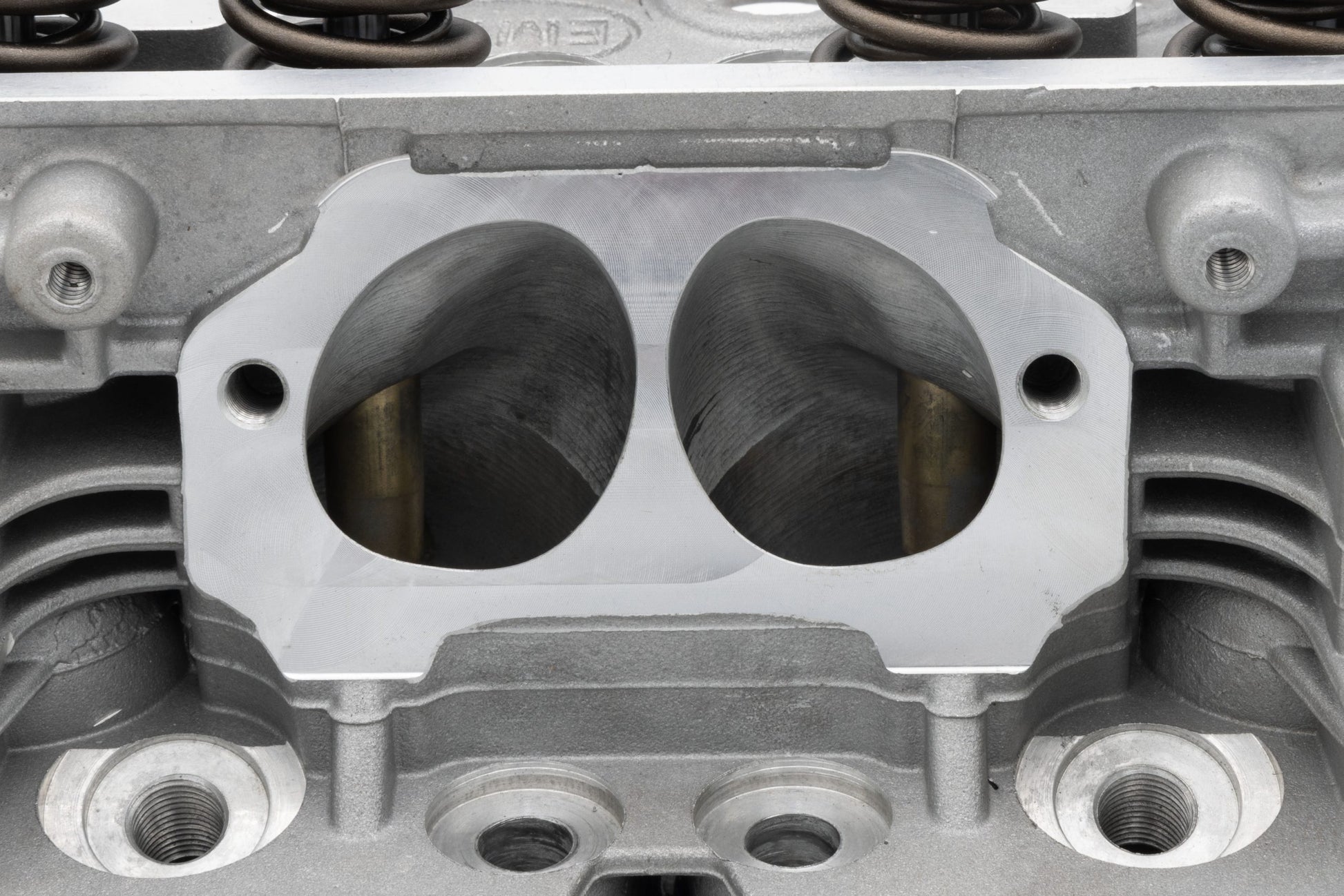

The EMPI GTV-2 D7000 CNC-ported heads represent serious racing-grade airflow on the proven GTV-2 casting. CNC programs cut the intake port, exhaust port and combustion chamber with precision — you now have a smooth, ready-to-bolt-on finished head with massive 44mm intake / 37.5mm exhaust valves.

The D7000 port profile sits between Stage 1 and the maximum Stage 3 wedge-port for builders who want serious flow without going to the full wedge configuration. Beefed-up intake and exhaust ports allow massive porting without the need for welding.

Features

• 90.5mm / 92mm bore, GTV-2 dual port casting
• D7000 CNC port profile — 5-axis CNC mill
• 44mm intake / 37.5mm exhaust stainless steel Manley valves
• Dual hi-rev valve springs
• Chromoly retainers and hardened keepers
• Bronze valve guides
• Custom intake gasket included
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• Competition 3-angle valve job
• Sold as a matched pair

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs must be used in place of stock Bosch plugs.
• Verify rocker arm geometry and check for coil bind with dual springs.

Fitment

• Compatible with 1776cc / 1835cc / 1914cc stroker builds (90.5/92mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port performance builds
• Recommended for high-lift / high-RPM camshafts

Shipping Information

• Shipping Weight: 28 lbs (pair)
• Shipping Box Dimensions: 18 x 12 x 9 in
