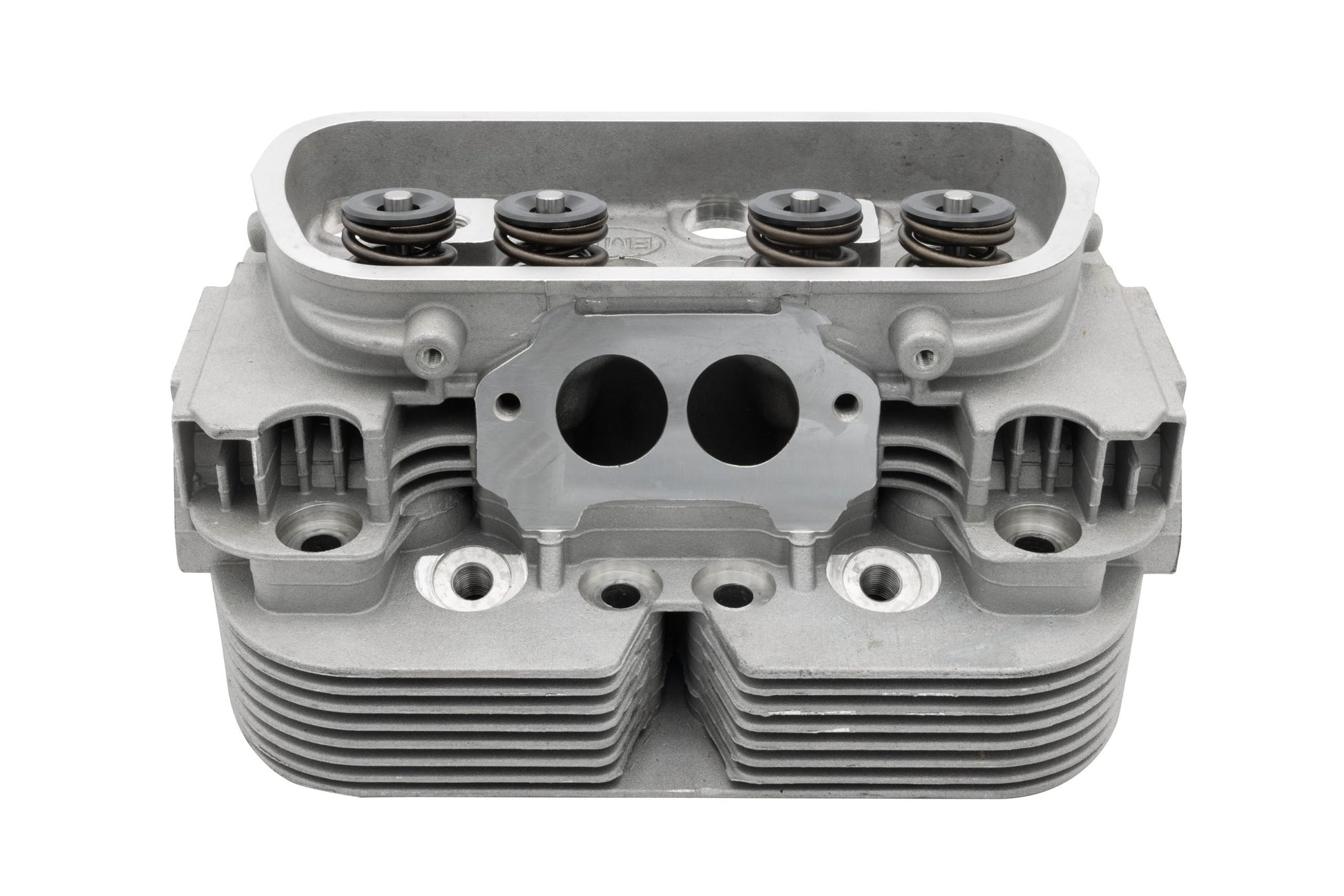

GTV-2 Dual Port Cylinder Head : 40 x 35.5 S/S Valves : Dual Springs : 94mm Bore : EMPI

The EMPI GTV-2 Cylinder head casting out-classes all the competition! Machined to fit 94mm pistons for big-displacement builds, and assembled with dual hi-rev valve springs for higher-RPM camshaft profiles. Beefed-up intake and exhaust ports allow massive porting without the need for welding.

Features

• 94mm bore, GTV-2 dual port casting
• 40mm intake / 35.5mm exhaust stainless steel Manley valves
• Dual hi-rev valve springs — for high-lift performance cams
• Chromoly retainers and hardened keepers
• Bronze valve guides
• 20% larger intake and exhaust ports than stock
• Added material around combustion chamber for deep fly cutting
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• 3-angle performance valve job
• Sold each

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs must be used in place of stock Bosch plugs.
• Verify rocker arm geometry and check for coil bind with dual springs.

Fitment

• Compatible with 1914cc / 2110cc / 2276cc / 2332cc stroker builds (94mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port performance builds
• Recommended for high-lift / high-RPM camshafts

Shipping Information

• Shipping Weight: 14 lbs
• Shipping Box Dimensions: 12 x 9 x 7 in
