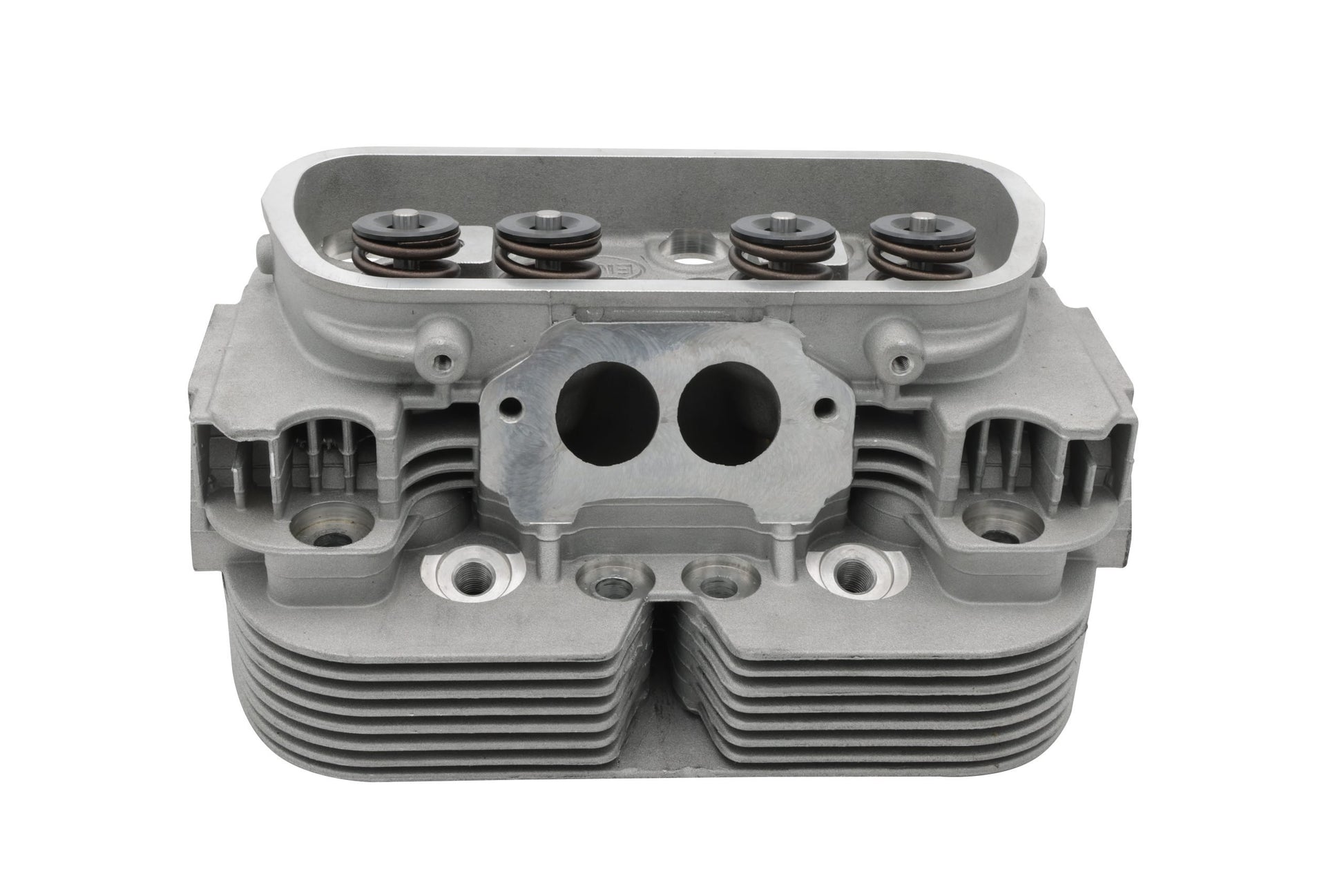

GTV-2 Dual Port Cylinder Head : 40 x 35.5 S/S Valves : Single Springs : 94mm Bore : EMPI

The EMPI GTV-2 Cylinder head casting out-classes all the competition! Machined to fit 94mm pistons for big-displacement stroker builds. Beefed-up intake and exhaust ports allow massive porting without the need for welding.

Features

• 94mm bore, GTV-2 dual port casting
• 40mm intake / 35.5mm exhaust stainless steel Manley valves
• Single hi-rev valve springs
• Chromoly retainers and hardened keepers
• Bronze valve guides
• 20% larger intake and exhaust ports than stock
• Added material around combustion chamber for deep fly cutting
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• 3-angle performance valve job
• Sold each

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs must be used in place of stock Bosch plugs.

Fitment

• Compatible with 1914cc / 2110cc / 2276cc stroker builds (94mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port performance builds

Shipping Information

• Shipping Weight: 14 lbs
• Shipping Box Dimensions: 12 x 9 x 7 in

WARNING: This product can expose you to chemicals including Lead known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov. All parts legal for use on pre-pollution controlled vehicles only.
