GTV-2 L7 CNC Ported Cylinder Heads : 44 x 37.5 S/S Valves : Dual Springs : 94mm Bore : Pair : EMPI

The EMPI GTV-2 L7 CNC-ported configuration is part of EMPI's high-end racing head lineup, machined for 94mm pistons. These new port designs include most of what DRD Racing Heads previously offered. The L7 port profile is engineered for serious horsepower-per-displacement on big-bore (1914cc-2332cc) builds.

Beefed-up intake and exhaust ports allow massive porting without the need for welding. Special aluminum alloy for strength and durability — and fully repairable. Added material around the combustion chamber for deep fly cutting, exhaust air passages clear for proper cooling.

Features

• 94mm bore, GTV-2 dual port casting
• L7 CNC port profile — 5-axis CNC mill
• 44mm intake / 37.5mm exhaust stainless steel valves
• Competition dual valve springs
• Chromoly retainers and hardened keepers
• Bronze valve guides
• Custom-fit gaskets included
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• Hi-Performance 3-angle valve job

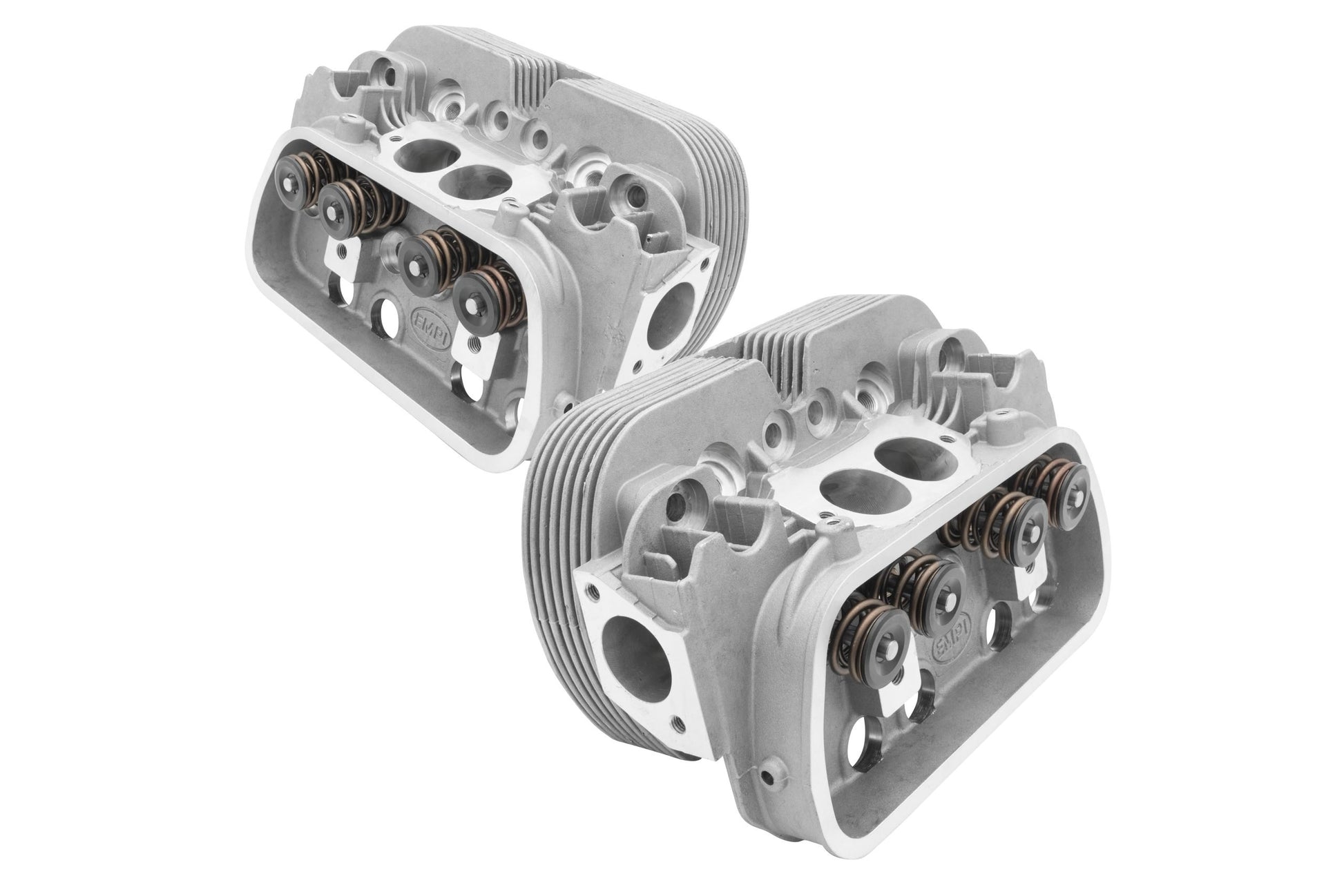

• Sold as a matched pair

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs must be used in place of stock Bosch plugs.
• Verify rocker arm geometry and check for coil bind with dual springs.

Fitment

• Compatible with 1914cc / 2110cc / 2276cc / 2332cc stroker builds (94mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port performance builds
• Recommended for high-lift / high-RPM racing camshafts

Shipping Information

• Shipping Weight: 28 lbs (pair)
• Shipping Box Dimensions: 18 x 12 x 9 in
