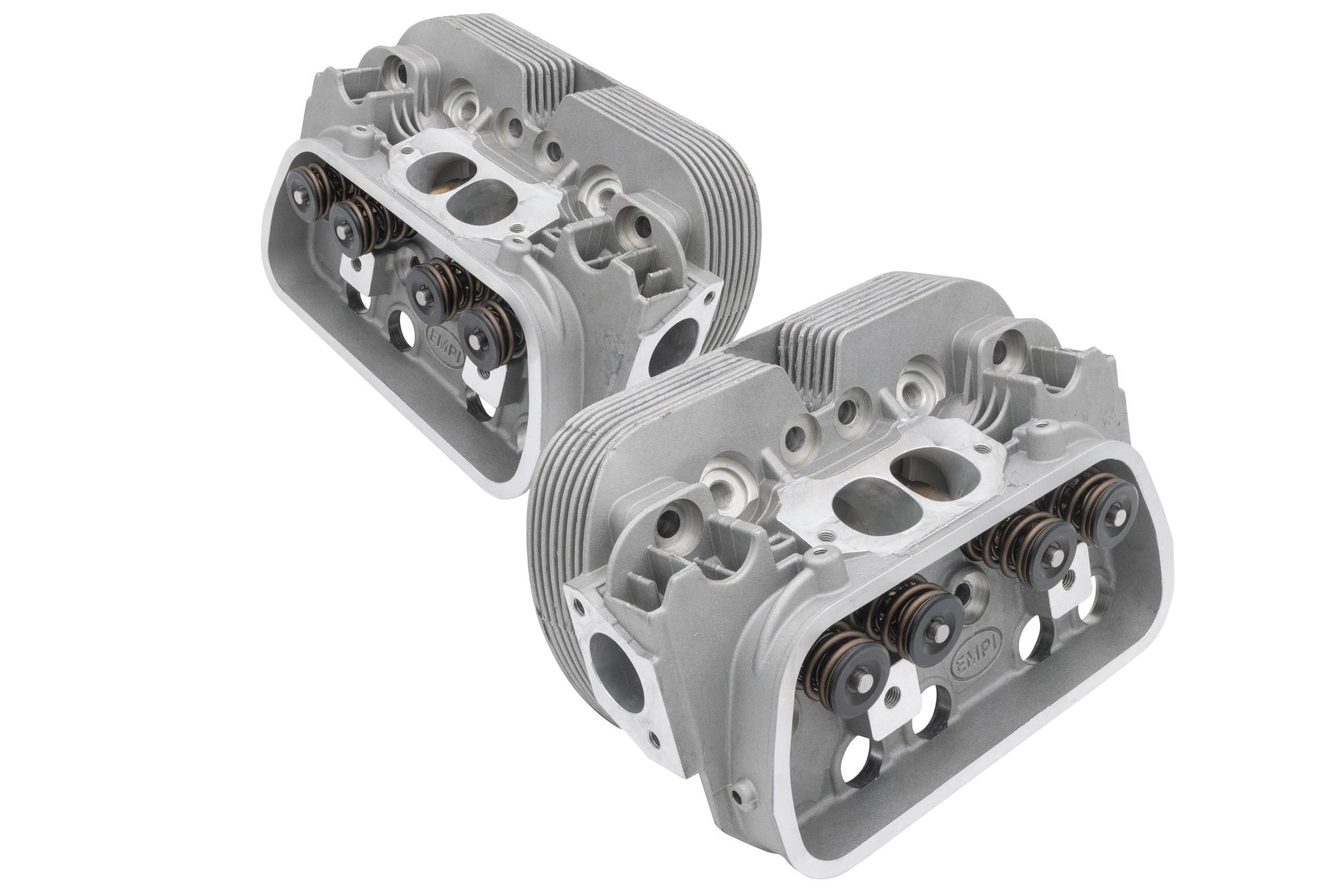

GTV-2 Stage 1 CNC Wedge Ported Cylinder Heads : 40 x 35.5 S/S Valves : Dual Springs : 94mm Bore : Pair : EMPI

The EMPI GTV-2 Cylinder head casting out-classes all the competition! These new port designs include most of what DRD Racing Heads previously offered. EMPI's programs cut the intake port, exhaust port and combustion chamber with CNC precision — you now have a smooth, ready-to-bolt-on finished head.

Stage 1 Wedge Port for 94mm bore is well-suited for 1914cc-2110cc street/strip builds. Beefed-up intake and exhaust ports allow massive porting without the need for welding.

Features

• 94mm bore, GTV-2 dual port casting
• Stage 1 Wedge-Port CNC machining — 5-axis CNC mill
• 40mm intake / 35.5mm exhaust stainless steel Manley valves
• Dual hi-rev valve springs
• Chromoly retainers and hardened keepers
• Bronze valve guides
• Custom intake gasket included
• 12mm 3/4" reach spark plug holes
• Rocker, exhaust, and intake studs included
• Performance 3-angle valve job
• Sold as a matched pair

Important

• Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.
• 12mm long reach spark plugs must be used in place of stock Bosch plugs.
• Verify rocker arm geometry and check for coil bind with dual springs.

Fitment

• Compatible with 1914cc / 2110cc / 2276cc stroker builds (94mm bore)
• Type 1 / Type 2 / Type 3 / Karmann Ghia / Thing dual port performance builds

Shipping Information

• Shipping Weight: 28 lbs (pair)
• Shipping Box Dimensions: 18 x 12 x 9 in
