VW Ball Joint 2.5" Drop Spindle Front Disc Brake Kit - Wilwood Calipers (5x130 & 5x4.75)

The Ultimate Performance Brake & Stance Upgrade Achieve the perfect rake and modern stopping power in one comprehensive package. This Forged Drop Spindle Front Disc Brake Kit is engineered for 1968–1977 Type 1 Beetles and 1967–1974 Karmann Ghias equipped with ball joint front ends. By utilizing premium Wilwood high-performance calipers, this kit bridges the gap between vintage style and modern track-ready braking.

Precision Engineering & Forged Strength Unlike welded alternatives, the included 2.5" drop spindles are forged for maximum structural integrity. They lower your vehicle’s center of gravity without sacrificing ride quality or changing steering geometry. The kit features directional drilled and slotted rotors, zinc-plated for corrosion resistance and double-drilled to accommodate both Porsche (5x130mm) and Chevy (5x4.75") wheel bolt patterns.

Wilwood Partnership EMPI has partnered with Wilwood Disc Brakes to develop these billet aluminum calipers specifically for the air-cooled VW platform. These calipers offer superior heat dissipation and clamping force compared to stock cast-iron units. This version features the Natural Finish for a clean, race-inspired aesthetic.

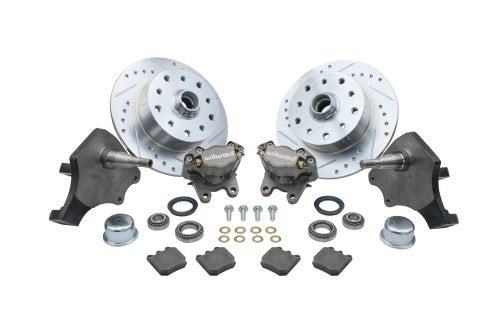

Kit Includes:

• 2.5" Forged Drop Spindles: High-strength spindles for a lower profile.

• Double-Drilled Rotors: Zinc-plated, directional drilled/slotted (5x130mm w/ 14x1.5mm threads & 5x4.75" w/ 12mm threads).

• Wilwood Calipers & Pads: Billet aluminum natural finish calipers with high-performance pads.

• Premium SKF Bearings: High-speed wheel bearings and seals for longevity.

• Installation Hardware: Includes dust caps, mounting hardware, and detailed instructions.

Technical Specifications:

• Part Number: 22-6152-0

• Application: 1968–1977 Type 1 (Beetle/Super Beetle) & 1967–1974 Karmann Ghia.

• Fitment Note: Requires the use of 1969-and-later tie rod ends.

• Wheel Requirement: Must be used with a minimum of 15" wheels.

• Replacement Pads: 16-2527-7
