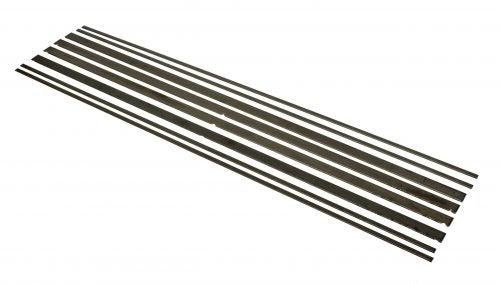

Essential Suspension Refresh: Ball Joint Torsion Leaves (Standard Width)

Ensure your front end performs as it should with this high-quality set of replacement torsion leaves. Specifically engineered for standard-width ball joint front beams, these leaves are the perfect solution whether you are building a brand-new lowered beam or simply looking to restore the factory ride quality of your stock Volkswagen.

These spring steel leaves provide the critical tension and flexibility required for proper suspension travel. For those looking to "freshen the ride," replacing old, fatigued leaves is one of the most effective ways to eliminate sagging and restore handling precision.

• Vehicle Fitment: Standard Width, Ball Joint Front Beams.

• Part Number: 98-4541-B.

• Versatile Application: Fits stock-height beams and new stock-width lowered beams.

• Durability: Made from high-grade spring steel for consistent performance.

Important Note: Suspension beams require two sets of torsion leaves—one for the upper tube and one for the lower tube.

Installation Guide

1. Safety First: Securely lift the front of the vehicle and support it with jack stands. Remove wheels and disconnect shocks.

2. Accessing the Beam: Loosen the center grub screw (locking screw) on the beam tubes. Depending on your setup, you will likely need to remove the spindles and trailing arms to slide the old leaf stacks out.

3. Removal: Slide the old, worn torsion leaves out from the side of the beam tubes.

4. Clean & Inspect: Use a rag or wire brush to clean out any old, hardened grease from inside the beam tubes. Inspect the center block for any wear or damage.

5. Preparation: Apply a heavy coat of high-quality chassis grease to the new leaf stack. Do not skip this step; proper lubrication is essential to prevent internal friction and noise.

6. Insertion: Carefully slide the new leaf packs into the tubes. Ensure the center dimple in the leaf stack aligns perfectly with the center grub screw hole in the beam.

7. Securement: Tighten the center grub screws and secure them with their jam nuts.

8. Reassembly: Reinstall your trailing arms (ensuring they seat correctly on the leaf ends), spindles, shocks, and wheels.

9. Post-Install: Always perform a test drive and have a professional alignment done after any major suspension work.
