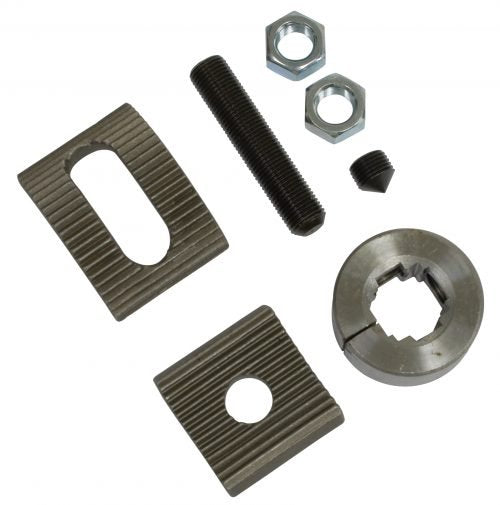

VW Ball Joint Weld-On Beam Adjuster — Beetle, Ghia & Thing 1966+ (16-9913-0)

Engineered for 1966 and later air-cooled Volkswagens, these Ball Joint Weld-On Beam Adjusters are the industry standard for customizing your front-end height. Designed to replace the fixed factory center anchors, these all-steel components allow you to rotate your torsion leaves to achieve the perfect "California rake," a slammed show stance, or even a slight lift for improved ground clearance.

For the "nothing to hide" builder, these adjusters are a necessity when narrowing a beam or restoring a chassis. They provide a clean, mechanical solution for suspension tuning, allowing for infinite adjustments within their range without the need to ever cut or weld your beam again.

Why These are Useful on a Beam:

• On-the-Fly Adjustability: Once installed, you can raise or lower your car in minutes using only a floor jack and a wrench—perfect for switching between "show mode" and "drive mode."

• Optimized Suspension Travel: Unlike lowering spindles which provide a fixed drop, these adjusters let you fine-tune the torsion leaf tension to balance ride quality with your desired height.

• Heavy-Duty Construction: Built from high-grade steel to withstand the constant rotational force and road vibrations of a Ball Joint front end.

• Professional Finish: Provides a much cleaner and safer alternative to the "cut and turn" method, keeping your front-end geometry predictable.

Installation Guide: Step-by-Step

Note: This process requires professional fabrication and welding skills. Ensure all internal grease is removed from the tubes before welding to avoid contamination.

1. Strip the Beam: Completely disassemble the front beam. Remove the torsion leaves, ball joints, and shocks.

2. Mark the Center Point: Identify and mark the factory center pin location on both the upper and lower tubes.

3. Cut the Travel Window: Use a mill or a cutting wheel to cut a vertical window in the center of the tube. Ensure the window is sized to allow the adjuster's grub screw its full range of travel.

4. Clear the Factory Anchor: Remove the original factory-stamped center set-screw housing.

5. Position the Adjuster: Slide the steel adjuster over the tube, aligning the 9/16" x 20 thread grub screw hole with your cut window.

6. Weld Securely: Weld the adjuster brackets to the beam tube using high-penetration MIG or TIG welding. A full, structural bead around the perimeter is required for safety.

7. Reassemble: Reinstall the torsion leaves, ensuring the grub screw seats properly into the center of the leaf stack.

8. Lock Your Stance: Adjust the height to your preference and tighten the jam nuts to lock the setting into place.
