VW Foose Billet Spring Plate Caps | Polished Aluminum Finish | 1960-1968 Bug & Ghia | 17-8897-0

Transform your rear suspension with the mirror-like finish of the EMPI x Foose Billet Spring Plate Caps. This collaboration between EMPI and legendary automotive icon Chip Foose brings custom show-car aesthetics to the classic Volkswagen chassis. These caps were meticulously developed using Foose’s original concept sketches and SolidWorks CAD, ensuring a level of fit and finish that satisfies even the most demanding "nothing to hide" restoration standards.



CNC-machined from a single block of high-grade 6061 T-6 billet aluminum, these caps are hand-polished to a brilliant shine. They serve as a premium alternative to the factory stamped-steel covers, adding a high-tech, custom touch to your torsion housing. Each pair is engraved with the signature Foose Design logo, marking your build with a pedigree of world-class design.



Key Features:

• Iconic Foose Styling: Designed by Chip Foose to blend classic VW heritage with modern custom car culture.



• Show-Quality Polished Finish: Hand-polished billet aluminum provides a high-luster shine that stands out in any detailed chassis.



• Billet Strength: Precision CNC-machined from 6061 T-6 aluminum for superior durability compared to thin factory steel.



• Perfect Alignment: Engineered via CAD for a seamless fit over original or performance torsion bushings.

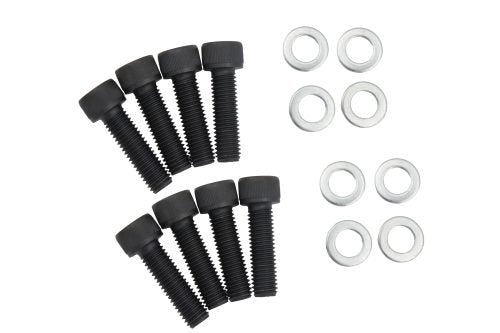

• Complete Hardware Kit: Each pair comes with heavy-duty M10 fasteners for a straightforward bolt-on upgrade.



---

Installation Guide: Step-by-Step

Note: Use caution when working around rear torsion bars. Ensure the car is safely supported on heavy-duty stands.

1. Preparation: Lift the vehicle and remove the rear wheels.

2. Safety First: Before removing the old caps, ensure the rear suspension is at full droop to minimize tension on the spring plate.

3. Removal: Unbolt the four M10 factory bolts and remove the old stamped caps. This is the perfect time to clean the torsion tube flange and inspect your bushings.

4. Bushing Check: If your original rubber bushings are compressed or cracked, consider replacing them with high-performance urethane units for better handling.

5. Alignment: Position the Foose Billet Cap over the spring plate. The precision machining ensures a tight, vibration-free fit.

6. Secure: Install the included M10 fasteners.



   • Pro Tip: To protect the high-polish finish, place a thin piece of plastic wrap or painter's tape over the bolt heads before using your socket or wrench.

7. Torque: Tighten in a star pattern to approximately 25–30 ft-lbs.

8. The Reveal: Wipe away any fingerprints with a microfiber cloth to restore that mirror shine.

---

Technical Specifications

• Part Number: 17-8897-0



• Material: 6061 T-6 Billet Aluminum



• Finish: High-Polish Aluminum (Engraved Logo)

• Suspension Compatibility: Swing Axle Rear Suspension



• Torsion Bar Length: Compatible with 21 3/4" length bars



• Fitment: * VW Type 1 (Beetle/Bug): 1960–1968



  • Karmann Ghia: 1960–1968



  • VW Type 3: 1962–1968
