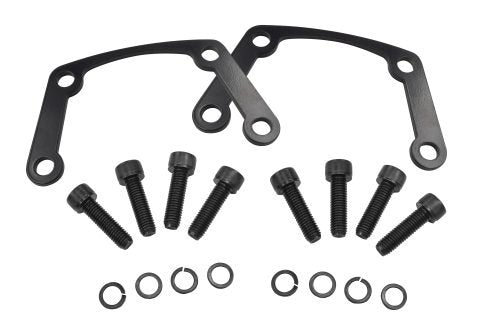

VW Spring Plate Cover Spacer Kit — 5mm Laser Cut Steel | EMPI Adjustable Spring Plates (00-9586-0)

Solve clearance issues on your custom rear suspension with the EMPI 5mm Spring Plate Cover Spacer Kit. Specifically engineered for use with EMPI’s line of adjustable spring plates, these spacers provide the necessary 5mm of additional "breathing room" between the adjustable plate and the outer cover. This ensures that your suspension can move through its full range of travel without binding or metal-on-metal contact.

Designed using advanced CAD software and laser-cut from 1018 steel, these spacers offer an exact fit that matches the factory torsion housing footprint. They are finished in a durable black coating to resist corrosion and blend seamlessly into a "nothing to hide" chassis build. Whether you are running a slammed street car or a high-travel off-road setup, these spacers are a critical component for a trouble-free adjustable suspension.

Key Features:

• Precision Clearance: Provides exactly 5mm of offset to prevent interference between adjustable spring plate hardware and the outer cover.

• Laser-Cut Accuracy: Manufactured from 1018 steel for high strength and a perfect, burr-free fit.

• CAD Engineered: Developed specifically to align with EMPI’s adjustable spring plate bolt patterns.

• Durable Finish: Coated in a resilient black finish to maintain a clean look and prevent rust in high-impact areas.

• Complete Hardware Kit: Includes specialized Black Oxide Allen Head Bolts and lock washers to accommodate the added thickness.

Installation Guide: Step-by-Step

Note: This kit is an essential add-on when installing specific EMPI adjustable spring plates. Ensure your suspension is properly supported before loosening any bolts.

1. Preparation: Raise the vehicle and support the rear on jack stands. Remove the rear wheels to access the torsion housing.

2. Disassembly: Remove the four bolts securing your spring plate cover. Pull the cover back to expose the adjustable spring plate.

3. Inspect Bushings: Ensure your inner and outer torsion bushings are correctly seated. This is the best time to replace them if they show signs of wear.

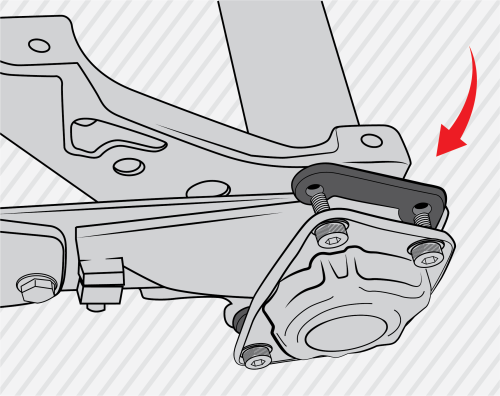

4. Spacer Placement: Slide the 5mm laser-cut spacer over the torsion tube flange. The holes should align perfectly with the four mounting points.

5. Reinstall Cover: Place the spring plate cover over the spacer.

6. Secure with New Hardware: Use the included 10x35mm Allen Head Bolts and lock washers. The added length of these bolts is necessary to safely reach the threaded holes in the torsion housing with the spacer installed.

7. Torque: Tighten the bolts in a crisscross pattern to approximately 25–30 ft-lbs.

8. Clearance Check: Cycle the suspension (if possible) to ensure the adjustable spring plate mechanism clears the cover throughout its movement.

Technical Specifications

• Part Number: 00-9586-0

• Thickness: 5mm

• Material: 1018 Laser-Cut Steel

• Finish: Durable Black Coating

• Hardware Included: (8) 10x35mm Allen Bolts, (8) 10mm Lock Washers

• Compatibility (Adjustable Spring Plates):

  • Swing Axle: 17-2669-0, 17-2670-0, 17-2671-0

  • IRS Suspension: 17-2672-0, 17-2673-0, 17-2674-0, 18-1075-0
