EMPI 30/31 PICT-3 Carburetor | VW Type 1 & 2 | With Adapter & Hardware, 12V Choke (98-1225-B)

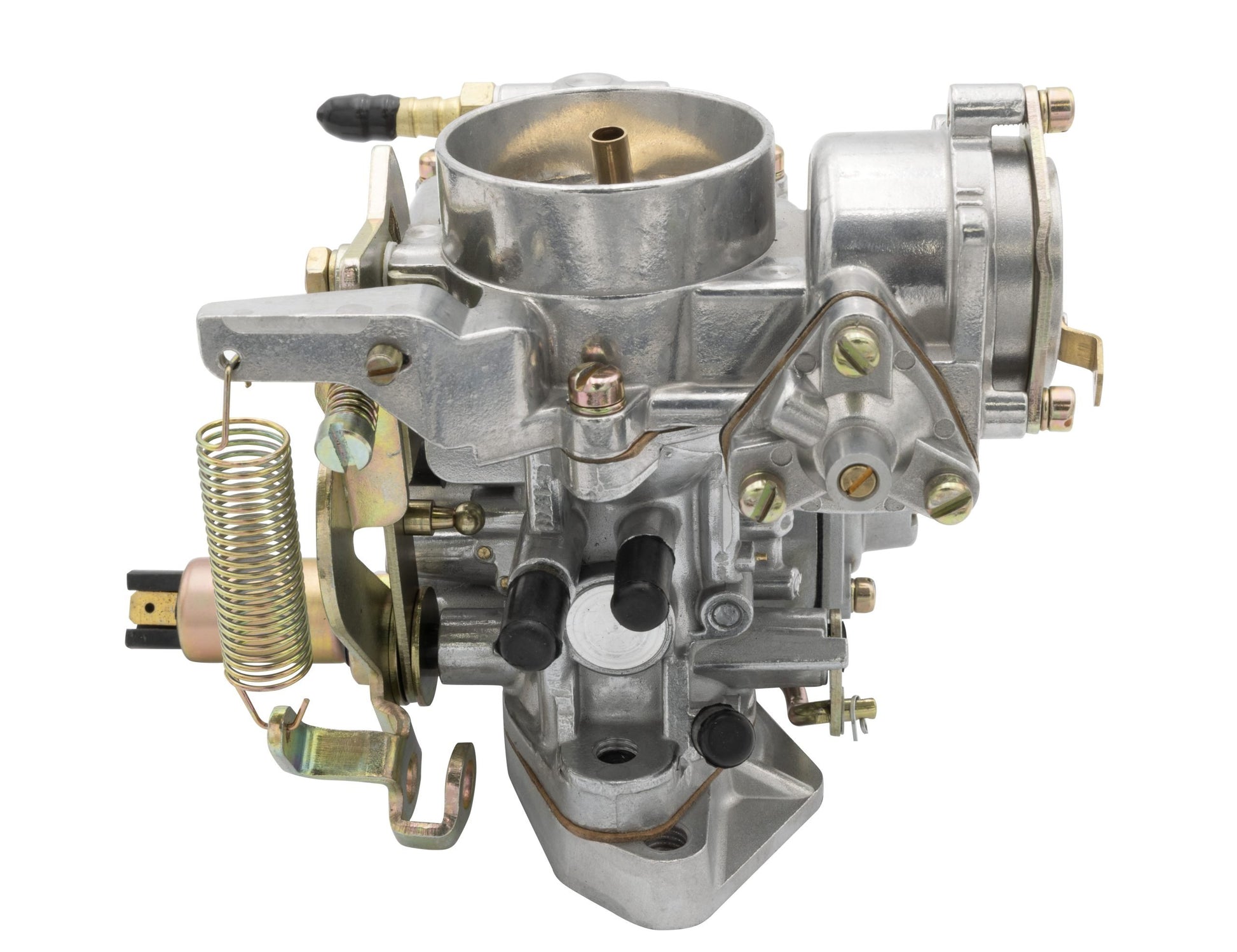

EMPI 30/31 PICT-3 Carburetor with Adapter & Hardware — 12V Choke (98-1225-B)

Recommended for all engine sizes up to 1600cc for ease of setup, the 30/31 PICT-3 fits both single and dual-port manifolds and works well with the 009 distributor with less chance of flat spots. It features a 12-Volt Idle Shut-Off Solenoid, an SVDA vacuum port, and is a direct replacement for all 12V 30-PICT single-port applications. Includes an adapter and mounting hardware for use on later dual-port manifolds; the throttle shaft rides on bushings at each end for smooth operation and long service life.

Vehicle Fitment

• VW Type 1 Beetle: 1968-1970 (replaces 30 PICT-2 / 30 PICT-3)
• VW Type 2 Bus: 1968-1970
• Engine compatibility: single-port and dual-port engines up to 1600cc
• Distributor: recommended for use with the 009 distributor

Key Features & Benefits

• Single & dual-port fitment: fits both manifolds with the included adapter
• 12V Idle Shut-Off Solenoid: prevents engine run-on
• SVDA Vacuum Port: works well with the 009 distributor
• Throttle shaft bushings: smooth operation, less wear
• Direct replacement: for 12V 30-PICT single-port applications
• Included: adapter and mounting hardware

Technical Specifications

• Part Number: 98-1225-B
• Choke: 12V
• Main Jet: 120
• Idle Jet: 50
• Air Correction: 120
• Pump Jet: 60
• Needle Valve: 150
• OE Reference: 113-129-027H
• Carburetor Rebuild Kit: 00-2500-0 or 00-9936-0
• Deluxe Carburetor Rebuild Kit: 00-2505-0
• Shipping Weight: ~3.5 lbs
• Shipping Box Dimensions: 8 x 7 x 7 in

Frequently Asked Questions

• Does this fit a dual-port manifold? Yes — an adapter and mounting hardware are included so it fits both single-port and dual-port manifolds.
• Does it work with the 009 distributor? Yes — the SVDA vacuum port works well with the 009 distributor with less chance of flat spots.
• What does the idle shut-off solenoid do? The 12V idle shut-off solenoid prevents engine run-on when you switch off the ignition.
