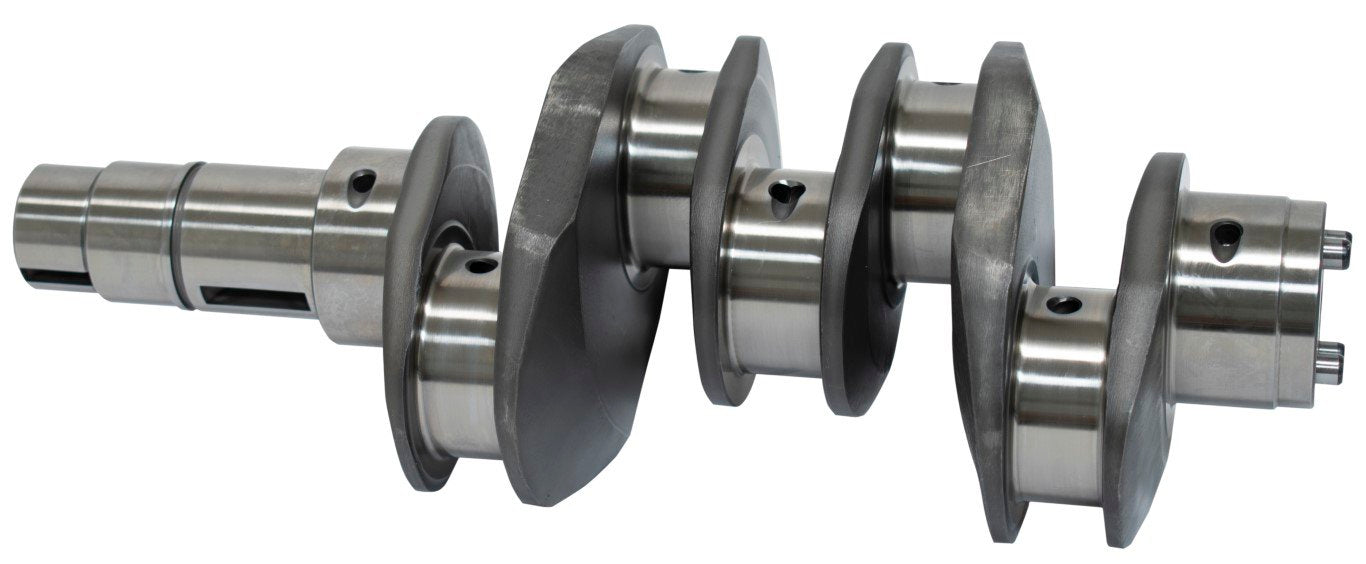

EMPI 69mm Forged Stock Crankshaft | Air-Cooled VW Type 1 | 1200–1600cc (00-8119-0)

EMPI 69mm Forged Stock Crankshaft — Air-Cooled VW Type 1, 1200–1600cc (00-8119-0)

Every rebuild starts with the crank, and on a stock-displacement Type 1 the 69mm forged crankshaft is the foundation you want under a fresh motor. This is EMPI's 69mm forged stock-stroke crank (00-8119-0) on standard VW journals — forged steel, not cast, so it holds up to hard street use where a cast replacement can let go.

Vehicle Fitment

• VW Beetle: Type 1 1200–1600cc
• VW Super Beetle: Type 1 1200–1600cc
• VW Bus: Type 1 1200–1600cc
• VW Karmann Ghia: Type 1 1200–1600cc
• VW Type 3: Type 1 1200–1600cc

Confirmed: VW Type 1 1200–1600cc using stock 69mm stroke and standard journals. Not confirmed: stroker builds (those need a longer-stroke crank) and Type 4 engines. Check that your bearings match standard journal size.

Why Choose EMPI?

Forged steel construction stands up to hard use where a cast crank can let go.

Key Features & Benefits

• Forged construction: markedly stronger than a cast crank — the right call for a motor you'll drive hard.
• Stock stroke: 69mm, correct for 1200–1600cc displacement.
• Standard journals: standard VW rod and main journals run standard-size bearings.
• 4-dowel flange: stock-style flywheel fitment.

Technical Specifications

• Stroke: 69mm (stock)
• Material: Forged steel
• Journals: Standard VW (rod and main)
• Flange: 4-dowel
• Part Number: 00-8119-0 | UPC: 707924485493
• Country of Origin: China
• Shipping Weight: 20.2 lb

Frequently Asked Questions

• What displacement is this for? Stock 69mm stroke for 1200–1600cc engines.
• Forged or cast? Forged — stronger than the cast direct-drilled crank, better for performance and hard use.
• What bearings does it use? Standard-size VW rod and main bearings.
• Can I build a stroker with it? No — this is stock stroke; a stroker needs a longer-stroke crank.
• What's the part number? EMPI 00-8119-0 (UPC 707924485493).
