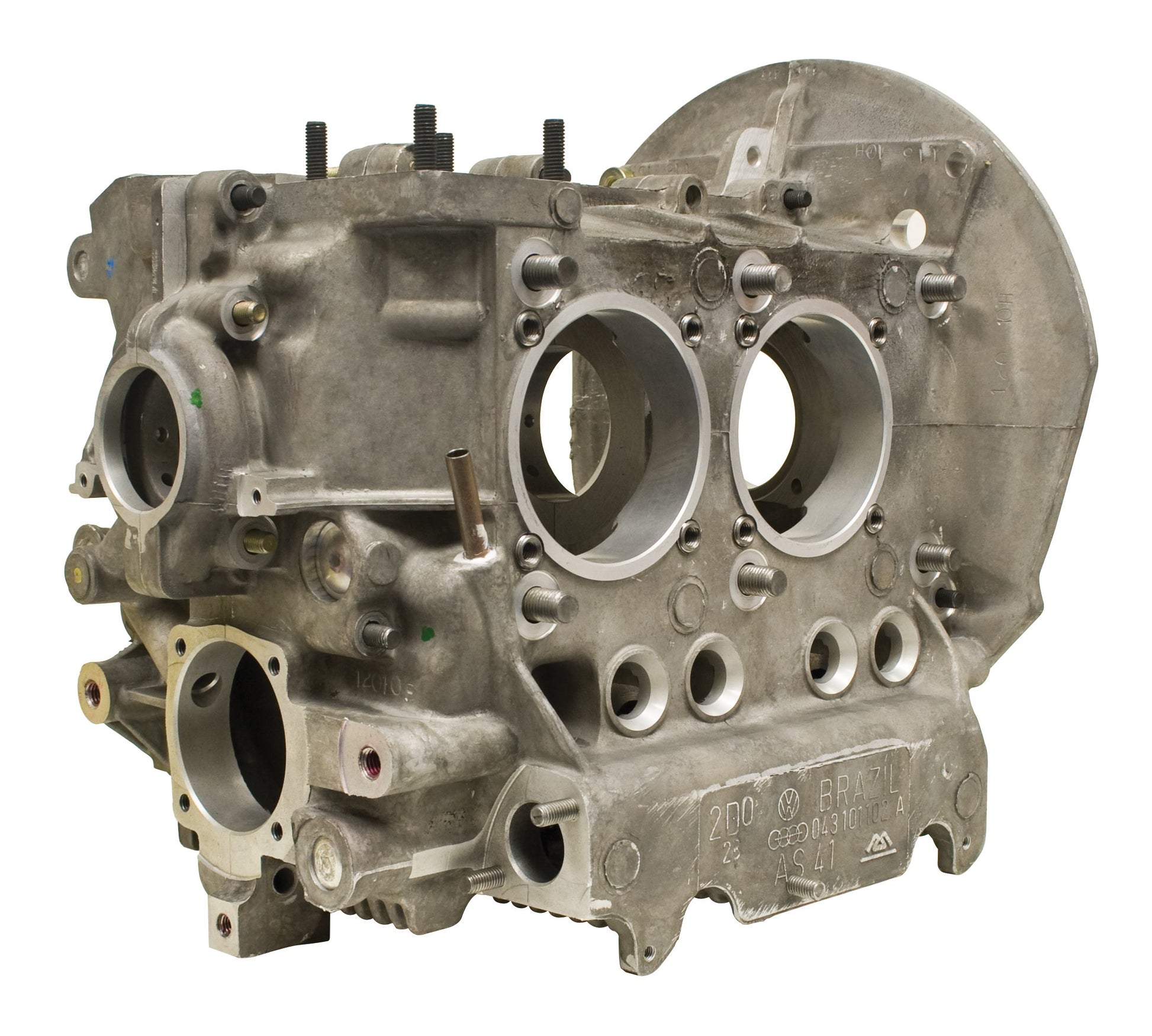

EMPI AS41 Magnesium Alloy Engine Case — Stock | VW Type 1 Air-Cooled (98-0431-B)

The case is the foundation every air-cooled build sits on, and EMPI's AS41 magnesium case (98-0431-B) is the all-new, stock-spec replacement for a cracked, line-bored, or worn-out original. Same lightweight AS41 magnesium alloy the factory used on late Type 1 engines, cast fresh — not a used core hoping to survive another rebuild.

Features

• All-new AS41 magnesium alloy casting — the lightest production-spec case material
• Stock 85.5mm cylinder bore and standard main bearing size — a true stock rebuild foundation
• Dual-relief oiling, 8mm case-stud threads — universal stock configuration
• Brand-new machining throughout: cam tunnel, main saddles, lifter bores
• Eliminates the risk of building on a fatigued, multiple-time-rebuilt core

Fitment

CONFIRMED: VW Type 1 1200–1600cc stock-displacement builds — Beetle, Super Beetle, Karmann Ghia, Type 3, Bus. Accepts stock 85.5mm cylinders and 8mm case studs. NOT CONFIRMED: big-bore 90.5/92/94mm builds (those need a case bored for the larger spigots), Type 4 engines.

Specifications

• Material: AS41 magnesium alloy, new casting
• Bore: stock 85.5mm | Studs: 8mm | Relief: dual
• Main bearing: standard size
• Part Number: 98-0431-B | UPC: 707924368109
• Country of Origin: Brazil
• Shipping weight: 27 lb

Questions & Answers

Is this a new case or a rebuilt core? All-new casting — not a used core.

What bore does it take? Stock 85.5mm cylinders; it is not bored for big-bore barrels.

Aluminum or magnesium? AS41 magnesium alloy — lighter than aluminum, the factory late-model material.

What stud size? 8mm case studs, dual relief.

What's the part number? EMPI 98-0431-B (UPC 707924368109).

Are you an authorized dealer? Yes — Washburn's Metal is an authorized EMPI dealer.
