EMPI HD Bubble-Top Engine Case — 94mm Bore, 8mm Studs | VW Type 1 Air-Cooled (98-0467-B)

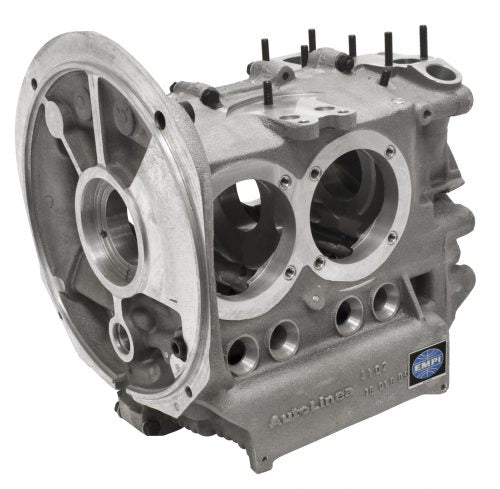

An 8mm-stud 94mm case is the budget-conscious way into a big-bore Type 1 — all the displacement of a 94mm build without stepping up to 10mm studs. EMPI's HD bubble-top aluminum case (98-0467-B) is an all-new casting machined for 94mm cylinders, with the original 8mm case-stud threads retained.

Features

• All-new heavy-duty aluminum bubble-top casting
• Machined for 94mm cylinder spigots — ready for big-bore barrels
• 8mm case-stud threads — uses standard 8mm studs (not drilled to 10mm)
• Extra material in the upper case for strength under load
• Fresh machining throughout — cam tunnel, mains, lifter bores

Fitment

CONFIRMED: VW Type 1 94mm big-bore builds using 8mm case studs — 1914cc and 94mm stroker combinations. Beetle, Super Beetle, Karmann Ghia, Type 3, Bus. NOT CONFIRMED: builds requiring 10mm studs (use the 10mm-stud case), stock 85.5mm or 90.5/92mm builds, Type 4 engines.

Specifications

• Material: heavy-duty aluminum, bubble-top, new casting
• Bore: machined for 94mm | Studs: 8mm
• Part Number: 98-0467-B | UPC: 707924424966
• Country of Origin: Brazil
• Shipping weight: 45.5 lb

Questions & Answers

What cylinder size does it take? Machined for 94mm barrels.

8mm or 10mm studs? 8mm — if you want 10mm clamping, choose the 10mm-stud case.

Is it drilled for full-flow? This version is the 8mm-stud case; confirm full-flow drilling needs against your build.

New or rebuilt? All-new casting.

What's the part number? EMPI 98-0467-B (UPC 707924424966).

Are you an authorized dealer? Yes — Washburn's Metal is an authorized EMPI dealer.
