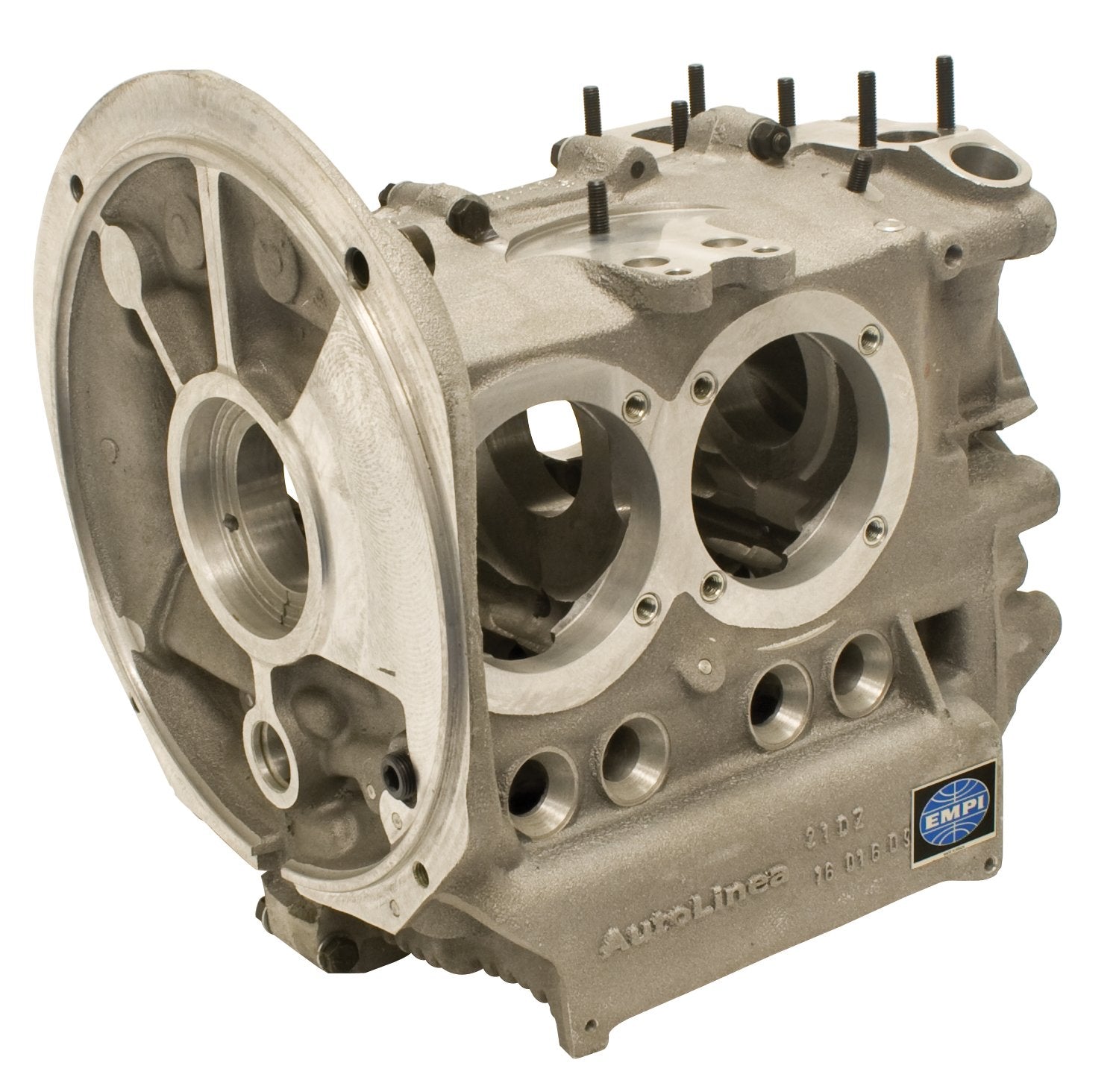

EMPI HD Bubble-Top Engine Case — 94mm Bore, Full-Flow Drilled | VW Type 1 Air-Cooled (98-0454-B)

If you're building a 94mm big-bore or stroker motor, you can't run it in a stock case — the cylinder spigots have to be cut for the larger barrels. EMPI's HD bubble-top aluminum case (98-0454-B) is all-new, machined for 94mm cylinders and already drilled and tapped for full-flow oiling. It's the proper foundation for a 1914cc, 2110cc, or 2276cc build.

Features

• All-new heavy-duty aluminum casting — stronger and more heat-stable than magnesium for high-output builds
• Bubble-top design adds material in the high-stress upper case area
• Machined for 94mm cylinder spigots — ready for big-bore and stroker barrels
• Drilled and tapped for full-flow oil — no extra machine work to plumb an external filter/cooler
• 8mm case-stud threads

Fitment

CONFIRMED: VW Type 1 big-bore / stroker builds running 94mm cylinders — 1914cc (94×69), 2110cc and 2276cc (94×82 with an 82mm crank). Beetle, Super Beetle, Karmann Ghia, Type 3, Bus. NOT CONFIRMED: stock 85.5mm or 90.5/92mm builds (use the matching bore case), Type 4 engines.

Specifications

• Material: heavy-duty aluminum, bubble-top, new casting
• Bore: machined for 94mm | Studs: 8mm
• Oiling: full-flow drilled and tapped
• Part Number: 98-0454-B | UPC: 707924368130
• Country of Origin: Brazil
• Shipping weight: 44.8 lb

Questions & Answers

What size cylinders does it take? Machined for 94mm bore barrels.

Is it ready for full-flow oil? Yes — it's drilled and tapped for full-flow; no extra machining needed.

Aluminum or magnesium? Heavy-duty aluminum — preferred for high-output big-bore and stroker motors.

Will it fit a 90.5/92mm build? No — use the 90.5/92mm-bore case for those.

What's the part number? EMPI 98-0454-B (UPC 707924368130).

Are you an authorized dealer? Yes — Washburn's Metal is an authorized EMPI dealer.
