EMPI Piston & Cylinder Set | VW Type 1 Air-Cooled | 90.5mm × 82mm, 2110cc Stroker (98-1953-B)

EMPI Piston & Cylinder Set — 90.5mm × 82mm, 2110cc Stroker | VW Type 1 (98-1953-B)

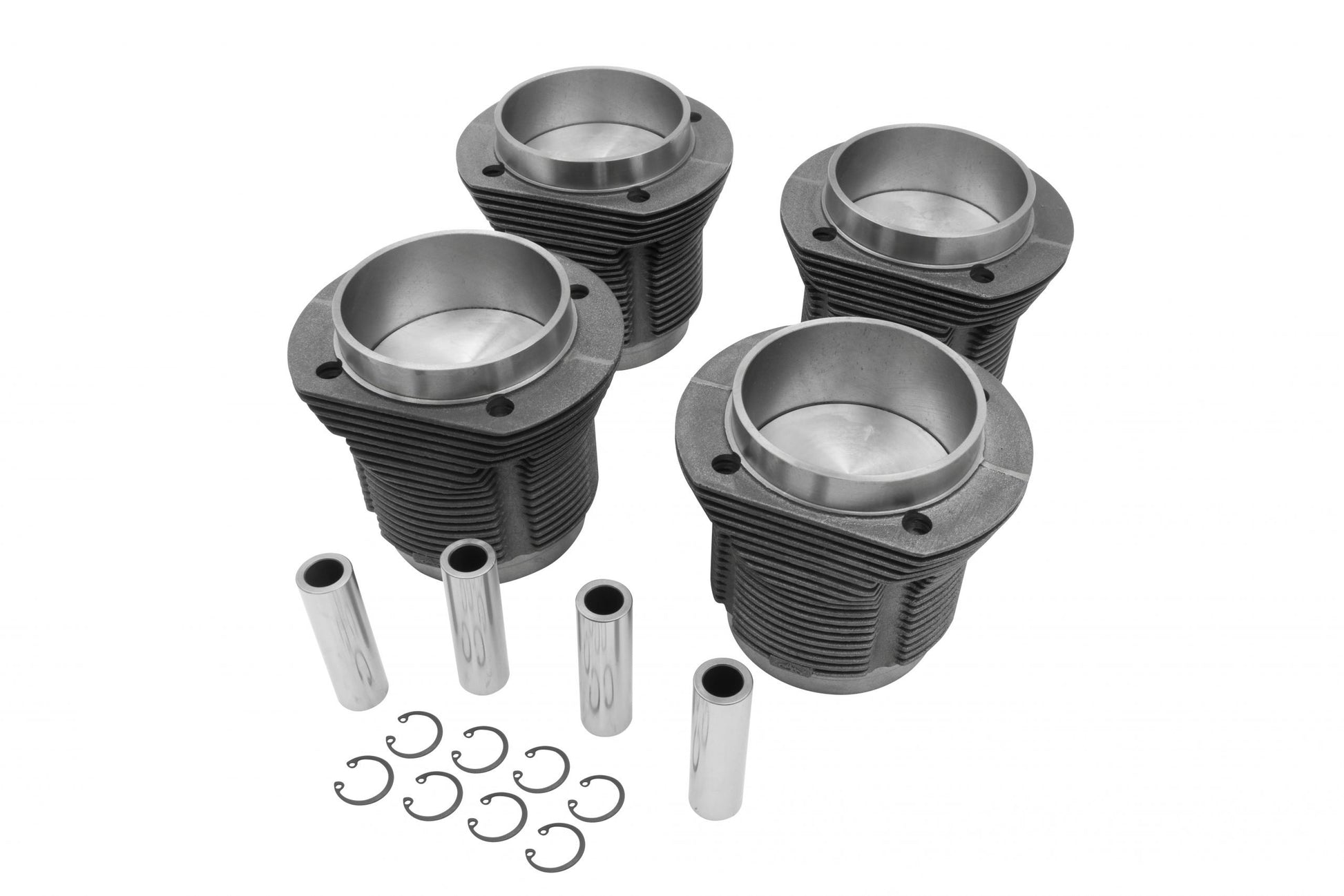

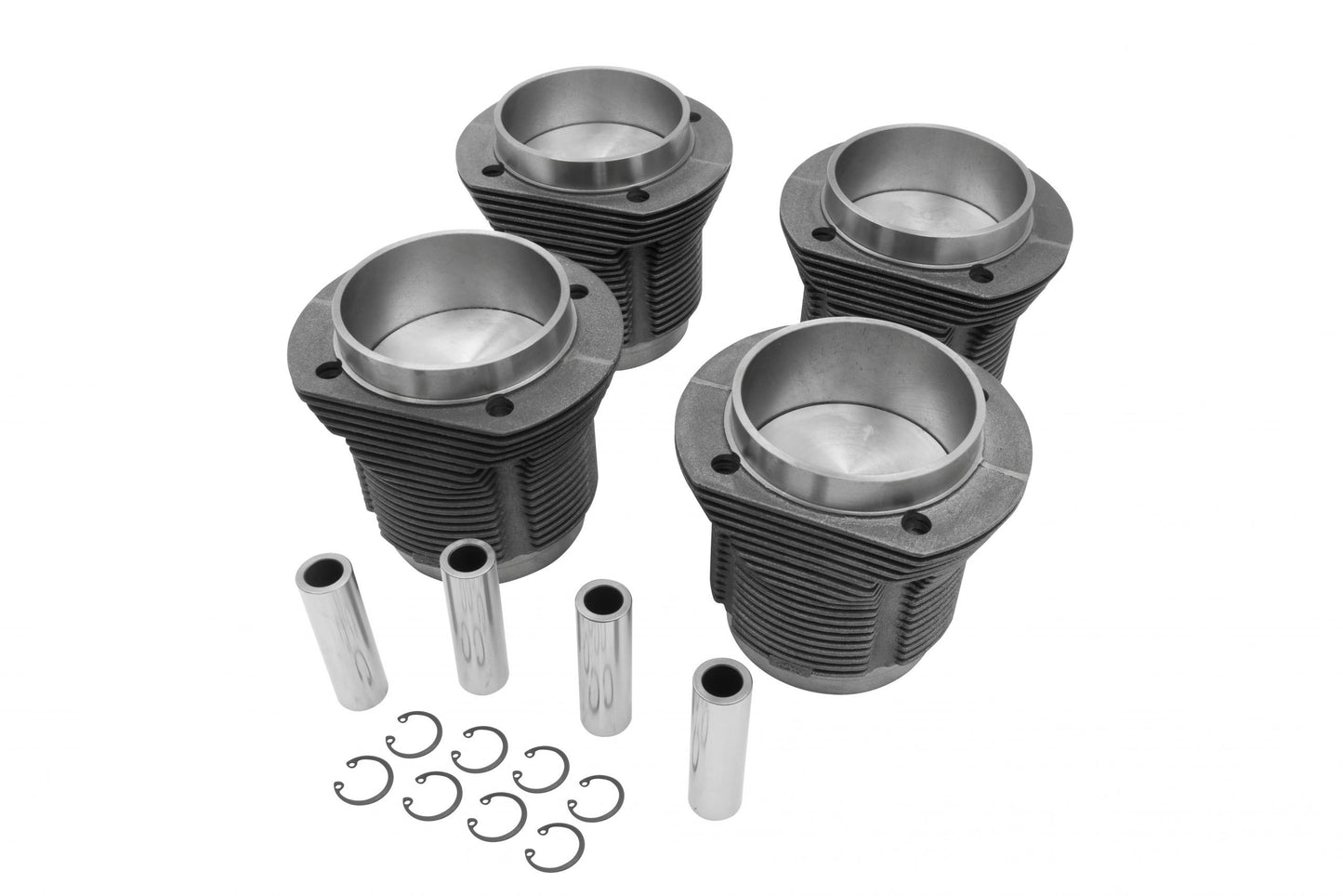

EMPI's 90.5mm × 82mm piston and cylinder set (98-1953-B) is a 2110cc stroker on a 90.5mm bore. It's a complete matched set of four for a VW Type 1 engine — pistons, cylinders, rings, wrist pins and clips, sized together.

Vehicle Fitment

• VW Type 1 Air-Cooled: Beetle, Super Beetle, Karmann Ghia, Bus (Type 2), Type 3 (Squareback, Fastback, Notchback)

Pairs with an 82mm stroker crank; the case must be clearanced for the 82mm stroke and machined for the bore. Not confirmed: Type 4 / 914 engines (different bore spacing and case).

Key Features & Benefits

• 2110cc stroker: 90.5mm bore × 82mm stroke
• Matched set of 4: pistons and cylinders sized together for consistent fit
• Complete top-end: includes rings, wrist pins, and clips
• Stroker build: pairs with an 82mm stroker crank

Technical Specifications

• Bore: 90.5mm
• Stroke: 82mm
• Displacement: 2110cc
• Quantity: set of 4 (pistons + cylinders)
• Includes: rings, wrist pins, clips
• Brand: EMPI
• Part Number: 98-1953-B
• UPC: 707924433357

Frequently Asked Questions

• Does this fit my air-cooled VW Type 1? Yes — once the case is machined for this bore where required.
• Do I need a stroker crank? Yes — this is a stroker set; pair it with an 82mm stroker crank.
• What's included? A complete set for one engine: 4 cylinders, 4 pistons, rings, wrist pins, and clips.
• What's the part number? EMPI 98-1953-B (UPC 707924433357).
