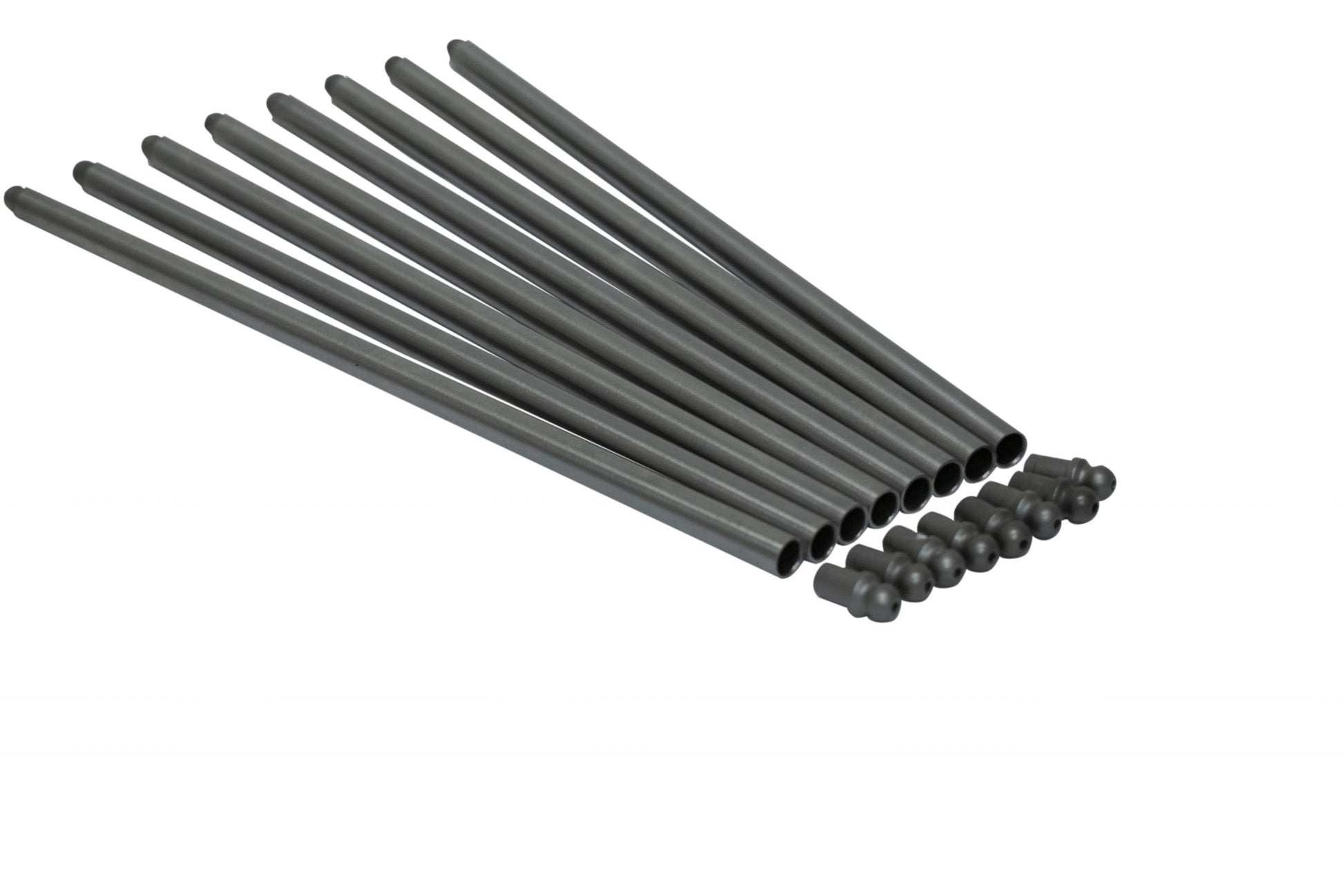

Manton 4130 Chromoly Pushrods — Series 1, .035" Wall, 11.5" OAL, Cut-to-Length | VW Air-Cooled (00-4022-0)

Manton 4130 Chromoly Pushrods — Series 1 / Thin Wall (0.035"), 11.500" OAL, Cut-to-Length — VW Air-Cooled (00-4022-0)

Manton Series 1 4130 chromoly pushrod blanks for air-cooled VW engines. The thinner-wall option in Manton's lineup — designed for stock-to-mild builds running standard single valve springs. Lighter than the .058" wall version, which means less reciprocating mass for faster valvetrain response, at the cost of resistance to bending under high spring pressure.

Vehicle Fitment

• VW Type 1 (Beetle, Bus, Karmann Ghia, Thing, Type 3, Baja, Buggy, Sand Rail): stock to mild performance builds
• Cylinder heads: for engines running stock or single valve springs
• Step up if needed: running dual valve springs, a high-lift cam, or sustained high RPM? Choose the .058" wall version (EMPI 00-4032-0) instead

Why Choose Manton?

Manton has been making valvetrain components for high-performance air-cooled engines for over 40 years. Their VW pushrods are the standard reference for serious engine builders — known for straightness, consistent wall tolerance, and tip retention that holds up under high spring pressure.

Key Features & Benefits

• 4130 chromoly construction: 140,000 PSI tensile strength for high-performance valvetrains
• Lightweight Series 1: thinner .035" wall means less reciprocating mass for faster valvetrain response
• Cut-to-length blanks: 11.500" OAL lets you trim to your engine's exact geometry
• Complete engine set: sold as a set of 8

Technical Specifications

• EMPI Part #: 00-4022-0
• Material: 4130 chromoly tubing
• Diameter: 3/8"
• Wall thickness: 0.035"
• Overall length: 11.500" (292.1 mm) with tips installed
• Tensile strength: 140,000 PSI
• Tips: heat-treated carbon steel ball tips, 5/16" diameter
• UPC: 707924385137
• Sold as: set of 8 (one full engine)

Frequently Asked Questions

• Are these pushrods cut to length? No — they ship un-cut and un-assembled at 11.500" OAL so you can trim them to your engine's geometry. Stock VW pushrod length is ~10", giving you up to about 1" of trim.
• How many pushrods are in a set? Eight — one full engine.
• 0.035" wall or 0.058" wall — which do I need? The 0.035" wall (this set) is for stock-to-mild builds with single valve springs. For the other build type, use the 0.058" wall version (EMPI 00-4032-0).

Installation

These pushrods ship un-cut and un-assembled. Stock VW pushrod length is ~10" — the 11.500" blanks give you up to about 1" of trim length to dial in geometry on built engines with custom rocker geometry, oversized cam followers, decked cases, or stroker cranks.

1. Use a pushrod length checker (adjustable measurement tool) to determine final length.
2. Cut the blank to length and de-burr the cut end.
3. Press the ball tips in.
