EMPI Aluminum Full-Flow Oil Pump Kit — 1971+ Dish Cam | VW Type 1 Air-Cooled (16-9717-0)

EMPI Aluminum Full-Flow Oil Pump Kit — 1971+ Dish Cam, 32mm Gears (16-9717-0)

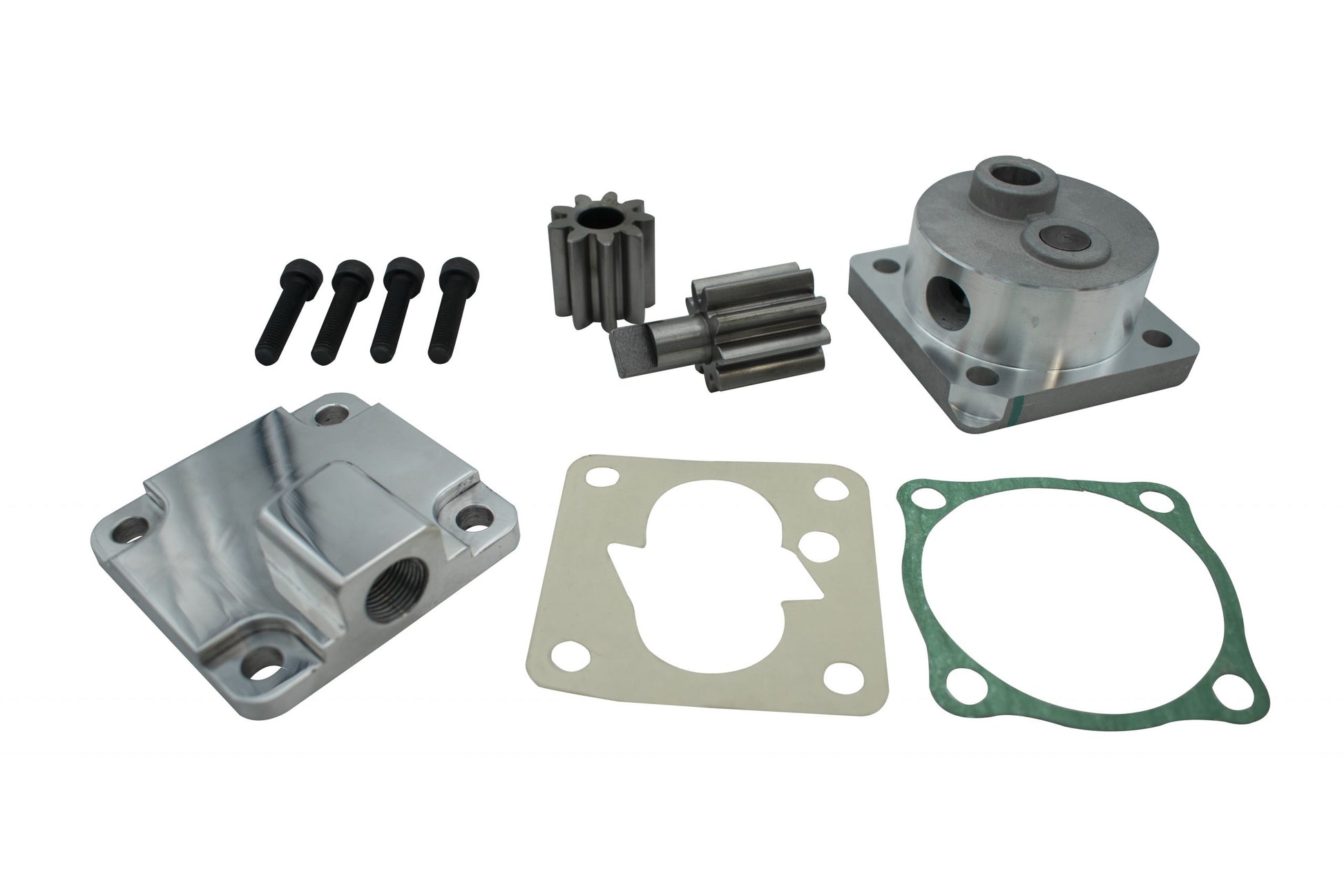

Oil pressure is what keeps an air-cooled motor alive, and the stock pump is the weak link the moment you add displacement or RPM. This is EMPI's aluminum full-flow oil pump kit (16-9717-0) for 1971-and-later Type 1 engines with the dished cam gear — high-capacity 32mm gears that move more oil, with a billet full-flow cover so you can plumb an external cooler and filter.

Vehicle Fitment

• VW Beetle: Type 1, 1971 and later, dished/late cam gear
• VW Super Beetle: Type 1, 1971 and later, dished/late cam gear
• VW Karmann Ghia: Type 1, 1971 and later, dished/late cam gear
• VW Type 3: Type 1, 1971 and later, dished/late cam gear
• VW Bus: Type 1, 1971 and later, dished/late cam gear
• VW Thing/181: Type 1, 1971 and later, dished/late cam gear

Key Features & Benefits

• High-capacity 32mm gears: more pressure, flow and volume than stock
• Polished billet aluminum full-flow cover: included, with a 3/8 NPT threaded boss
• Hardware included: 8mm Allen-head cap-screw bolts and gaskets
• Full-flow ready: routes oil out to an external filter/cooler and back
• Late cam gear: fits 1971-and-later engines using the dished cam gear

Technical Specifications

• Gears: 32mm, high-capacity
• Cover: polished billet aluminum, full-flow, 3/8 NPT boss
• Cam gear: dished (1971 and later)
• Includes: pump, cover, 8mm cap-screw bolts, gaskets
• Brand: EMPI
• Part Number: 16-9717-0
• UPC: 707924423013
• Country of Origin: China

Frequently Asked Questions

• Does it fit a 1971-and-later 1600? Yes — it's built for the dished/late cam gear used from 1971 on.
• Will it fit a pre-1971 engine? No — early flat-cam-gear engines need the thru-'70 version.
• Does it include the full-flow cover? Yes — the billet aluminum full-flow cover with a 3/8 NPT boss is included.
• Do I need to modify anything? For full-flow, the pump and case must be tapped and plugged for the external lines; plugs aren't included.
• What's the part number? EMPI 16-9717-0 (UPC 707924423013).

Installation

• For a 1971-and-later full-flow setup, the pump and case must be tapped and plugged for the external lines — plugs not included.
