EMPI Piston & Cylinder Set | VW Type 1 Air-Cooled | 87mm × 69mm 1641cc (98-1986-B)

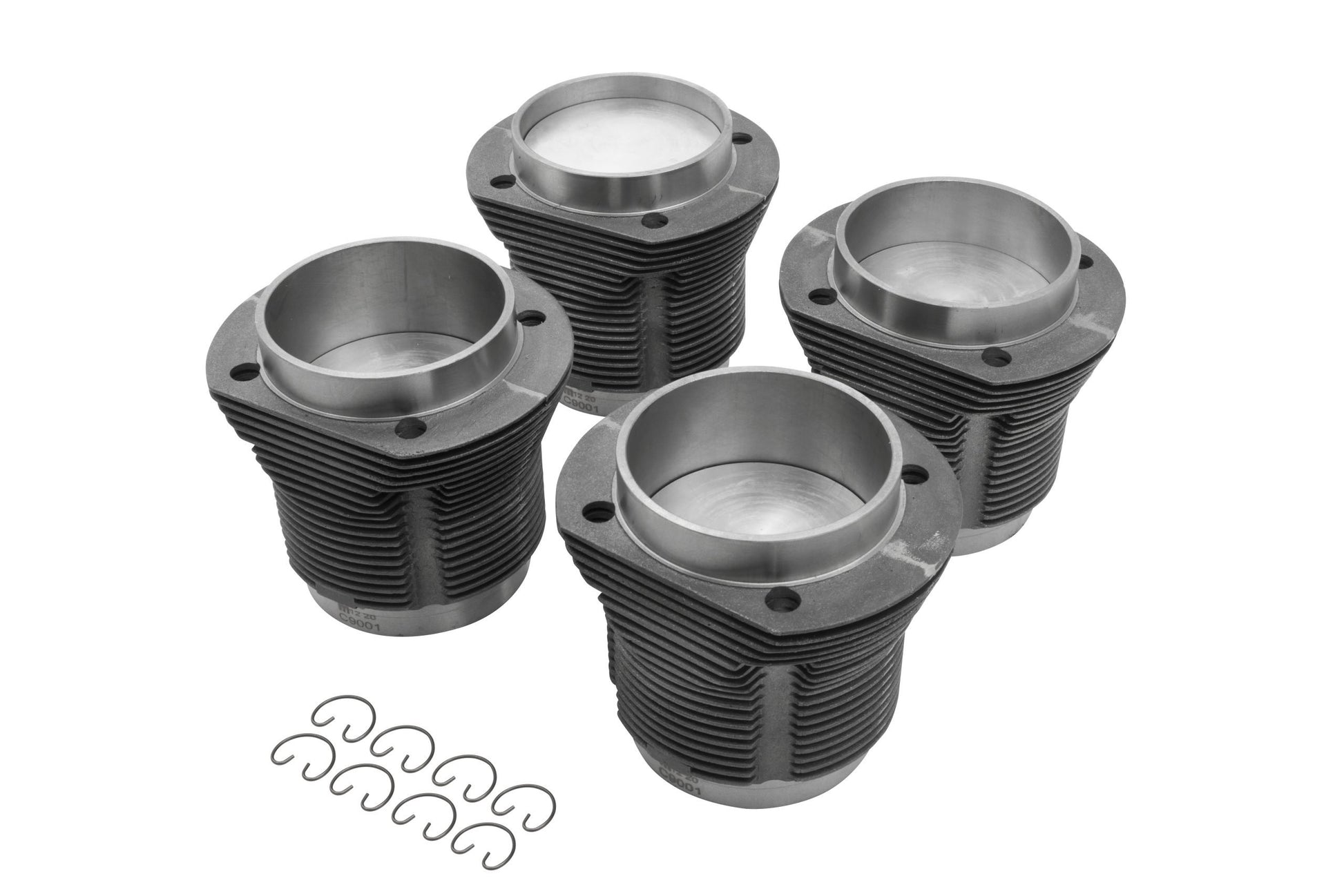

EMPI Piston & Cylinder Set — 87mm × 69mm Stroke, 1641cc | VW Type 1 Air-Cooled (98-1986-B)

1641cc is the classic slip-in big-bore for a Type 1, and this EMPI 87mm × 69mm set (98-1986-B) is the standard cast version — a simple, proven way to add displacement without machining the case.

Vehicle Fitment

• VW Beetle: All years, air-cooled Type 1 engine.
• VW Super Beetle: All years, air-cooled Type 1 engine.
• VW Karmann Ghia: All years, air-cooled Type 1 engine.
• VW Bus (Type 2): All years, air-cooled Type 1 engine.
• VW Type 3 (Squareback, Fastback, Notchback): All years, air-cooled Type 1 engine.

Why Choose EMPI?

This EMPI set uses quality cast pistons and cylinders for a proven, economical rebuild — a simple way to add displacement without machining the case.

Key Features & Benefits

• Displacement: 87mm bore × 69mm stroke = 1641cc displacement
• Quality castings: quality cast pistons and cylinders — a proven, economical rebuild set
• Complete set of 4: cylinders, pistons, rings, wrist pins, and clips
• Crank: Runs the stock 69mm crank

Technical Specifications

• Bore: 87mm
• Stroke: 69mm
• Displacement: 1641cc
• Piston: Cast aluminum alloy
• Cylinder: Cast iron
• Sold as: Complete set of 4 (includes rings, pins, clips)
• Brand: EMPI
• Part Number: 98-1986-B
• UPC: 707924433869

Frequently Asked Questions

• Does this fit my air-cooled VW Type 1? Yes — Beetle, Super Beetle, Karmann Ghia, Bus (Type 2), and Type 3, with the case machined for this bore where required.
• Are these forged or cast pistons? Standard cast pistons — the proven choice for street rebuilds and mild big-bore builds.
• Do I need a stroker crank? No — it runs the stock 69mm crank.
• What's included? A complete set for one engine: 4 cylinders, 4 pistons, rings, wrist pins, and clips.
• What's the part number? EMPI 98-1986-B (UPC 707924433869).

Installation

• Slip-in on a standard case machined for this bore — no special case work required.
