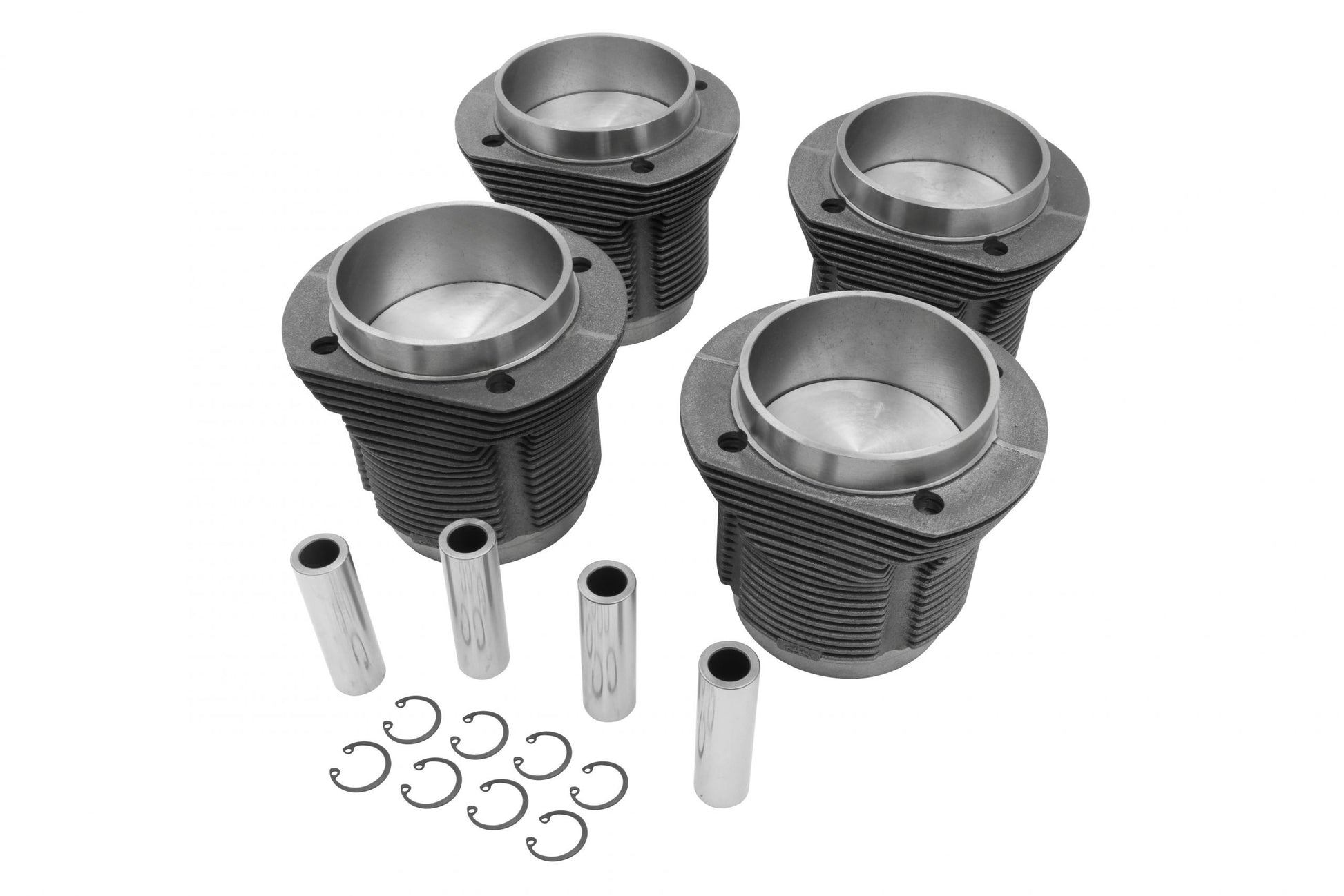

EMPI Piston & Cylinder Set | VW Type 1 Air-Cooled | 88mm × 69mm, 1700cc Slip-In (98-1950-B)

EMPI Piston & Cylinder Set — 88mm × 69mm, 1700cc Slip-In (98-1950-B)

EMPI's 88mm × 69mm piston and cylinder set (98-1950-B) is a slip-in 1700 that adds displacement with no machine work. A complete matched set of four for a VW Type 1 engine, with pistons, cylinders, rings, wrist pins and clips.

Vehicle Fitment

• VW Beetle: All years
• VW Super Beetle: All years
• VW Bus (Type 2): All years
• VW Karmann Ghia: All years
• VW Type 3: All years

Note: Slip-in on a standard case machined for this bore — no special case work required. Not confirmed for Type 4 / 914 engines (different bore spacing and case).

Key Features & Benefits

• 88mm bore × 69mm stroke = 1700cc displacement
• Matched set of 4: pistons and cylinders sized together
• Complete top-end set: includes rings, wrist pins, and clips
• Runs the stock crank

Technical Specifications

• Bore: 88mm
• Stroke: 69mm
• Displacement: 1700cc
• Quantity: set of 4 (pistons + cylinders)
• Includes: rings, wrist pins, clips
• Brand: EMPI
• Part Number: 98-1950-B
• UPC: 707924433326

Frequently Asked Questions

• Does this fit my air-cooled VW Type 1? Yes — once the case is machined for this bore where required.
• Do I need a stroker crank? No — it runs the stock crank.
• What's included? A complete set for one engine: 4 cylinders, 4 pistons, rings, wrist pins, and clips.
• What's the part number? EMPI 98-1950-B (UPC 707924433326).

Explore Related Categories

Build or rebuild your air-cooled motor with the rest of our catalog: Engine, Engine Parts, and All VW Air-Cooled.
