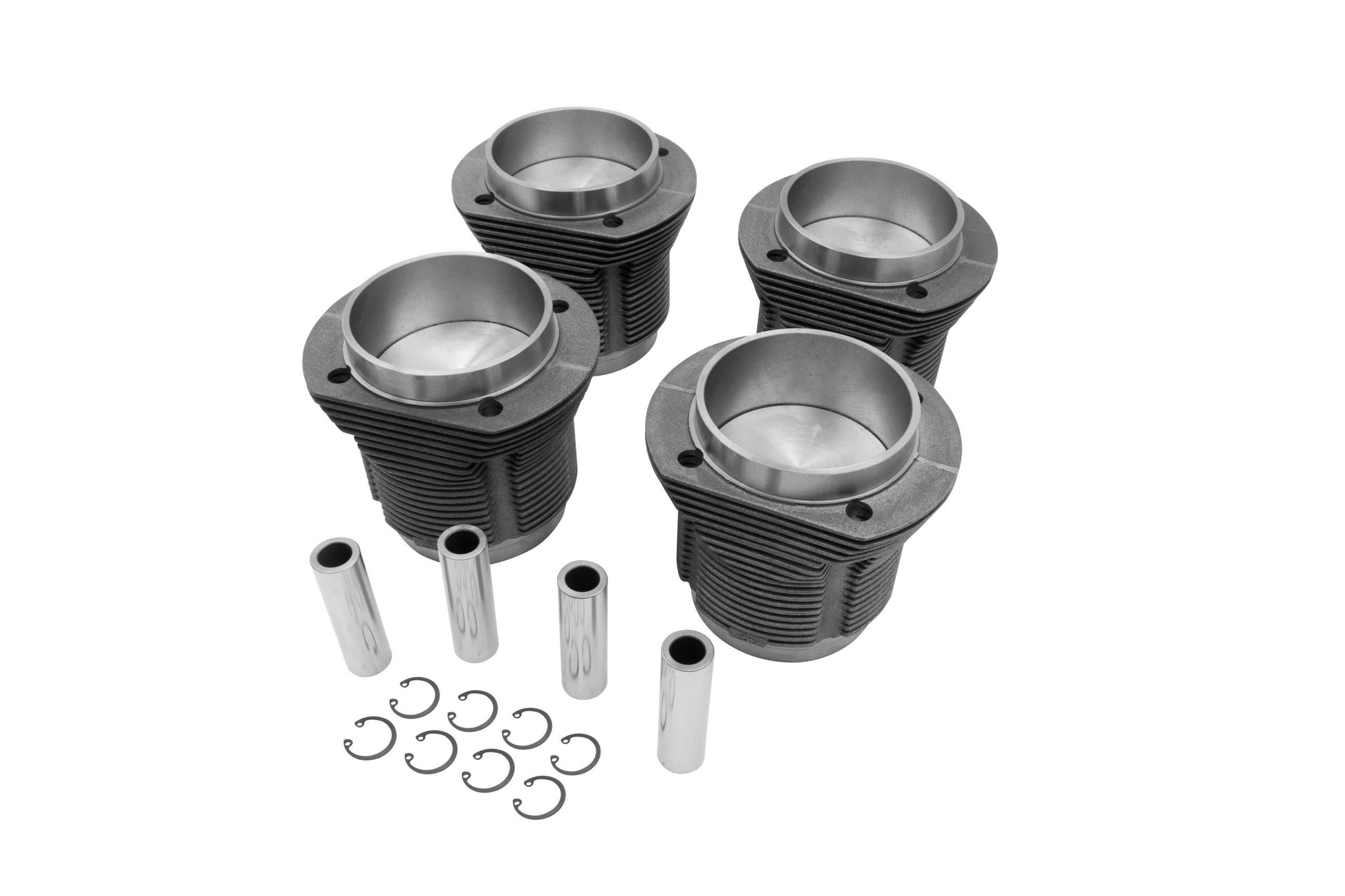

EMPI Piston & Cylinder Set — 92mm × 69mm Stroke, 1835cc Thick-Wall Machine-In | VW Type 1 (98-1958-B)

EMPI Piston & Cylinder Set — 92mm × 69mm, 1835cc Thick-Wall Machine-In (98-1958-B)

1835cc is the most popular displacement bump for a Type 1, and this is EMPI's thick-wall machine-in version (98-1958-B) — 92mm cylinders with extra wall material for more strength and cooling surface than a standard 92mm slip-in set. The hypereutectic high-silicon-alloy pistons run with minimal expansion for long service life. This is a machine-in set: your case and heads must be cut for 94mm to clear the thicker cylinders.

Vehicle Fitment

• VW Beetle: Type 1 air-cooled
• VW Super Beetle: Type 1 air-cooled
• VW Karmann Ghia: Type 1 air-cooled
• VW Bus (Type 2): Type 1 air-cooled
• VW Type 3: Squareback, Fastback, Notchback

Key Features & Benefits

• 1835cc displacement: 92mm bore × 69mm stock stroke
• Thick-wall cast-iron cylinders: stronger and cooler-running than a standard 92mm slip-in
• Hypereutectic pistons: high silicon content for low thermal expansion
• Complete set of 4: cylinders, pistons, rings, wrist pins, and clips
• Runs the stock 69mm crank: no stroker crank required

Technical Specifications

• Bore: 92mm
• Stroke: 69mm
• Displacement: 1835cc
• Piston: hypereutectic aluminum alloy, high silicon
• Cylinder: cast iron, thick-wall (machine-in)
• Sold as: complete set of 4 (includes rings, pins, clips)
• Brand: EMPI
• Part Number: 98-1958-B

Frequently Asked Questions

• Does this fit my air-cooled VW Type 1? Yes — Beetle, Super Beetle, Karmann Ghia, Bus (Type 2), and Type 3, with the case machined for 92mm and heads cut for 94mm.
• Are these forged or cast pistons? Hypereutectic cast pistons — high-silicon alloy for low expansion and long service life. (For forged pistons in this displacement, see the Mahle forged 92×69 set, 98-1992-B.)
• Is this a slip-in or machine-in set? Machine-in — the thick walls require the case cut for 92mm and the heads cut for 94mm.
• Do I need a stroker crank? No — it runs the stock 69mm crank.
• What's the part number? EMPI 98-1958-B.

Installation

• Machine-in set: the case must be machined for 92mm and the heads cut for 94mm to clear the thick-wall cylinders. This is not a slip-in.

Explore Related Categories

Engine · Engine Parts · All VW Air-Cooled
