Mahle Forged Piston & Cylinder Set | VW Type 1 Air-Cooled | 94mm × 69mm 1914cc (98-1994-B)

Mahle Forged Piston & Cylinder Set — 94mm × 69mm Stroke, 1914cc | VW Type 1 Air-Cooled (98-1994-B)

The 1914cc big-bore is one of the most popular ways to wake up a Type 1, and this Mahle forged 94mm × 69mm set (98-1994-B) is the forged-piston version for any build where detonation, heat, or high cylinder pressure would punish a cast slug.

Vehicle Fitment

• VW Beetle: All years, air-cooled Type 1 engine.
• VW Super Beetle: All years, air-cooled Type 1 engine.
• VW Karmann Ghia: All years, air-cooled Type 1 engine.
• VW Bus (Type 2): All years, air-cooled Type 1 engine.
• VW Type 3 (Squareback, Fastback, Notchback): All years, air-cooled Type 1 engine.

Why Choose Mahle?

Mahle forged pistons are forged, not cast, for strength under heat, boost, and nitrous — built for high-output street, race, and off-road use.

Key Features & Benefits

• Displacement: 94mm bore × 69mm stroke = 1914cc displacement
• Forged pistons: Mahle forged pistons — forged, not cast, for strength under heat, boost, and nitrous
• Thick cylinder walls: extra-thick cylinder walls for added strength and cooling surface

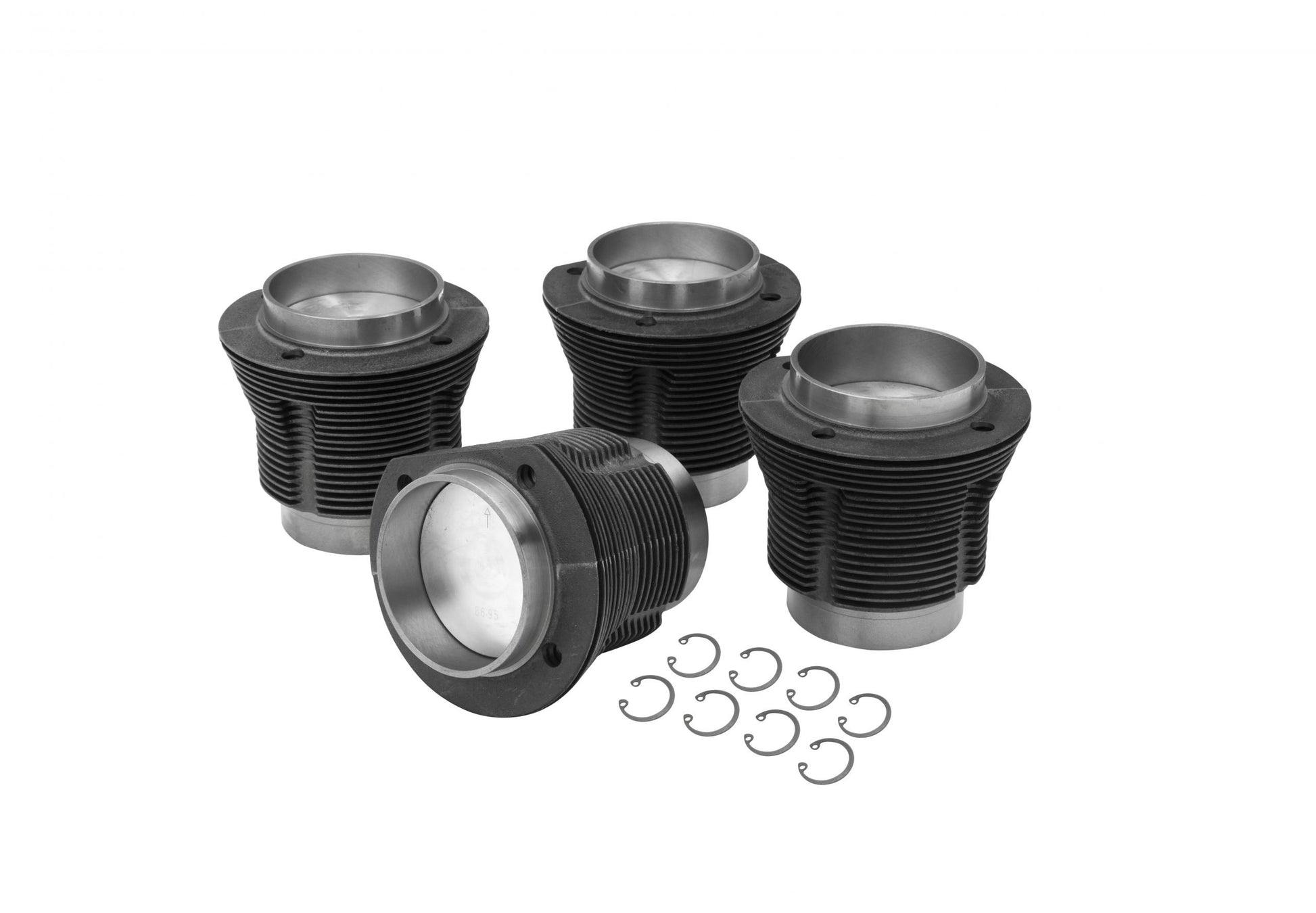

• Complete set of 4: cylinders, forged pistons, rings, wrist pins, and clips
• Crank: Runs the stock 69mm crank — no stroker crank required

Technical Specifications

• Bore: 94mm
• Stroke: 69mm
• Displacement: 1914cc
• Piston: Mahle forged aluminum alloy
• Cylinder: Cast iron, extra-thick wall
• Sold as: Complete set of 4 (includes rings, pins, clips)
• Brand: Mahle (distributed by EMPI)
• Part Number: 98-1994-B

Frequently Asked Questions

• Does this fit my air-cooled VW Type 1? Yes — it fits Beetle, Super Beetle, Karmann Ghia, Bus (Type 2), and Type 3 engines once the case (and heads, where required) are machined for this bore.
• Are these forged or cast pistons? Forged — Mahle forged pistons, built for high-output street, race, and off-road use.
• Do I need a stroker crank? No — it runs the stock 69mm crank.
• What's included? A complete set for one engine: 4 cylinders, 4 forged pistons, rings, wrist pins, and clips.
• What's the part number? 98-1994-B.

Installation

• Machining required: case and heads must be cut for 94mm. This is not a slip-in set.
• For best results, use Teflon/poly piston-pin retainer buttons.
