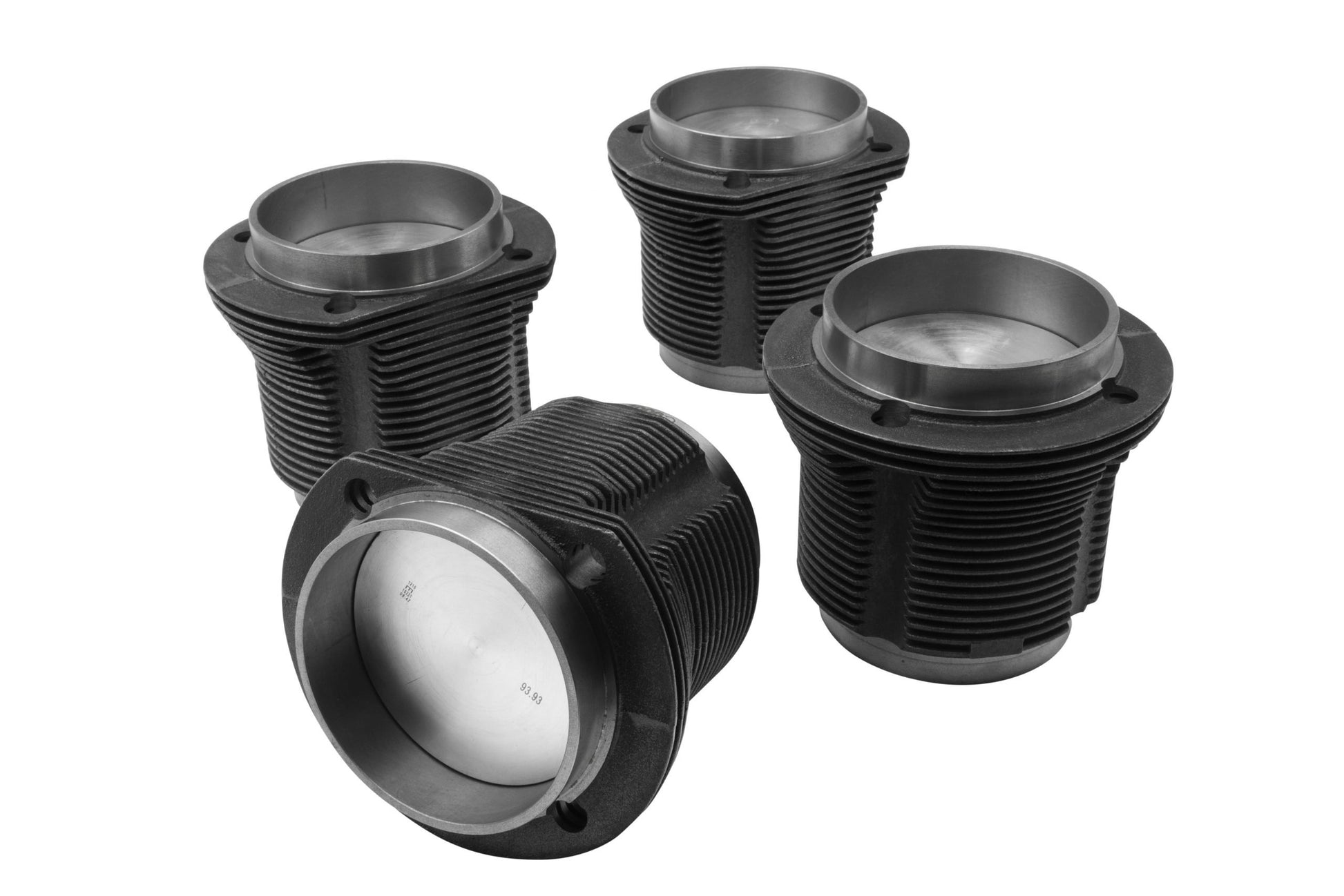

Mahle Forged Piston & Cylinder Set | VW Type 1 | 94mm × 82mm 2276cc Stroker (98-1995-B)

Mahle Forged Piston & Cylinder Set — 94mm × 82mm Stroke, 2276cc Stroker | VW Type 1 (98-1995-B)

When you're building the ultimate street-or-strip 2276cc stroker, cast pistons are the weak link — this Mahle forged 94mm × 82mm set (98-1995-B) is the big-inch answer that survives the heat, boost, and cylinder pressure that crack lesser pistons.

Vehicle Fitment

• VW Beetle: All years, air-cooled Type 1 engine.
• VW Super Beetle: All years, air-cooled Type 1 engine.
• VW Karmann Ghia: All years, air-cooled Type 1 engine.
• VW Bus (Type 2): All years, air-cooled Type 1 engine.
• VW Type 3 (Squareback, Fastback, Notchback): All years, air-cooled Type 1 engine.

Why Choose Mahle?

Mahle forged pistons are forged, not cast, for strength under heat, boost, and nitrous — built for high-output street, race, and off-road use.

Key Features & Benefits

• Displacement: 94mm bore × 82mm stroke = 2276cc displacement
• Forged pistons: Mahle forged pistons — forged, not cast, for strength under heat, boost, and nitrous
• Thick cylinder walls: extra-thick cylinder walls for added strength and cooling surface
• Complete set of 4: cylinders, forged pistons, rings, wrist pins, and clips
• Crank: Pairs with an 82mm stroker crank (e.g. the 4340 unit, 00-8182-0)

Technical Specifications

• Bore: 94mm
• Stroke: 82mm
• Displacement: 2276cc
• Piston: Mahle forged aluminum alloy
• Cylinder: Cast iron, extra-thick wall
• Sold as: Complete set of 4 (includes rings, pins, clips)
• Brand: Mahle (distributed by EMPI)
• Part Number: 98-1995-B
• UPC: 707924371550

Frequently Asked Questions

• Does this fit my air-cooled VW Type 1? Yes — it fits Beetle, Super Beetle, Karmann Ghia, Bus (Type 2), and Type 3 engines once the case (and heads, where required) are machined for this bore.
• Are these forged or cast pistons? Forged — Mahle forged pistons, built for high-output street, race, and off-road use.
• Do I need a stroker crank? Yes — this is a stroker set; pair it with an 82mm stroker crank.
• What's included? A complete set for one engine: 4 cylinders, 4 forged pistons, rings, wrist pins, and clips.
• What's the part number? 98-1995-B (UPC 707924371550).

Installation

• Machining required: case and heads must be cut for 94mm. This is not a slip-in set.
• For best results, use Teflon/poly piston-pin retainer buttons.
